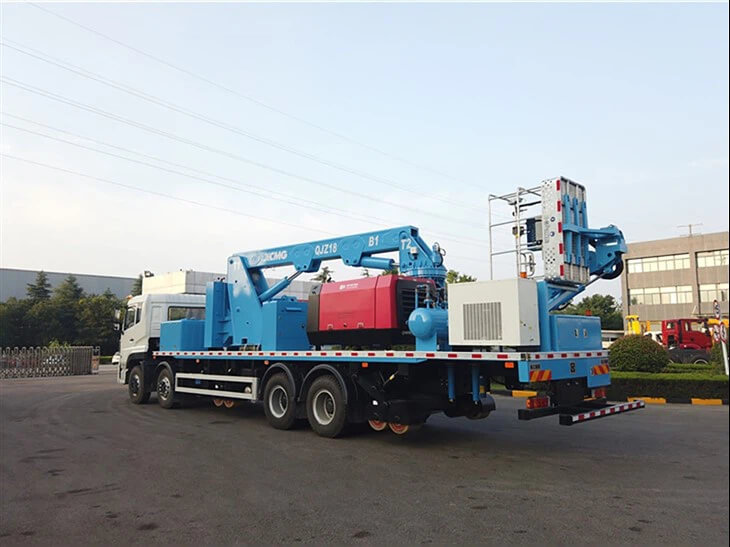

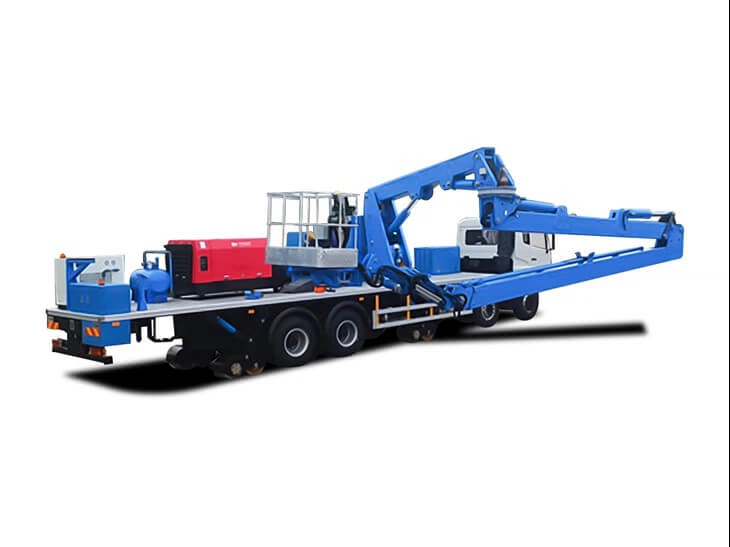

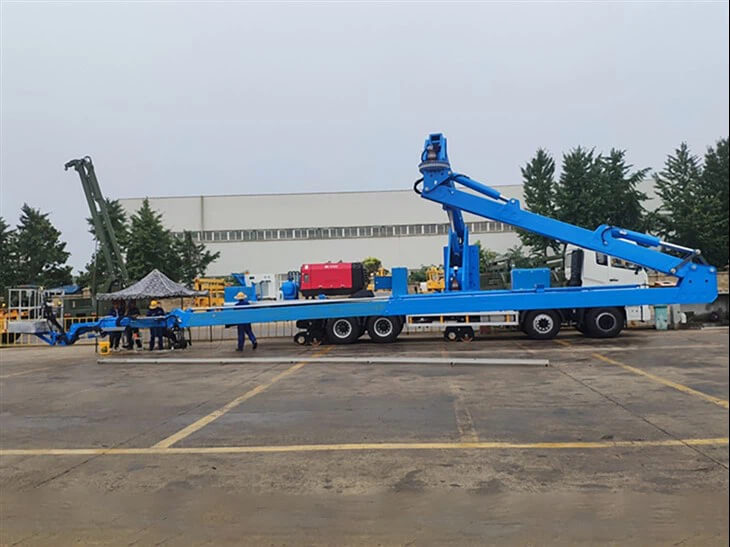

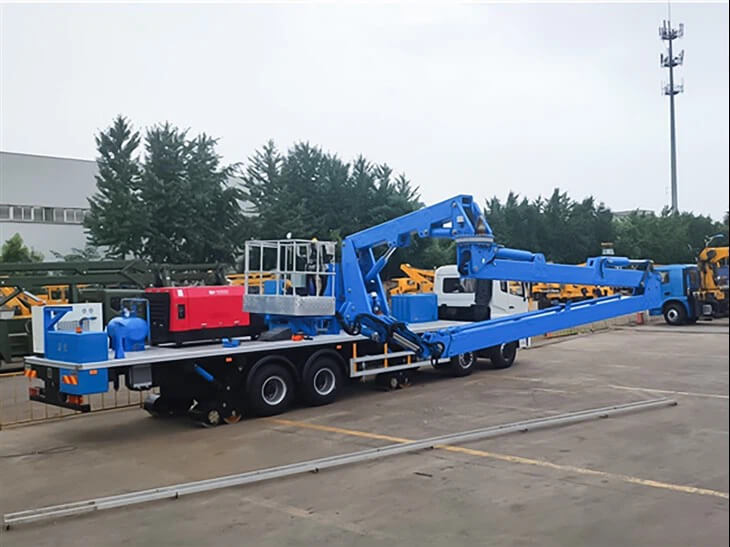

The Bridge Inspection Unit (BIU) is a versatile vehicle equipped with a bridge detector, designed for mobile inspection and maintenance work. The Articulated Bucket Truck comes with a working bucket and provides a safe and stable platform for bridge maintenance personnel to approach the bridge body. The articulated Bucket Truck is 18m in length and provides a reliable and efficient solution for bridge inspection and maintenance needs.

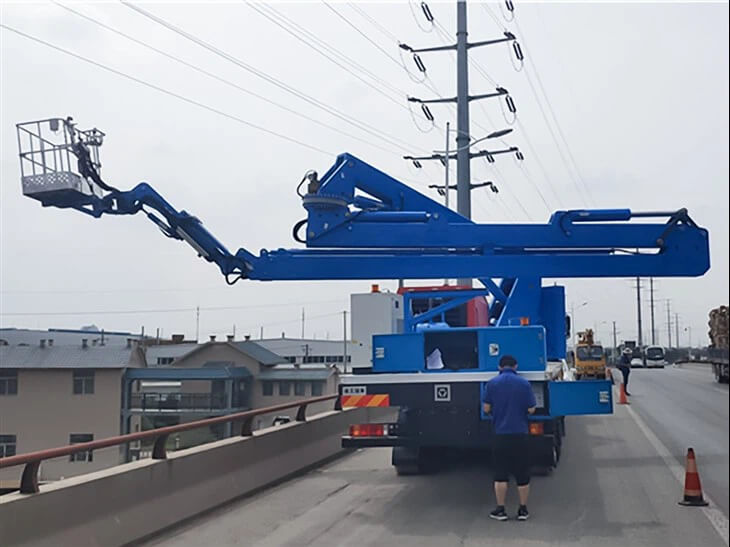

The articulated bucket truck can inspect the underside of the bridge and the upper structure outside, making it a multi-functional articulated bucket truck that can also be used as an aerial work platform. This feature is particularly useful for maintenance work on the upper portions of the bridge that are difficult to access.
The BIU is designed to provide a safe working environment for the personnel involved in bridge inspection and maintenance work. The working bucket has safety features that ensure stability and prevent accidents. The BIU also comes with advanced technology that detects any abnormalities in the bridge structure, enabling quick and accurate diagnosis of any issues.
Overall, the articulated bucket truck's versatility and flexibility make it an ideal choice for mobile inspection and maintenance work.
STANDARD FEATURES:
The dual-power system provides a backup generator, ensuring safety and convenience in case of engine failure. It also powers the bridge maintenance tools.
The load limit system monitors the platform's load in real-time, alerts for overloading, and restricts related hazardous operations to ensure safe detection operations.
The wheeled outrigger design stabilizes the vehicle and allows it to move during the underbridge working process, significantly enhancing efficiency and productivity.
FEATURES STANDARD FEATURES: OPTIONAL FEATURES: SPECIFICATION Model BIU18EQ315L5 Chassis DONGFENG Tianlong 8X4Drive LHD; DONGFENG DDi75S315-50 315hp diesel engine; FAST 12JSD160TA 12 speed manual transmission Cabin Sleeper cab; Rated nr. of passengers: 2 Overall Size 12200×2500×3980mm (L×W×H) Wheelbase 2050+4600+1400mm Wheel Tread Front2040/2040 mm; Rear1860/1860mm Front/Rear Overhang 1500/2682mm Gross Vehicle Weight 31000kg Axle Rating 6500/6500/18000kg(tandem) Approach/Departure Angle 22°/9° Max Speed 90km/Hour Engine DONGFENG DDi75S315-50, diesel engine; 6 cylinders in-line, 7.53L; Class level V emission Engine Output Power 232kW(315hp) Transmission FAST 12JSD160TA MT; Forward, 12 speed/Reverse, 2 speed Tires 11.00R20 16PR,11.00R20 18PR; 12+1 spare tire Inspection Assembly: Make/Model XCGM QJZ18 Max Horizontal Working Range 18m Max Overbridge of Sidewalk 5.4m Max Overcoming Barrier 6.5m Max Crossing Box Girder 6.9m Max Lowering Depth 21.5m Max Reach Overhead 19m Rated Load of Platform 250kg Overall Bucket Dimensions 1.2m*0.8m*1.1m Rotation Range Of 1st Slewing Organization 0-90° Rotation Range Of 2nd Slewing Organization 0-135° Walking Speed ≥13m/min
