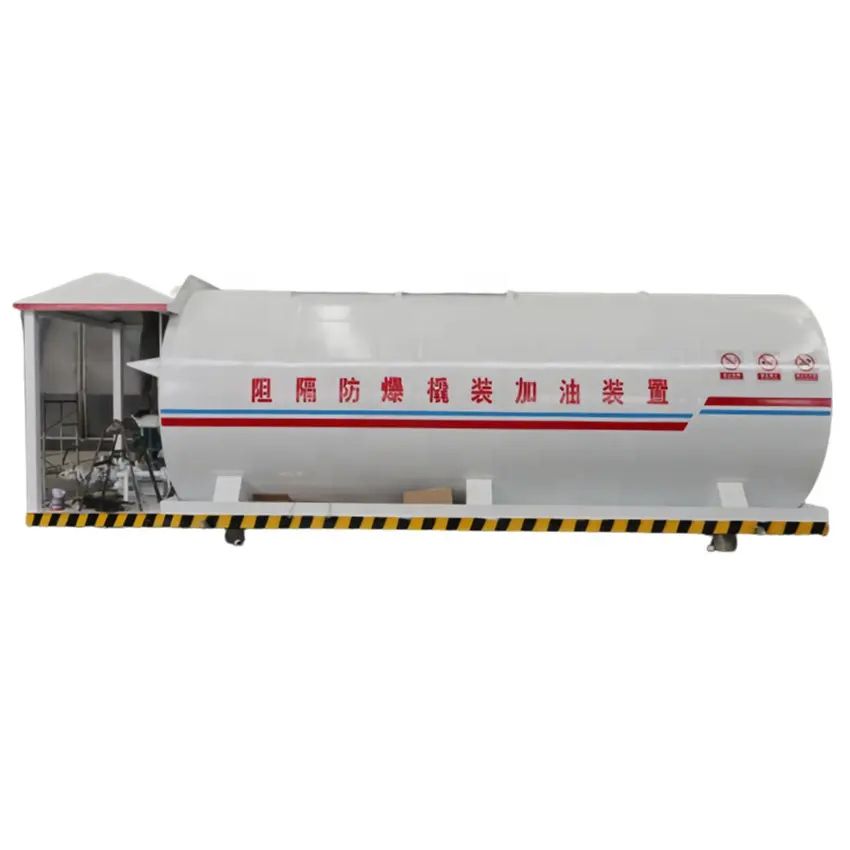

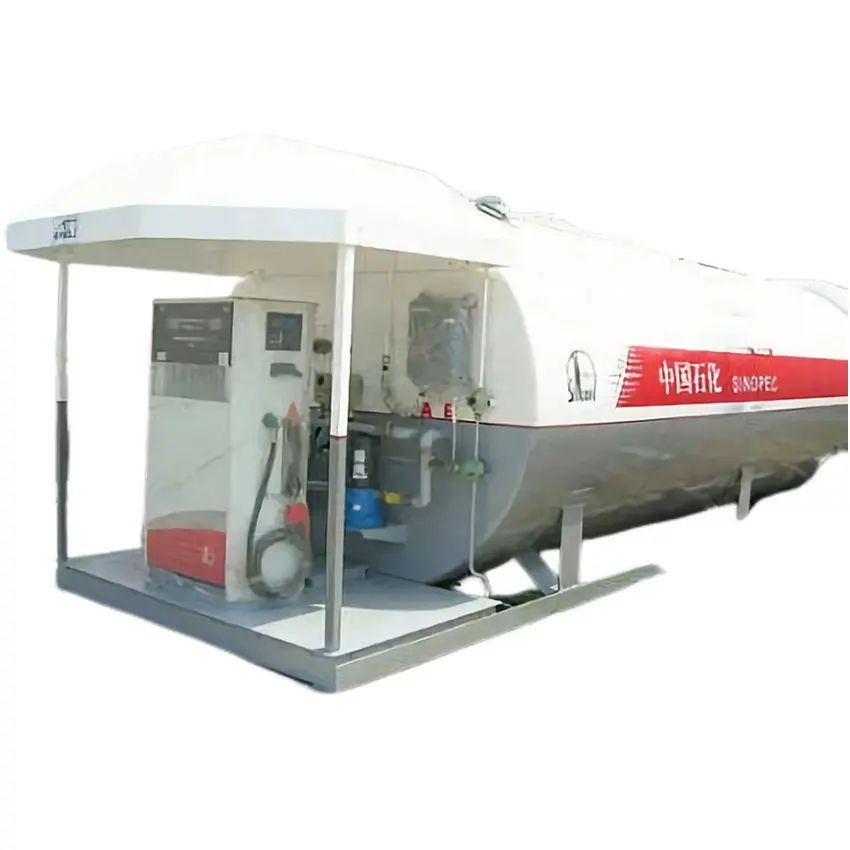

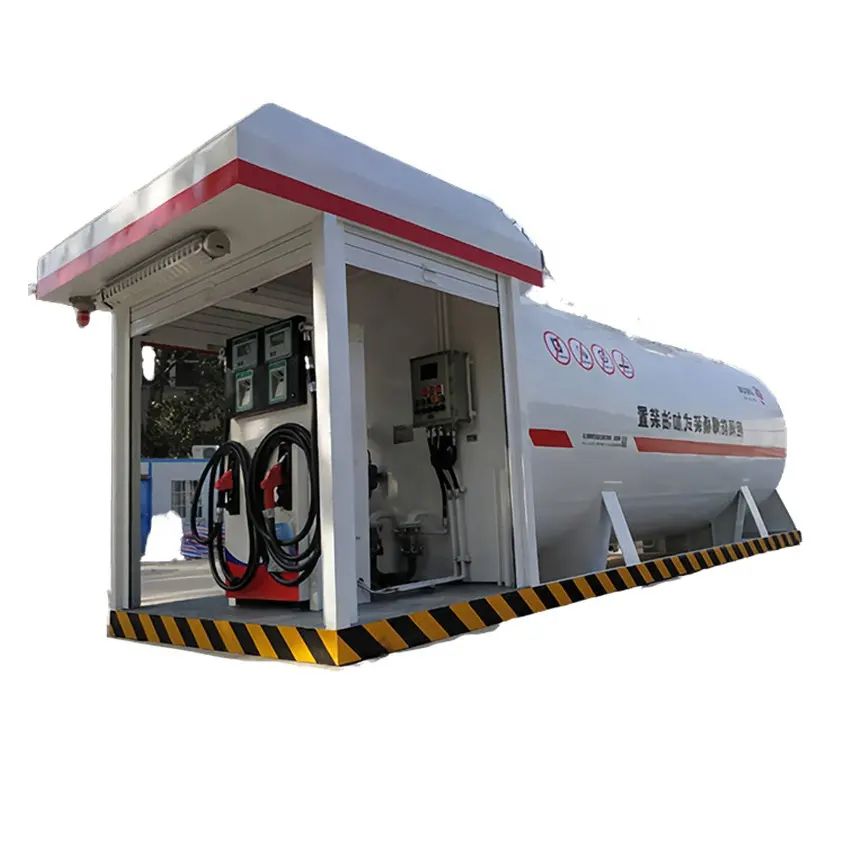

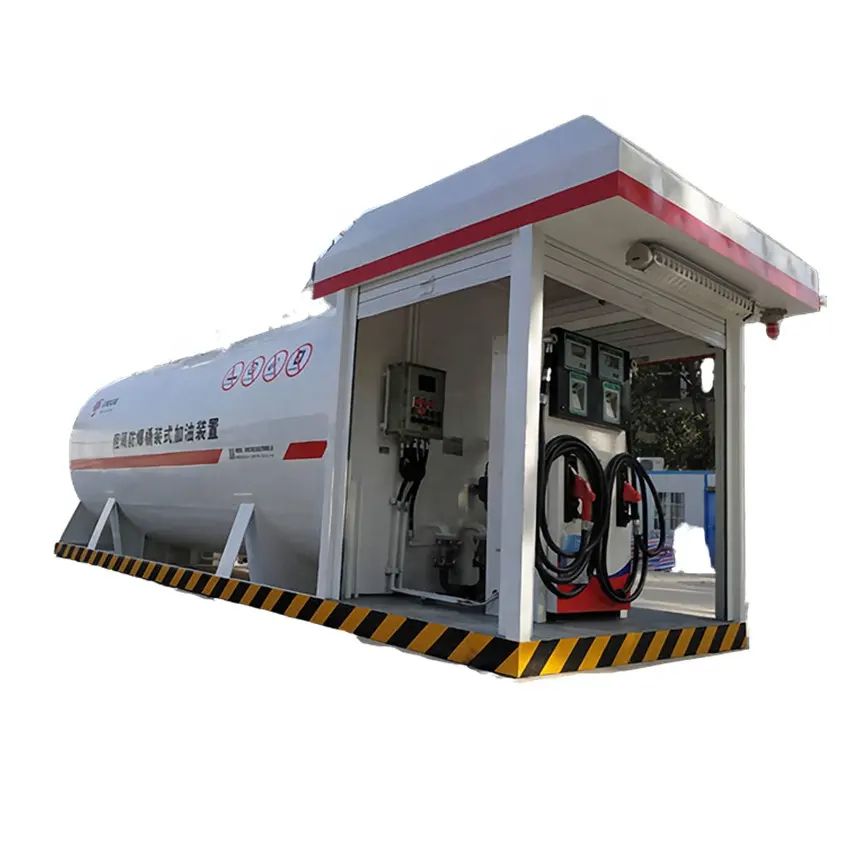

Standard or customized mobile fuel station integrated with fuel dispenser inside , which can be
transported and relocated easily, available for a range of flow rate .Container fuel station can operate remotely with any major credit card and comes preassembled with all pumps, valves, vents, card reader, and electrical fittings installed and tested in the factory.Customized fuel tank has good reputation in the international guests. Because the production is limited, the products in short supply.
Specifications
Customized container fuel tank mobile fuel station for sale 's main configurations included these parts:
1.20ft/40ft standard container*1
2. Fuel dispenser with 1 hose*1
3.Fire extinguisher*2
4.Electrical distribution box (electrical panel control for all the station )*1
5.Fuel fliter*1
6.Lighting*1
7.Vent and its valve *1
8.Dipstick ,cap and its port*1
9.Static grounding alarm device*1
10.Manhole and its cover*1
11.Ball valves and pipelines
12.Adjustable logo
13.Fuel storage tank*1
14.fuel pump*1
| Model | Tank Volume (L ) | Length (mm ) | Width (mm ) | Weight (empty) | Height (mm ) | ||
| 20 feet container | 30,000 | 6058 | 2438 | 8000kg | 2896 | ||
| 40 feet container | 66,000 | 12192 | 2438 | 15000kg | 2896 | ||
| Specification | Function | ||||||
| Power supply | 380V | Auto tank gauge | |||||
| Flow rate(refueling) | 80~500 lit/min | Overfill & low production protection | |||||
| Nozzle & Hose(refueling) | 1 inch,10 meters L | Leakage detection | |||||
| Flow rate(unloading) | 500 lit/min E | Earth connection detection | |||||
| Quick coupling(unloading) | 3 inch Hos | Hose reel | |||||
| Motor power (refueling) | 2.2 to 5.5kw | Micro printer | |||||
| Motor power(unloading) | 5.5kw | Automatic stop when overflow and no-fuel refueling | |||||
| Certifications | UL 142;CS safety | ||||||
Technical Parameters
1.Safety and reliability:the tank will be filled with explosion-proof material,which will keep the tank from burning ,impact ,gunshot ,explosion when accident happens.
2.Inhibit the evaporation of oil and gas and has the function of oil and gas recovery
3.The container fuel tank itself has a safety explosion-proof equipment, not subject to internal and external conditions (such as power outages, water shutoff, monitoring and automatic control device failure etc.), The refueling device don't need to increase the auxiliary equipment and allowing low cost.
4.The mobile fuel station is user friendly,easy maintenance and easy drain.
Features
Color screen display---- the real-time data display, monitoring the tank information.
Ratchet hose reel------by which the pipe can stretched to 10 meters.
Fuel delivery Pump---- optional fuel delivery pump and delivery pipe.
Tank level gauge---detect oil level and water level, the temperature and check leakage.
Applications
Customized container fuel tank mobile fuel station for sale
Small Fleet Refueling
Home Base Fleet Refueling
Home Base Refueling
General Purpose
Industrial
Mining
Tank trailer unloading
Lubricant and Waste Oil fueling
