Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;
Water Fire Truck Application
It can also be used as a vehicle for water supply and transportation in water-scarce areas. It is the most common fire truck for most area.
Application for Foam Fire Truck
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades.
Powder Fire Truck Application
Dry Powder Fire Truck mainly extinguishes fires of combustible and flammable liquids, combustible gases and charged equipment. It is a necessary fire truck vehicle for petrochemical and power plants, and can also extinguish fires of general substances.
| General | |
| Chassis Model | JX0612 |
| Overall Length | 5,385mm |
| Overall Width | 1,880mm |
| Overall Height | 2,085mm |
| Tank Capacity | 1,500 Liters |

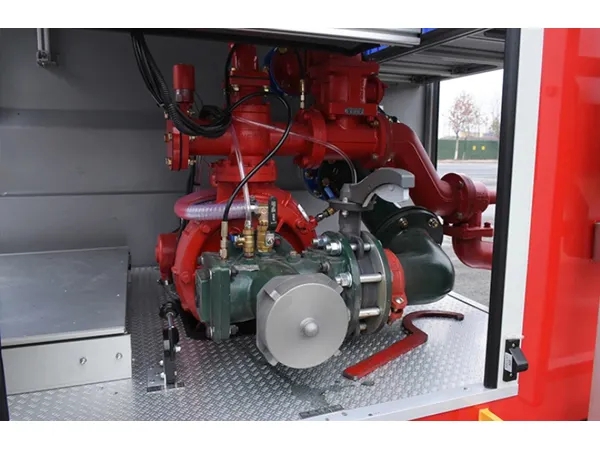

| Fire Pump | CB10/20 ,20L/s, 317GPM @1 Mpa |
| Fire Monitor | PS20 top mounted, Reach 48m |
| PTO | Sandwich type |
| Valves & Pipeline | |
| Injection Inlet for Water Filling | 2 nos.DN75 |
| One-way Valve Inject Inlet | 2 nos.DN75 |
| Overflow Device, Ventilation Outlet | 1 nos.DN50 |
| Lower Outlet for feeding the pump from tank | 1nos.DN50 |
| Drainage outlet ball valves discharge outlet | 2 nos. DN40 |
| Surplus Water Discharge Pipeline | For protect the water pump and valve |
| Cooling Water Pipeline | For protect P.T.O for normal work |
| Level Indicator | 2 nos. |
| Inlet Line Sieves | 1 nos. |
| Hose Reel | 2 nos. hose reel of diameter 3/4 inch ,length 20m |
| Variable Nozzle | perpendicular foggy, spray, foam |
| Nozzle Elevation Angle | ≤70° |
| Nozzle Depression Angle | ≤-15° |
| Nozzle Flow rate | 80L/s |
| Chassis Configuration | |
| Product Class | Specific fire engine chassis truck |
| Application & Operation | Fire engine-Urban |
| Bodywork Equipment | For mounting rigid fire engine |
| Drive Mode | 4×2 |
| Wheelbase | 2,800mm |
| Gross Vehicle Weight | 6,000kg |
| Engine | |
| Make/Model | JMC/ JX4D30 |
| Cylinders | 4 Nos Vertical in line |
| Type | Diesel, 4-cycle, water cooled , 4 stroke |
| Combustion System | Direct injection |
| Air Intake System | Supercharged inter cooler |
| Fuel Injection System | Mechanical |
| Bore × Stroke | 95 × 102mm |
| Displacement | 2.892L |
| Compression Ratio | 17.5:1 |
| Net Power Rating | 112kw (152ps) |
| Rated Speed | 2800 rpm |
| Max. Torque | 382 N.m |
| Speed at Max. Torque | 1,800-2,800 rpm |
| Cabin & Steering | |
| Cab Model | Short roof |
| Cab Style | Crew cab |
| Passengers Allowed Nos | 6 |
| Seats and Sleeper Line | Seats Line: driver seat and double co-driver seats |
| Steering Type | Recirculating Ball with Power Assisted, Left hand drive |
| Gearbox & Clutch | |
| Type | Manual |
| Forward Speed Nos | 8 |
| Reverse Speed Nos | 1 |
| Clutch | Dry Single Plate with Cushioning Spring, Hydraulic Control with Air Assisted |
| Suspension & Axles | |
| Front Suspension | Semi-elliptical, Alloy Steel Leaf Spring, Double Acting Telescopic Shock Absorber, Anti-roll Bar, 8pcs |
| Front Axle Type | 2T Reverse Elliot "I" Beam |
| Front Axle Rating | 1980kg |
| Rear Suspension | Semi-elliptical, Alloy Steel Leaf Spring 10+6pcs |
| Rear Axle Type | 4T Banjo, Full Floating Type |
| Rear Axle Rating | 3835kg |
| Wheels & Brake | |
| Size | 7.00R16LT 10PR |
| Nos | 6+1 spare tire |
| Service | Front & Rear Drum, Air Over Hydraulic, Brake Auto Adjuster Anti-lock Brake System (ABS) for option |
| Parking | Spring Brake Actuators Acting on Rear Wheels |
| Auxiliary | Exhaust Brake, Hill-Start-Aid (HSA) |
