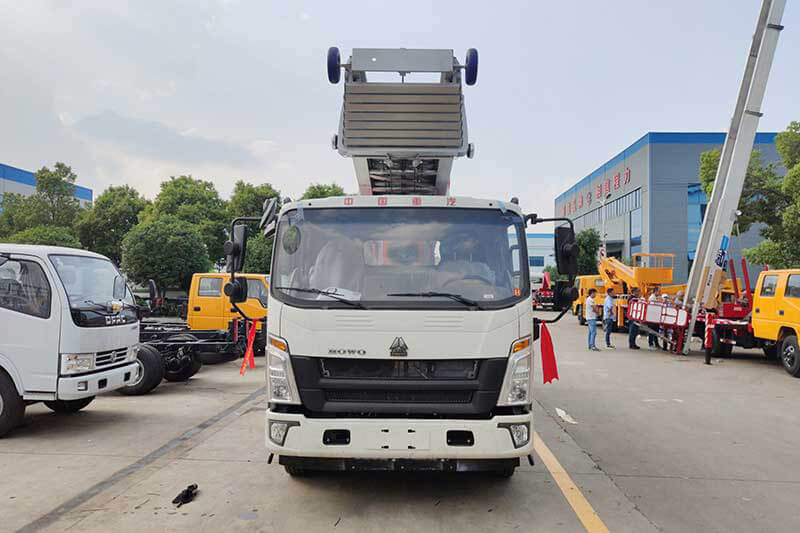

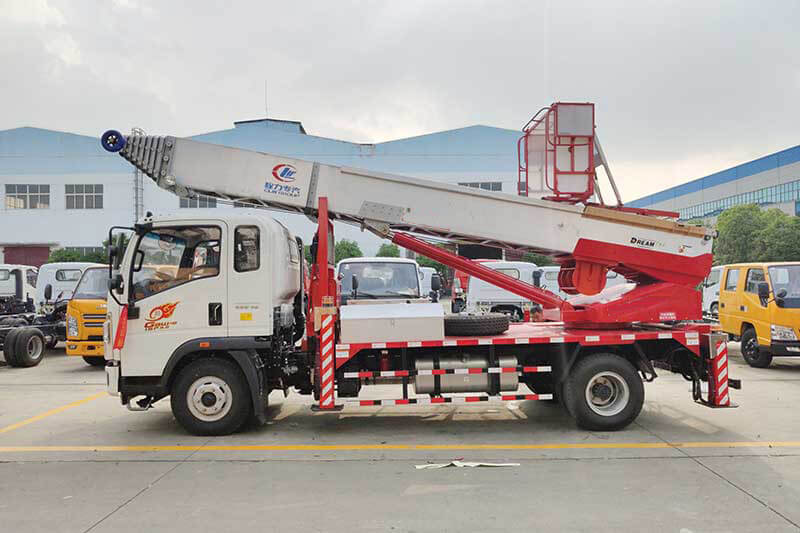

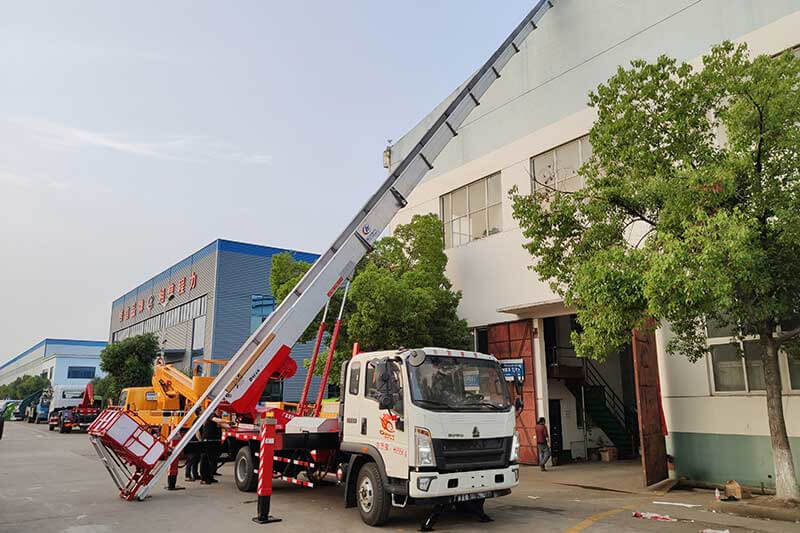

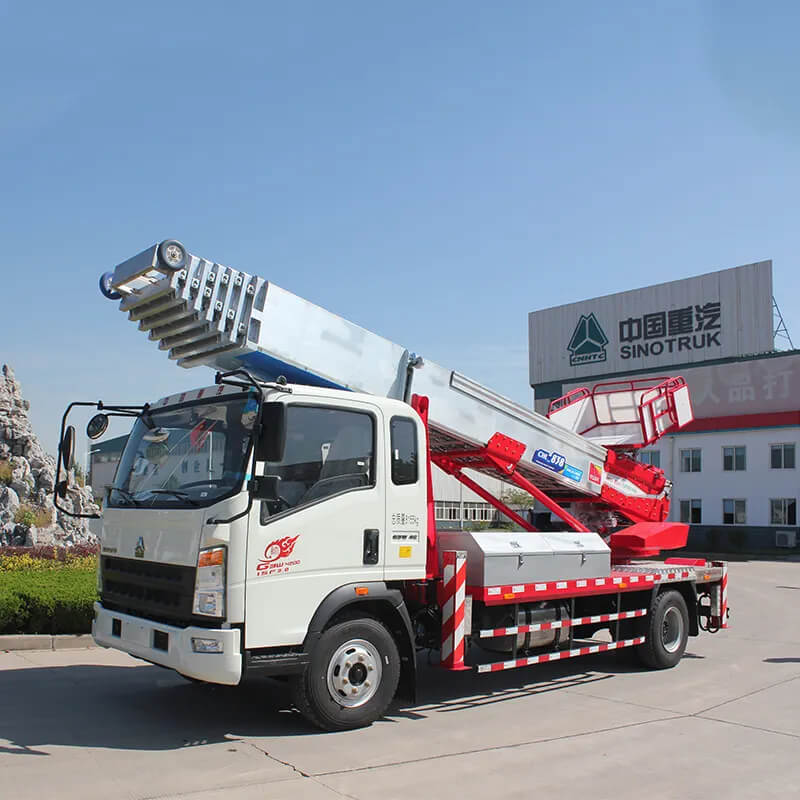

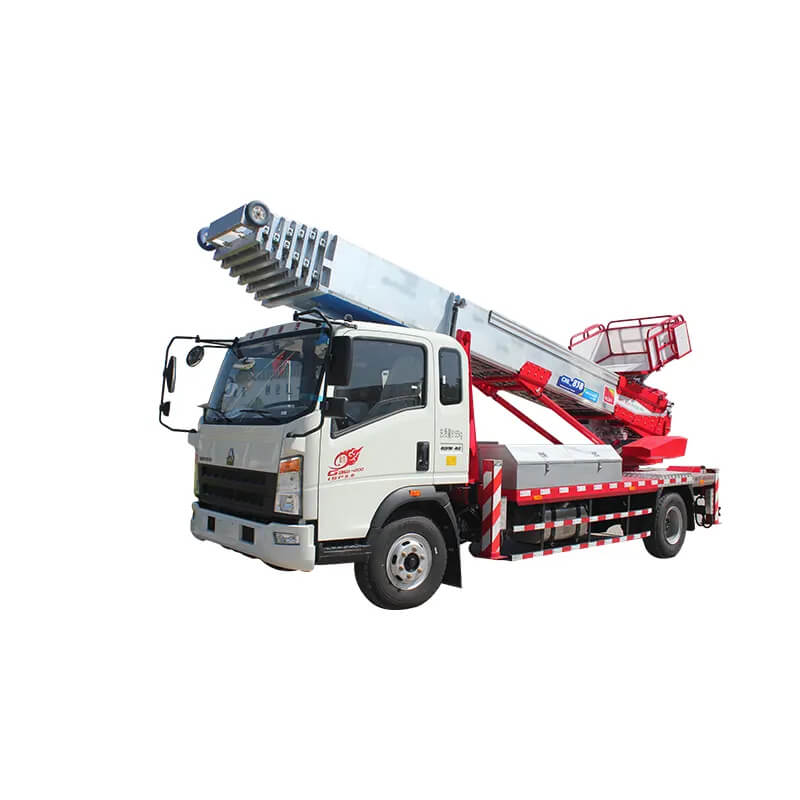

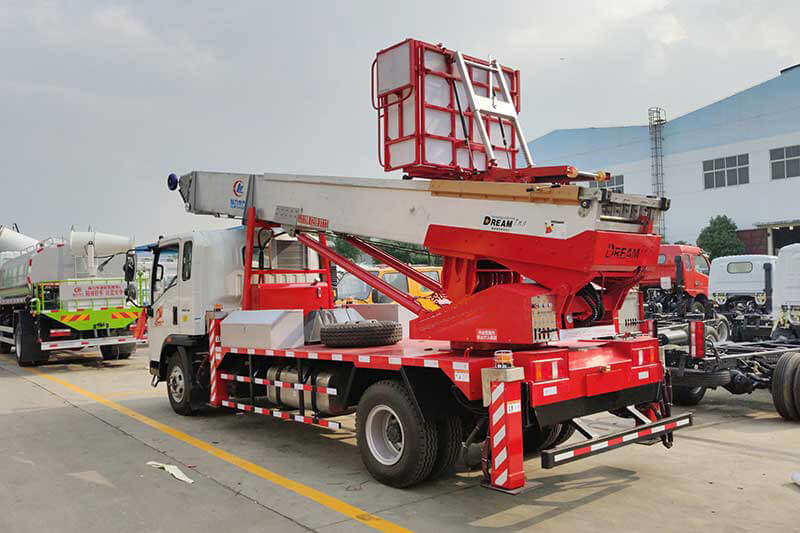

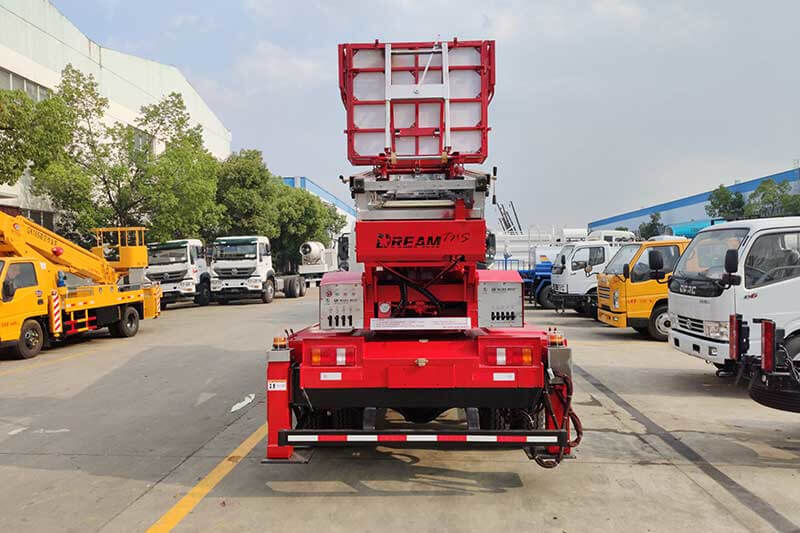

The Ladder Lift Truck is mainly composed of sub frame assembly, ladder assembly, turntable assembly, winch assembly, hydraulic system, Electrical system, etc. Mainly used for moving companies, project leasing, solar installation, billboard installation, air conditioning installation, cement sand and gravel handling, building materials upstairs, construction waste handling, bulky upstairs handling, ship maintenance, road and bridge maintenance, etc.
Ignition and flameout control of the engine can be carried out on both the control panel and the wireless remote control.
The lights on the boom could be controlled in the control panel in the vehicle.
During operation, the angle of the ladder can be visually checked, and the height of the ladder can be known at any time.
One-hundred-meter remote control, can control by one key turn off/ start, bucket carriage could be move up and down in automatic operation.
Easy to install dump bucket, can load 0.3 to 0.4 cubic meters of sand each time.
Germany BOSCH complete set of hydraulic system, balance valve unit and multi-way valve
Jack and cylinders are FAST brand, (which exported to the USA and Japan ) the cylinder has an independent steel stamp, which is an important part of the vehicle
Hydraulic motor (imported parts): drive the winch
Brake (imported part): lock the winch
Hydraulic lock (import part): lock hydraulic oil (prevent pressure relief)
Reducer (imported parts): deceleration motor, auxiliary stop rotating platform
Standard Features:
Optional Features:
Specifications
Chassis 机壳 Chassis Brand 底盘品牌 Sinotruck HOWO Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 3360 Tire Specifications 轮胎规格 7.00R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 6000×2000×2300 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 6 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 95 Engine 引擎 Model型号 ISUZU Horsepower(HP) 马力 98HP Emission standard 排放标准 Euro 2/ 3/ 4/ 5 Cylinder No. 气缸数 4-cylinders in-line, turbo-charged intercooling Fuel type 燃料类型 Diesel Cabin 舱 2 Passengers,single row
| Performance | Bucket Carriage Payload | 400kg |
| Boom Working Height | 32m | |
| Max. Drive Speed | 100km/h | |
| Outrigger Extended | 1200 mm | |
| Walking Platform | Checked Aluminum sheet constructed, anti-slip | |
| Driving Type | Hydraulic pump driving system via PTO from transmission. | |
| Bucket (carriage box) | Size | 2400x1300x450(mm) |
| Structure | Aluminum constructed, left heightened holes, (can be widened and heightened) | |
| Angle Adjust Type | Manual (auto level in a hand) | |
| Operating Type | Hydraulic winch | |
| Speed | 60 M/min, adjustable with accelerator | |
| Boom | Structure | 5.7m(length)×0.8m(width)×7 (section) synchronous telescopic boom |
| Material | High tension aluminum alloy | |
| Rise & Fall | via Double luffing cylinders, the boom rises and falls, and the rotation is more stable | |
| Operating Type | Hydraulic winch with double wire rope | |
| Turntable | Operating Type | Hydraulic motor |
| Slewing Angle | 170 º left and right | |
| Outrigger | Jack Numbers | 4 pcs |
| Type | H-type, individually adjustable | |
| Beam Operating | Hydraulic | |
| Jack Operating | Hydraulic | |
| Control | Emergency | Manual lever |
| Standard remote controller | 1-channel wire type | |
| Bucket | Electrical operation on ground remote control | |
| Boom | Electrical operation on ground remote control | |
| Turntable | Hydraulic manual | |
| Radiator | Manual, automatic cooling when the temperature reaches 35 degrees | |
| Safety | Vehicle Leveling Device | Equipped with a vehicle state level meter, which can detect the inclination state of the vehicle in both horizontal and vertical directions |
| Top /Bottom Interlock | Used for interlocking on and off the truck to prevent the danger of mis operation (converter) | |
| Boom Elevator Limit Alarm Device | The ladder boom is extended to 32 meters, and the automatic limit pressure relief sound alarm prompts | |
| Gear Brake | In the case of accidental breakage of the wire rope, it is stuck on the arm gap and acts as a buffer | |
| Plunger Brake | In the case of accidental breakage of the wire rope, it is inserted into the beam of the ladder, and it can brake left and right within a short distance (the plug-in brake is an invention patent by ) |
