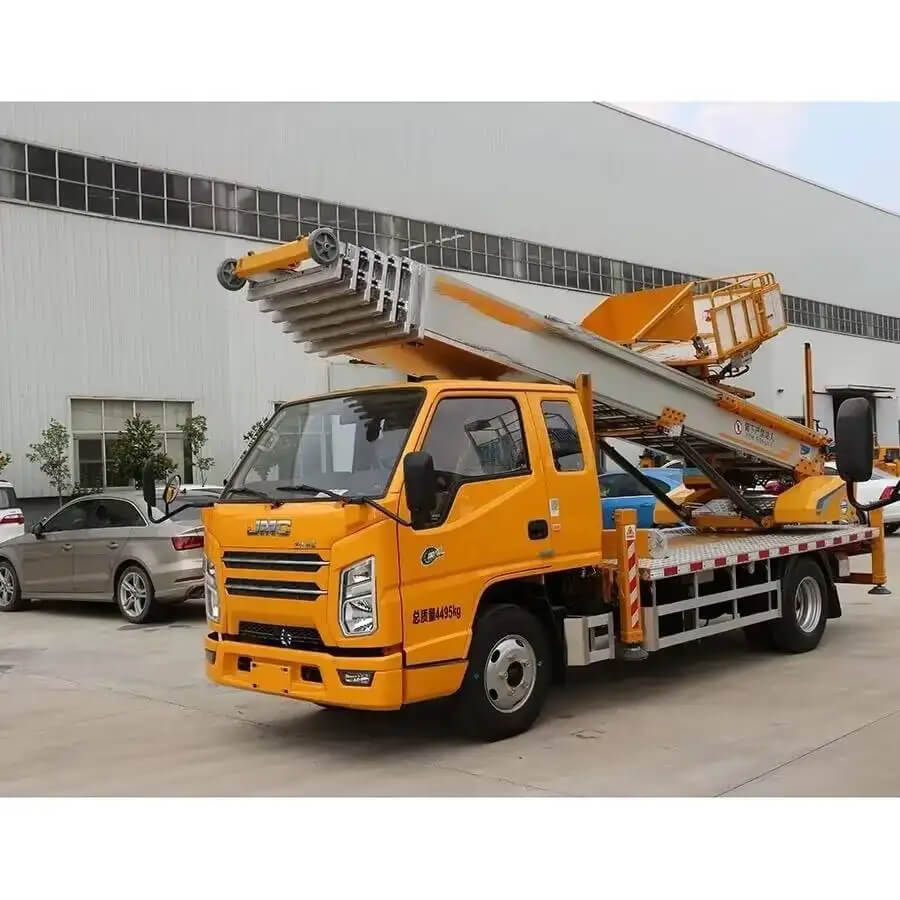

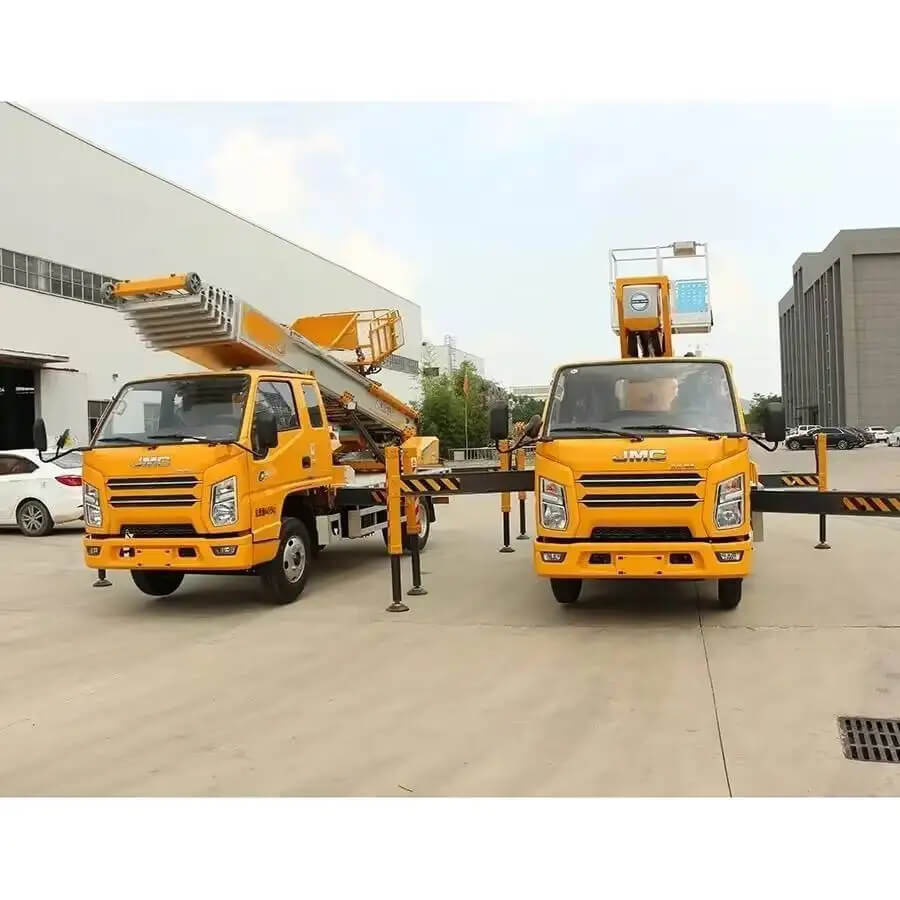

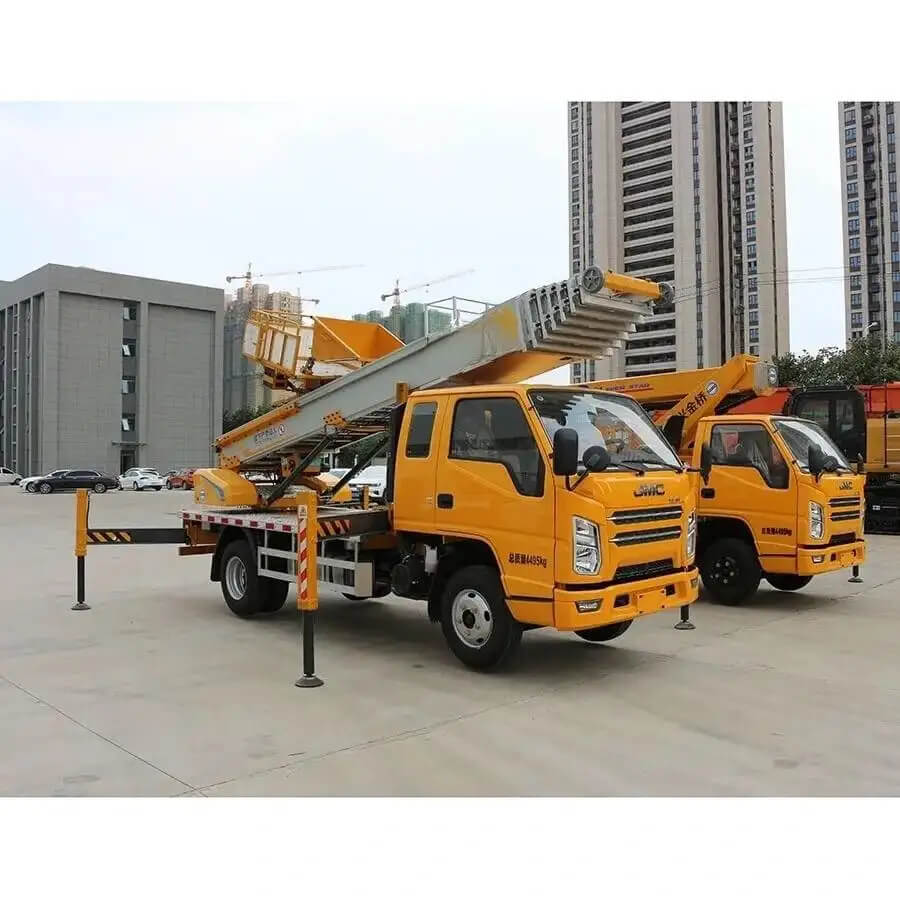

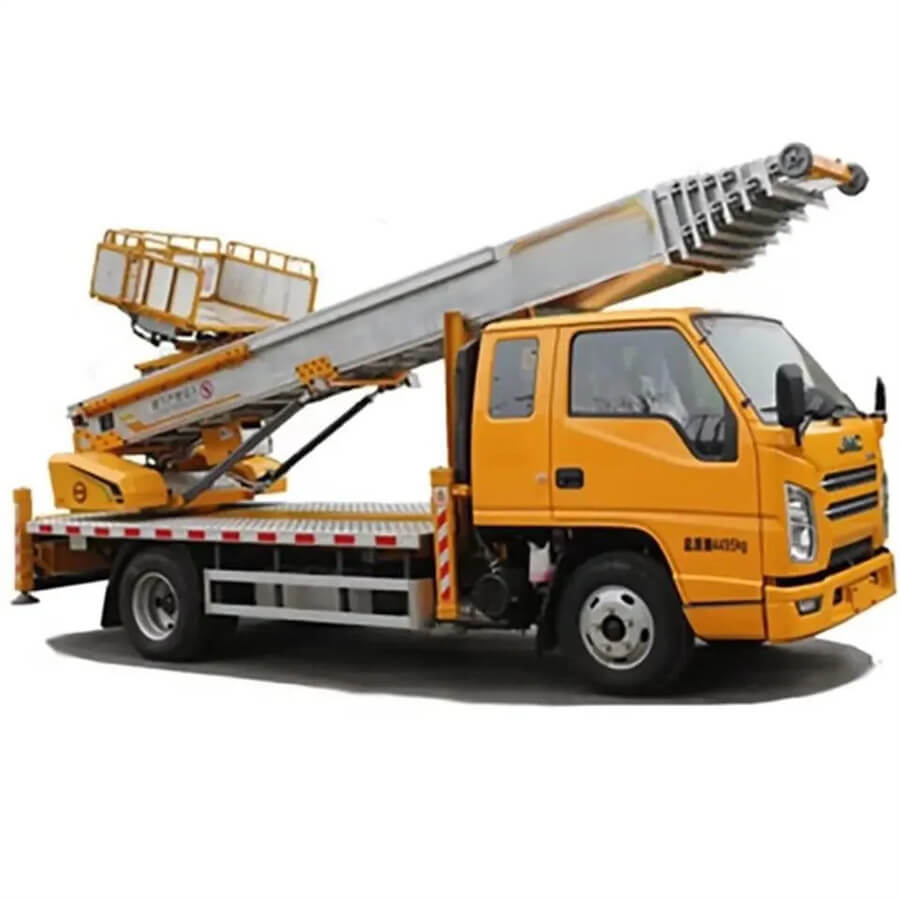

The Ladder Lift Truck is mainly composed of sub frame assembly, ladder assembly, turntable assembly, winch assembly, hydraulic system, Electrical system, etc. Mainly used for moving companies, project leasing, solar installation, billboard installation, air conditioning installation, cement sand and gravel handling, building materials upstairs, construction waste handling, bulky upstairs handling, ship maintenance, road and bridge maintenance, etc.
Other Good Quality Parts
Hydraulic motor (imported parts): drive the winch
Brake (imported part): lock the winch
Hydraulic lock (import part): lock hydraulic oil (prevent pressure relief)
Reducer (imported parts): deceleration motor, auxiliary stop rotating platform
Standard Features:
Optional Features:
SPECIFICATION Chassis 机壳 Chassis Brand 底盘品牌 DONGFENG Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 3300 Tire Specifications 轮胎规格 7.00R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 6000×1900×2400 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 5 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 90 Engine 引擎 Model型号 Chaochai Horsepower(HP)马力 95 Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 4 Fuel type 燃料类型 Diesel Cabin 舱 2 Passengers,single row
| | |
| Lifting Ladder Assembly: |
|
| Section | 7 |
| Max Working Height | 32m |
| Max Working Reach | 12m |
| Carrier Lifting Capacity | 400kg |
| Carrier Size | 1100X1000X450mm |
| Rotation Angle | ±90° |
| Outrigger Extension Span | 1100mm |
| Outrigger Retraction Time | 20s |
FAQ
1.what can you buy from us?
Answer: Fire Truck ,LPG Tank Truck,Fuel Tank Truck, Tank Truck ,Cleaning Truck,Garbage Truck, Tow Truck , Bucket Truck ,Construction Truck, Ambulance , Van Truck ,Truck Mounted Crane,Utility Truck,Tank Semi Trailer, Semi Trailer
2. What is the payment term?
Answer: FOB,CIF; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
