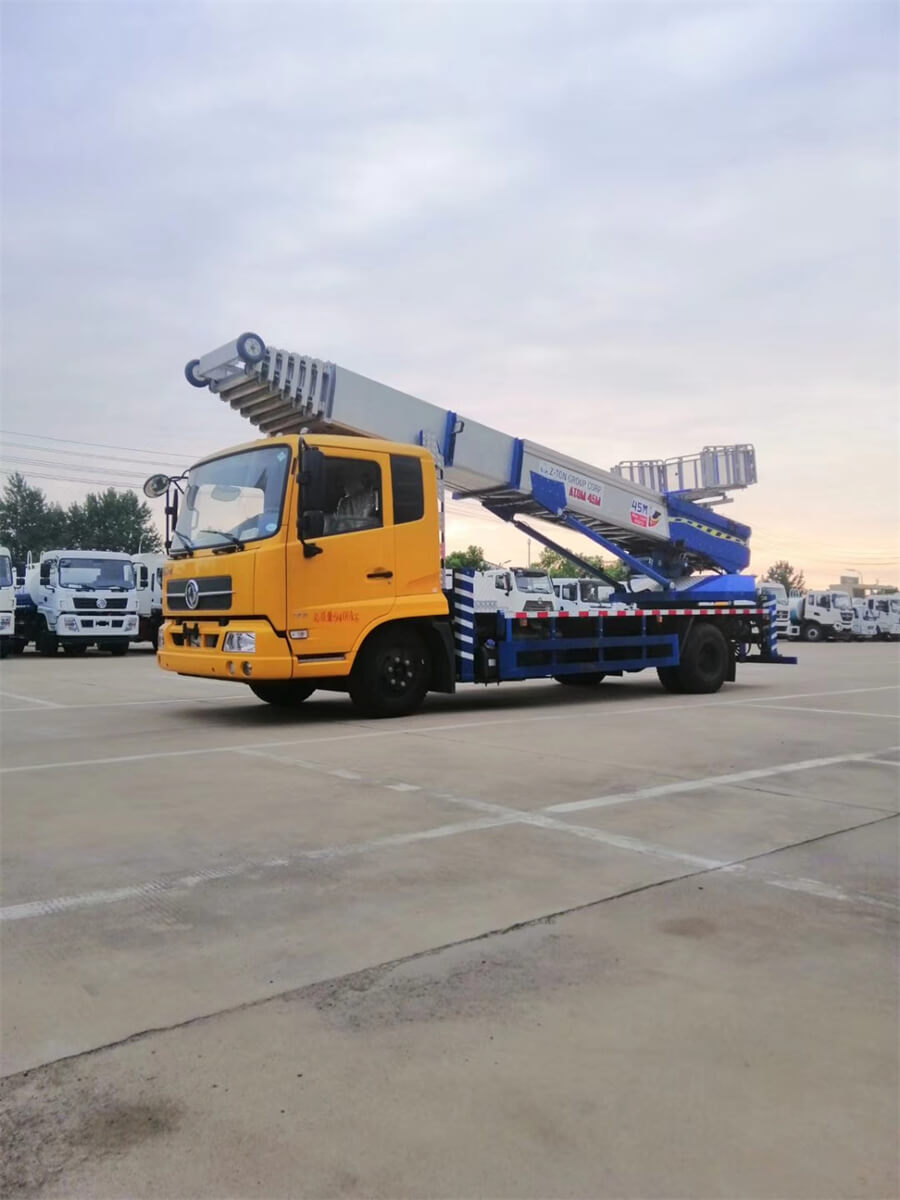

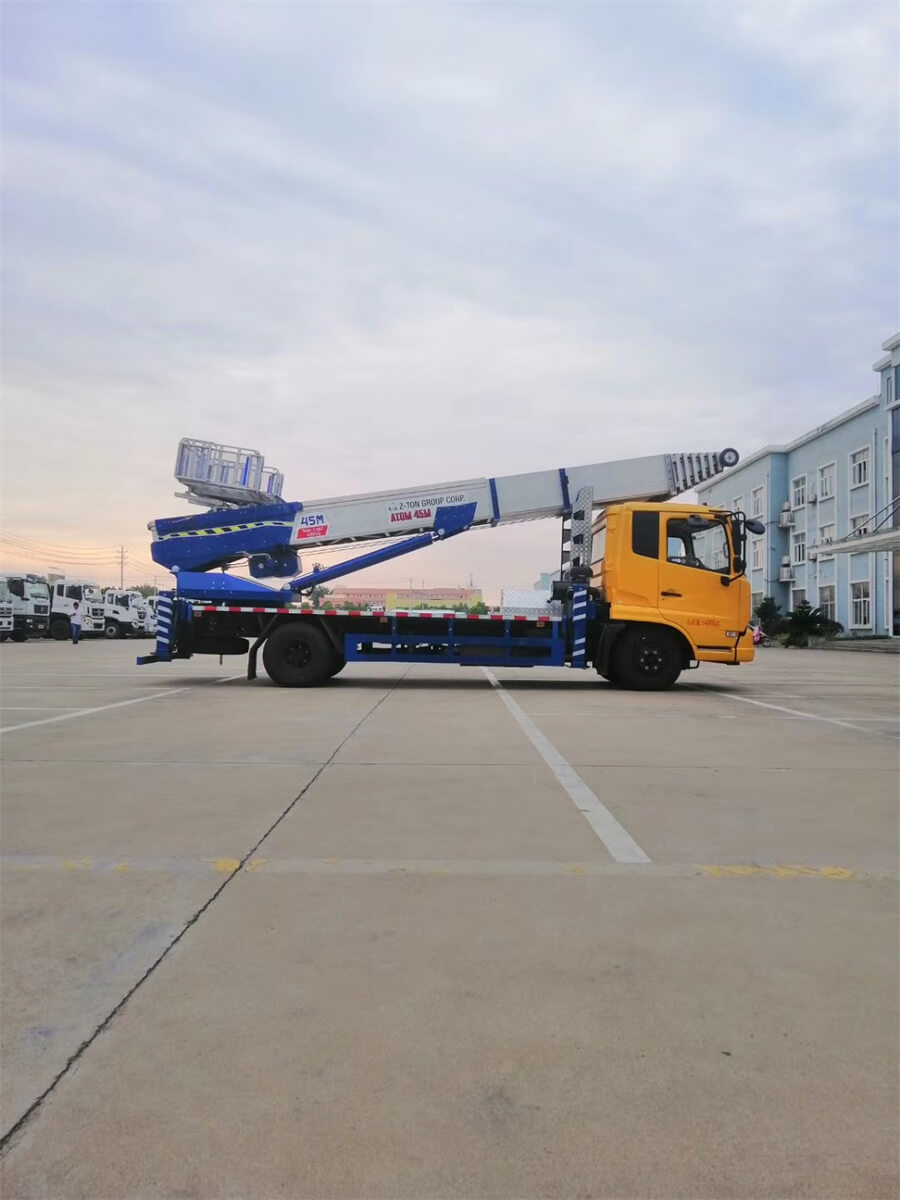

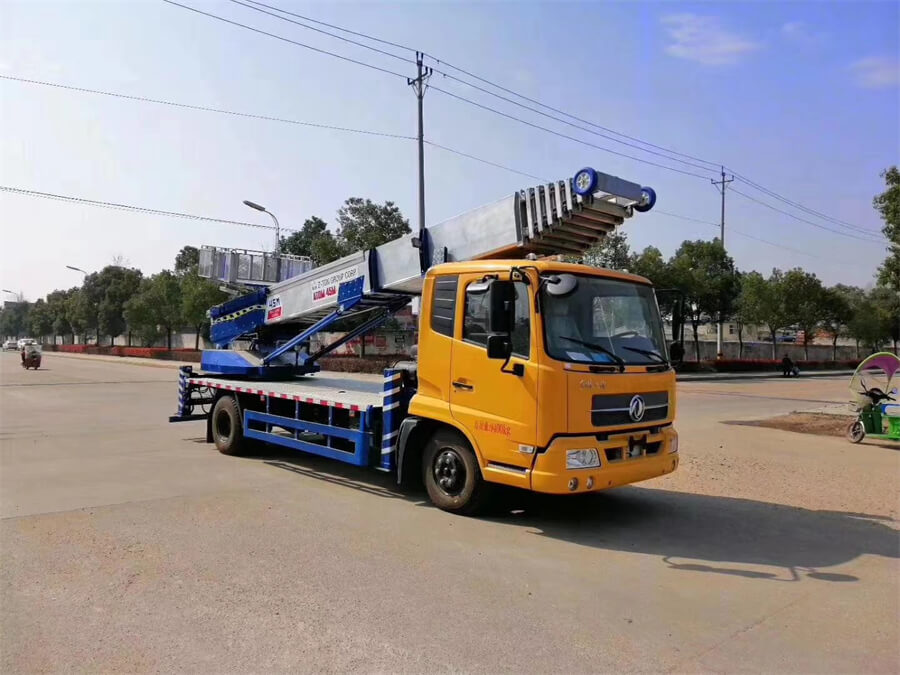

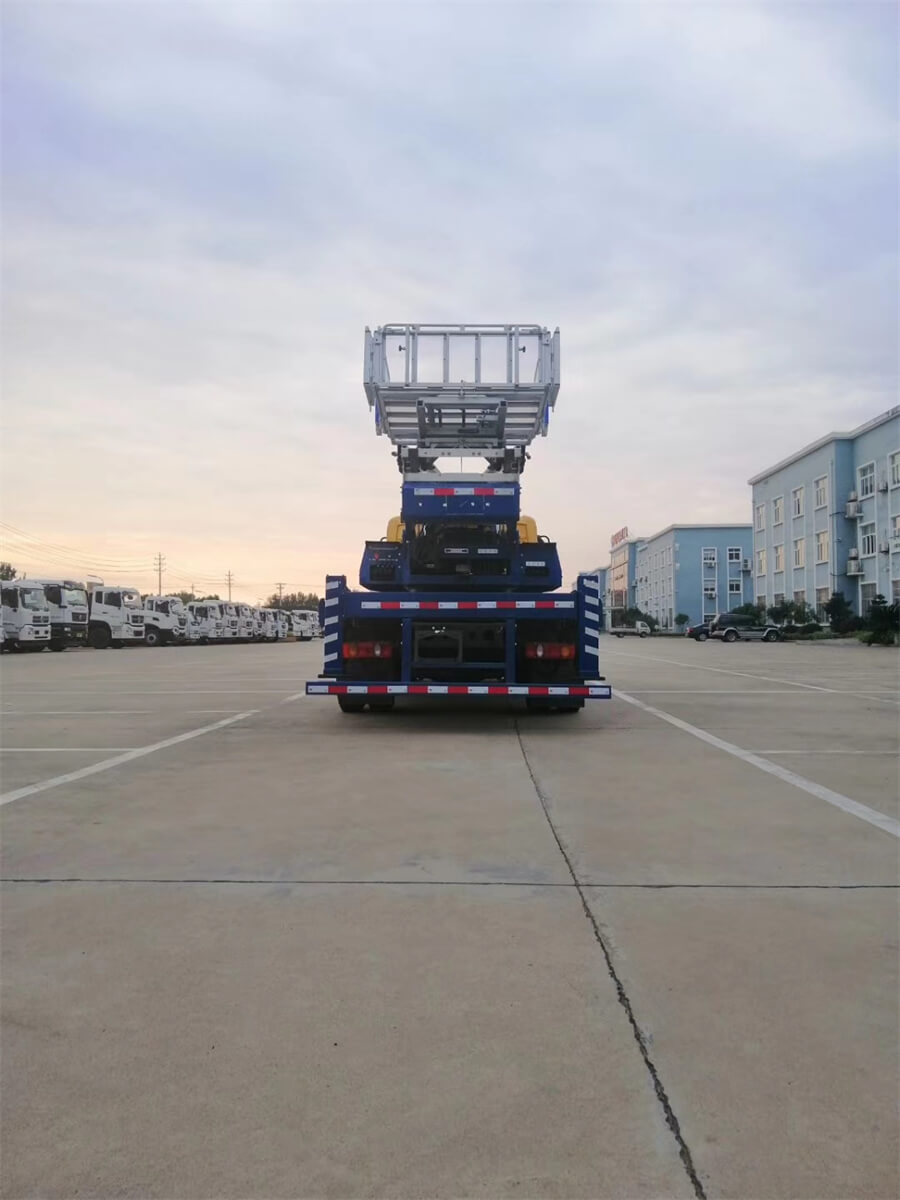

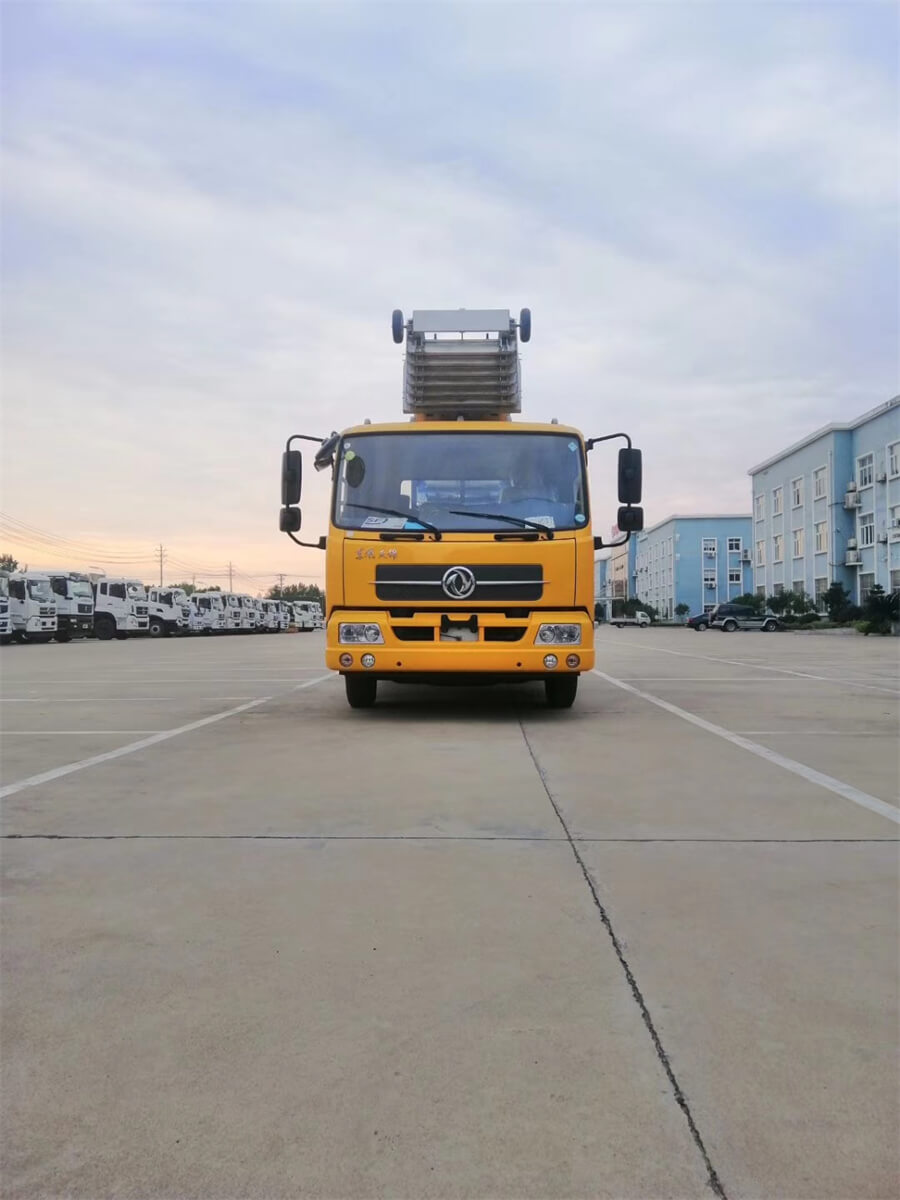

The Ladder Lift Truck is mainly composed of sub frame assembly, ladder assembly, turntable assembly, winch assembly, hydraulic system, Electrical system, etc. Mainly used for moving companies, project leasing, solar installation, billboard installation, air conditioning installation, cement sand and gravel handling, building materials upstairs, construction waste handling, bulky upstairs handling, ship maintenance, road and bridge maintenance, etc.
Ignition and flameout control of the engine can be carried out on both the control panel and the wireless remote control.
The lights on the boom could be controlled in the control panel in the vehicle.
During operation, the angle of the ladder can be visually checked, and the height of the ladder can be known at any time.
One-hundred-meter remote control, can control by one key turn off/ start, bucket carriage could be move up and down in automatic operation.
Easy to install dump bucket, can load 0.3 to 0.4 cubic meters of sand each time.
Germany BOSCH complete set of hydraulic system, balance valve unit and multi-way valve
Jack and cylinders are FAST brand, (which exported to the USA and Japan ) the cylinder has an independent steel stamp, which is an important part of the vehicle
Hydraulic motor (imported parts): drive the winch
Brake (imported part): lock the winch
Hydraulic lock (import part): lock hydraulic oil (prevent pressure relief)
Reducer (imported parts): deceleration motor, auxiliary stop rotating platform
Standard Features:
Optional Features:
| Chassis 机壳 | Chassis Brand 底盘品牌 | DONGFENG |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 4500 | |
| Tire Specifications 轮胎规格 | 10.00R20 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 7900×2500×3000 | |
| Air Conditioner空调 | A/C | |
| Brake System 制动系统 | Air break | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 8 Forwards & 1 Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 90 | |
| Engine 引擎 | Model型号 | Cummins |
| Power(kw)/Horsepower(HP)功率/马力 | 140/190 | |
| Emission standard 排放标准 | Euro 2/3/4/5 Optional | |
| Cylinder No. 气缸数 | 6 | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 3 Passengers,single row,1 sleeper
| |
SPECIFICATION
| Lifting Assembly: |
|
| Make/Model | ZTON450LT |
| Max Lifting Height | 45m |
| Basic Ladder Boom Length | 7000mm |
| Section | 8 |
| Material | Hight-tension aluminum alloy |
| Max Working Reach | 10m |
| Carrier Lifting Capacity | 400kg |
| Carrier Elevating Speed | 60m/min |
| Carrier Size | 2410X1700X520mm/ 1300x1000x500mm |
| Rotation Angle | 270° |
| Hydraulic Pressure | 180Kg/cm2 |
| Hydraulic Capacity | 51cc/rev |
| Outrigger Type | H |
| Outrigger Extension Span | 6215mm |
