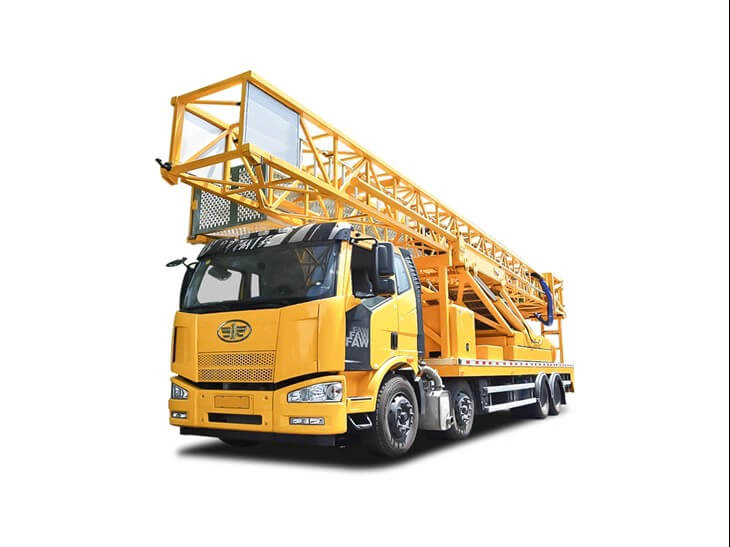

The Long-reaching Bridge Inspection Unit is a highly specialized Telescopic Bucket Truck designed to cater to the inspection, maintenance, and repair requirements of medium and large-sized bridges. This Mobile Bridge Inspection Unit boasts a horizontal reach of 20.7m and is equipped with a four-bar linkage lifting device that enhances its operational parameters significantly when compared to traditional turntable structures, all while maintaining the same level of stability and weight requirements.
The technical parameters, configuration, safety performance, and reliable indicators of this telescopic Bucket Truck meet international standards, positioning it as a leading product in the market. It is mounted on the latest FAW truck chassis, which not only adds to its sophisticated appearance but also provides high cost-effectiveness.
Whether you require bridge inspections, maintenance, or repair, this telescopic bucket truck is an ideal solution that guarantees reliability and efficiency while adhering to the highest safety standards. The telescopic bucket truck's specialized design ensures that it can easily navigate through complex structures and reach difficult-to-access areas, making it a versatile option for any bridge inspection or maintenance task.
Moreover, the Long-reaching Bridge Inspection Unit is equipped with state-of-the-art safety features that ensure optimal protection for the operators while working at heights. This includes an anti-collision system, a fall arrest system, and emergency stop buttons, all of which comply with international safety standards.
Overall, the Long-reaching Bridge Inspection Unit is an innovative solution that meets the ever-evolving demands of bridge inspection and maintenance. The telescopic bucket truck's advanced technology, high safety standards, and cost-effectiveness make it a preferred choice for bridge maintenance contractors, ensuring that they can carry out their tasks efficiently while minimizing risks to personnel and equipment.
Equipped with four-point rigid support technology.
Constructed with aerospace aluminum alloy truss arm.
The core components are designed to be lightweight.
The turntable is adjustable and has a two-way leveling system.
Has a powerful inspection platform capacity of up to 800 kg.
Integrates mechanical, electrical, hydraulic, and communication systems.

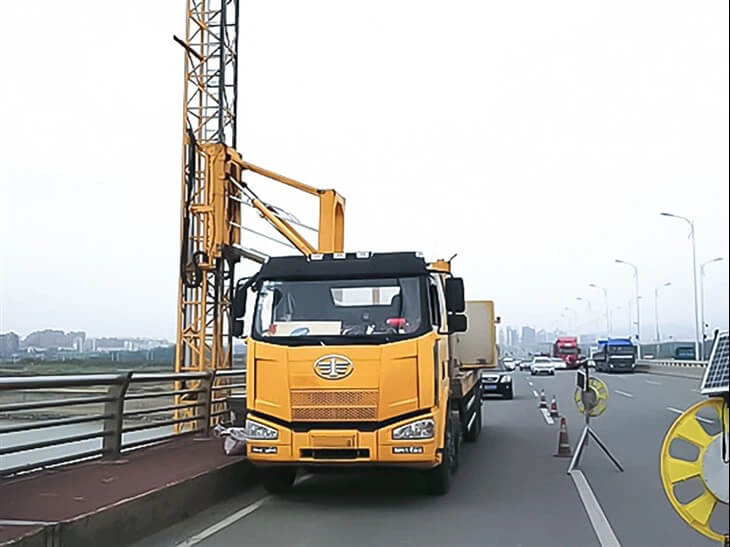

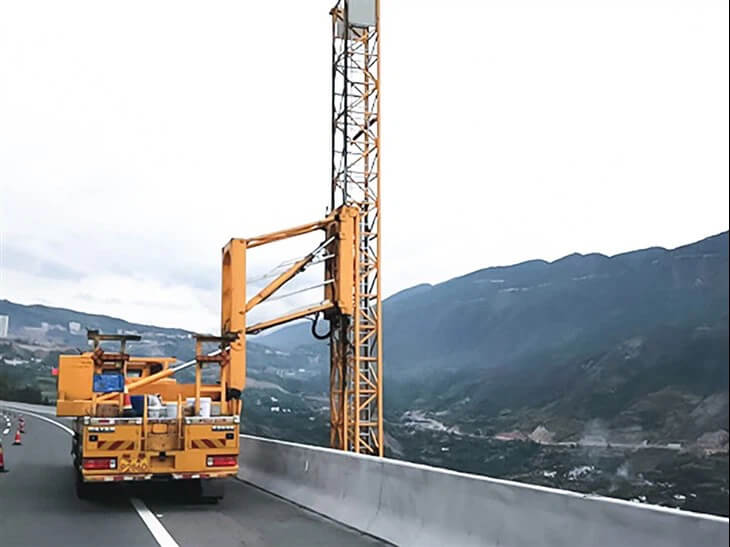

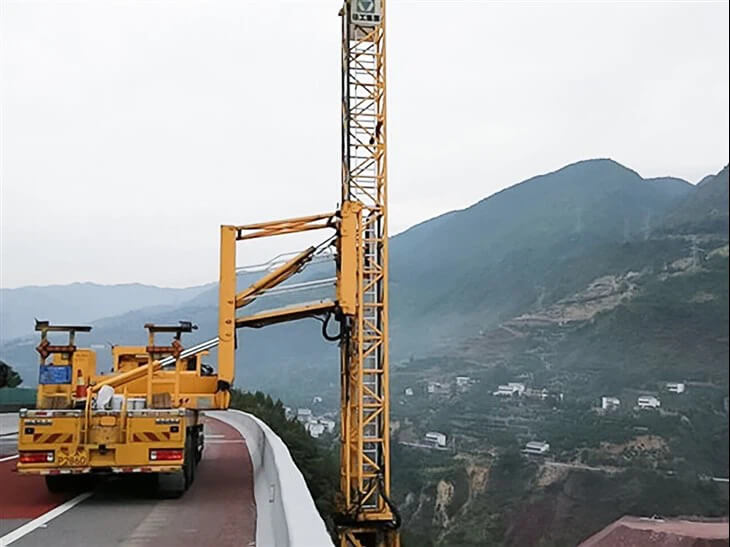

Ability to operate in, around, through, and over all obstructions, including high guardrails, wide sidewalks, cables/trusses, and deep girders for close-up bridge inspections.
The hydraulic self-propelled moving function allows the vehicle to operate without impacting traffic during the inspection process.
Can move forward at low speed without retracting, improving the range and operational efficiency for bridge inspection teams.
OPTIONAL FEATURES:
Option to add a logo.
Equipped with a toolbox.
Features a video monitoring system.
Comes with LED work lights.
Includes a spray water tank.
Option to add a generator with an electrical outlet in the platform.

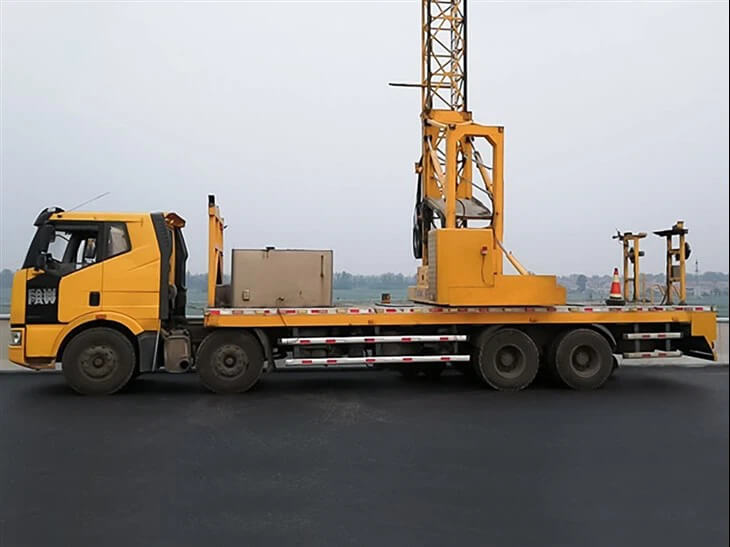

Truss Type Bridge Inspection Vehicle used imported VOLVO, Mercedes-Benz or domestic FAW chassis, drive mode is 8 × 4, the maximum speed is 102km / h, maximum operating inspection speed is 10m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approachbridges and other various types of bridge preventive inspection.
Lattice Type Bridge Inspection Vehicle( hereinafter referred to as Bridge Inspection Vehicle ) using two sets of rubber balance wheel which operated by hydraulic system for auxiliary support in working state. The balance wheel to maintain gravitational balance in working and balance wheel does not exceed the vehicle. In order to ensure the stability and reliability of bridge inspection vehicle in working, we used three sets of control method: remote, panel , emergency. Remote is recommended for control, wireless remote control, the proportion of output, so that the operator can quickly smooth operation of each action of bridge inspection vehicle; Panel method using two operating systems, one is located in the control box which on the right rear of the vehicle, another is located on the second rotary working platform, that ensure operator that each action operations are within sight of their own and to ensure the safety; Emergency method is through directly to operate electro-hydraulic proportional valve handle to control the bridge inspection vehicle’s movement and speed.
The bridge inspection vehicle is equipped with a video image monitoring system, electro-hydraulic synchronous interlock control system, internal real-time system, work status switch automatic adjustment system, safety relief valve and balancing valve , etc. These features ensure the safety when the bridge inspection vehicle traveling or working. The bridge inspection vehicle also equipped standby power system which consists of generator and emergency motor ump, when the chassis engine has failure , you can use this system to provide power for bridge inspection vehicle , to ensure their normal work or let the platform back to recover state.
| Model | HZZ5311JQJ22 |
| Drive Type | 8×4 |
| Chassis Model | CA1310P63K2L6TCA1E4(Euro4) |
| Maximum Net Power of Engine | 206KW(280HP) |
| G.V.W. | 31000 kg |
| Overall dimensions | 12510×2500×4000 mm |
| Maximum Driving Speed | 85 km/h |
| Maximum Operation Speed | 10 km/h |
| Horizontal Operation Range Under Bridge | 12500mm-22000mm |
| Maximum Width for Crossing Sidewalk | 3500mm |
| Maximum Height for Crossing Guardrail | 3500mm |
| Maximum Loading Capacity for Extensible Platform | No Extensible Status is 800kg, Full Extensible Status is 700kg. |
| Maximum Loading Capacity for the end of Platform | No Extensible Status is 400kg, Full Extensible Status is 350kg. |
| The First Scope Rotation Angle | 0~90° |
| The Second Scope Rotation Angle | 0~180° |
| Occupation Width On the Bridge During Working Time | 2800mm |
| Maximum Vertical Operating Range Under The Bridge | 8100mm |
| Width of Working Platform | 1080mm |
| Classification of Wind Resistance | ≤12.5m/s |
| Fix Stabilizer for Rear Axle | Cylinder |
| Control Mode | Remote/Panel/Emergency |
| Wireless Remote Control | Germany NBB |
| Emergency Generator | America KOHLER |
| Hydraulic System | Electro-hydraulic Proportional Servo System(HAWE, Germany) |
| Amble Motor | Machinery Hydrostatic Transmission(France POCLAIN) |
