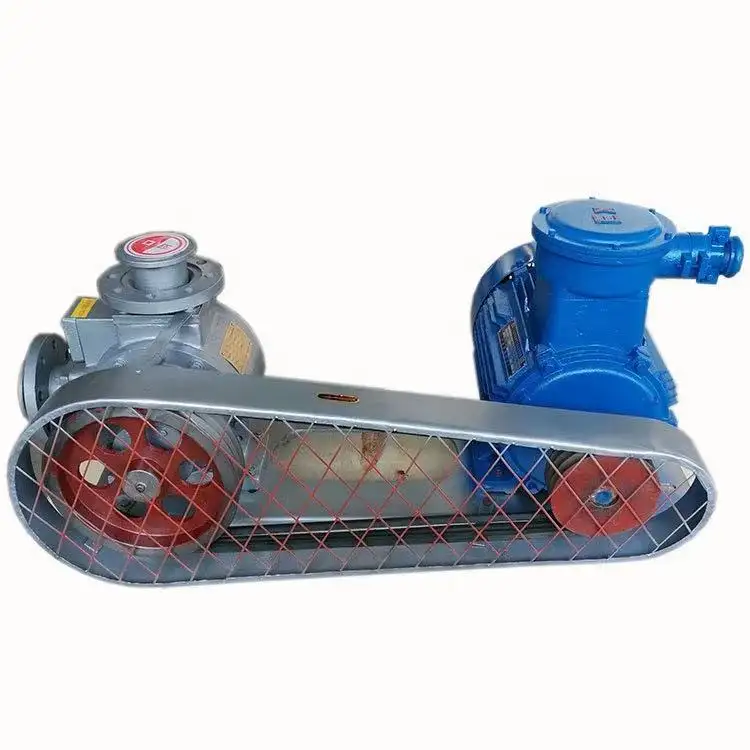

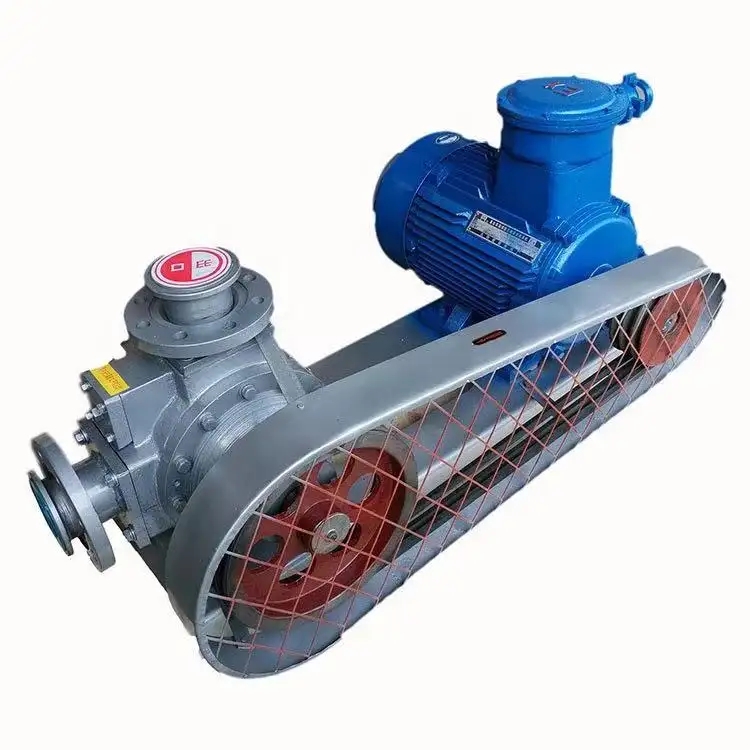

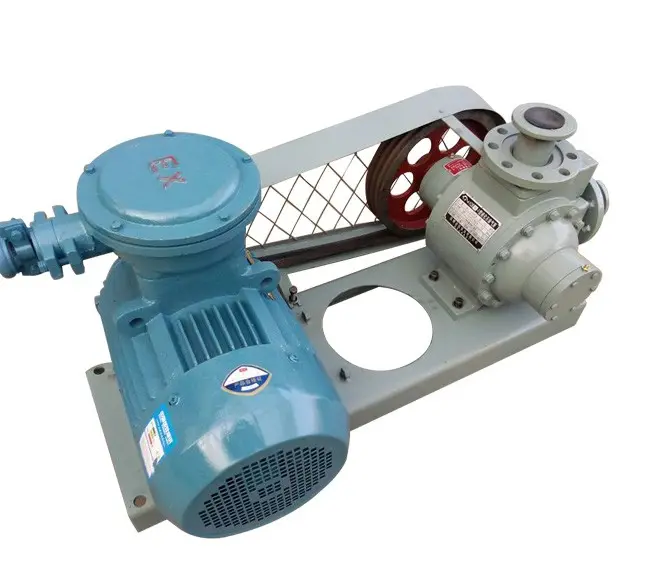

Sliding vane positive displacement liquid pump.
Ÿ Low pressure design with combination of O-ring construction
Ÿ Mechanically sealed with silicon carbide seal seat
Ÿ Six blades and blade drivers
Ÿ Adjustable interal relief valve
Ÿ Cam is not replaceable
Ÿ Sideplates are reversible
Ÿ Suitable for petroleum products and industrial solvents
Application:

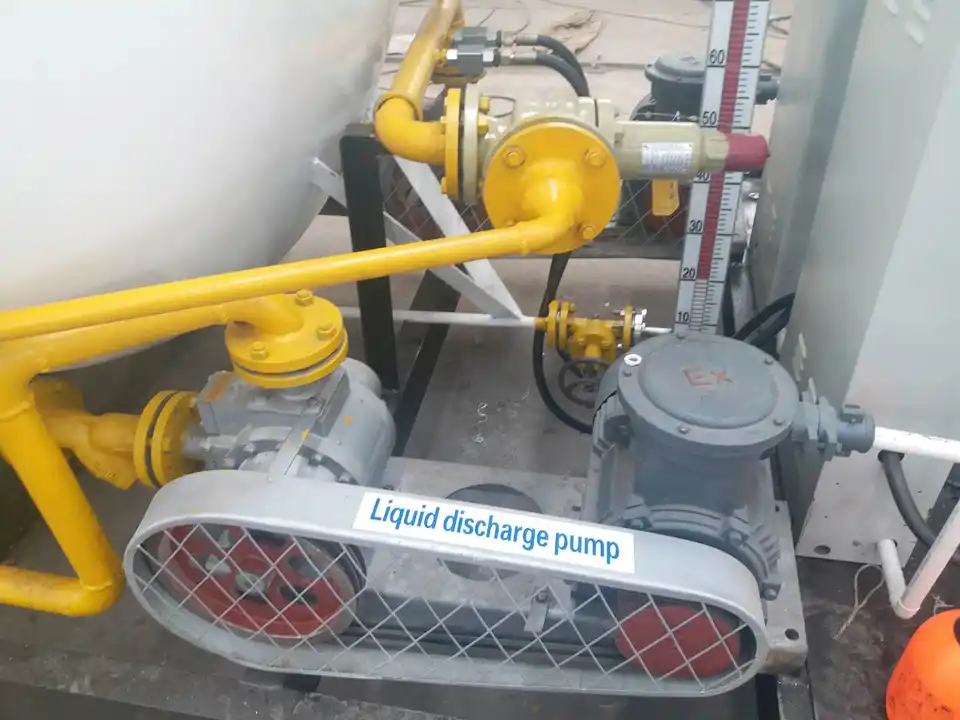

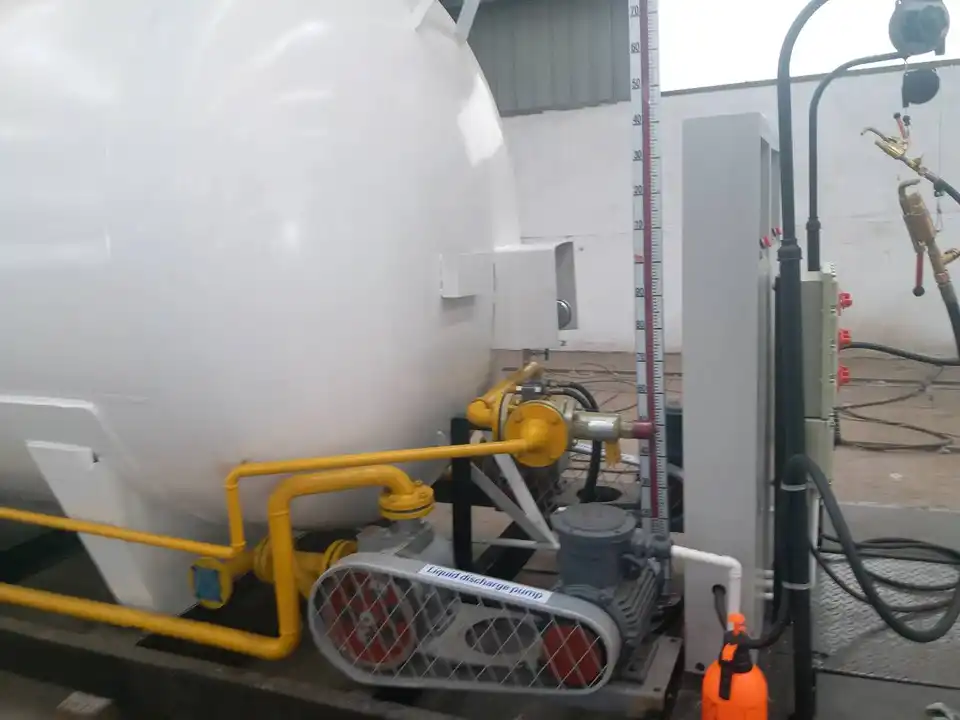

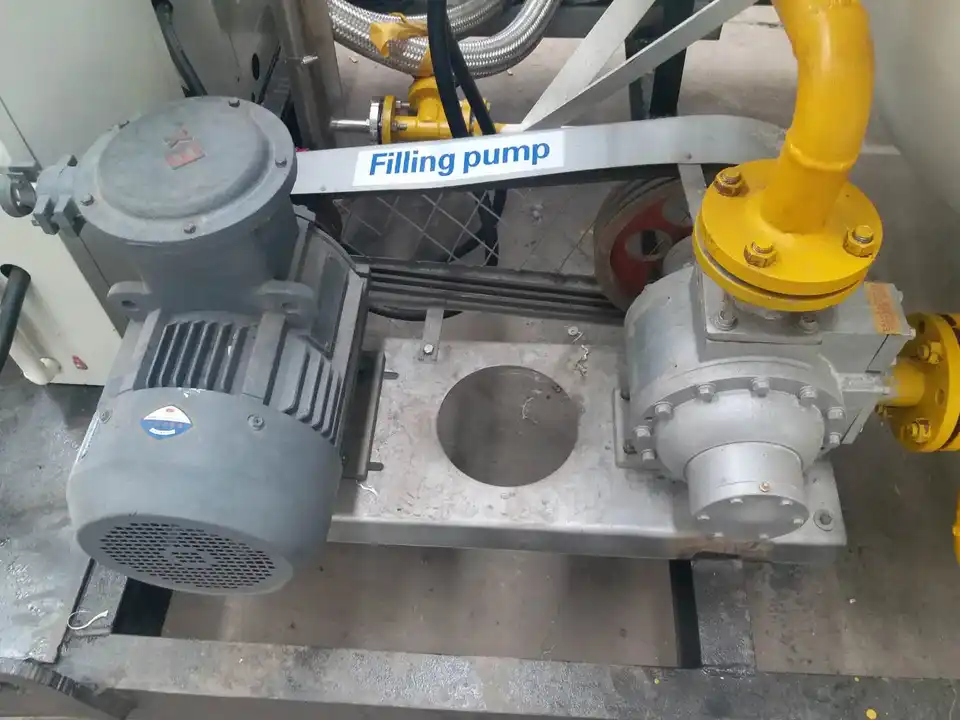

Ÿ Propane/butane bulk transferTruck/delivery application
Ÿ Barge unloading
Ÿ Tank/railcar unloading
Ÿ Agricultural ammonia
Construction
Ÿ Designed for high pressure applications with a maximum working pressure of 400 psi (27.6 bar)
Ÿ Available in foot and truck mounted designs
Ÿ O-ring construction
Ÿ Six vanes/blades design with vane drivers
Ÿ Mechanically seal design with silicon carbide seal seat
Ÿ Depending on the model, available with NPT or Class 300 RF flanges
Ÿ Approved by Underwriters' Laboratories (UL) for LPG and agricultural ammonia service
Hydraulic drive option available
Pump Materail:
Ÿ Pump casing and heads: Ductile iron
Ÿ Cam and sideplates: Gray iron
Ÿ Rotor and flanges: Ductile iron
Ÿ Seal seat: Silicon carbide
Ÿ O-rings: Buna-N, PTFE, Viton®, Neoprene®. (Registered trademark of DuPont)
Ÿ Blades: Advanced polymers
Deliverying Liquid
Ÿ Agricultural ammonia
Ÿ Butane
Ÿ Propane
Ÿ Natural gas liquids
Ÿ Refrigerants
Ÿ CO2
Ÿ Many more liqueifed gases
Model Z2000 / 521 Specification:
| Model | Z2000 |
| Suction flange | 2" |
| Discharge flange | 2" |
| Minimum RPM | 420 |
| Maximum RPM | 780 |
| Minimum temperature | -25°F (-32°C) |
| Maximum temperature | 225°F (107°C) |
| Max. working pressure psig (bar) | 400 (28.6) |
| Max. Differential pressure psig (bar) | 125 (8.6) |
| Internal relief | Yes |
| O-ring material options: |
|
| Seal seat material options: |
|
| Suction flange option | Yes |
| Discharge flange option | Yes |
| Maximum driver hp (kW) | 10 (7.5) |
