Many LPG piping systems do not provide ideal NPSH conditions for liquid pumps. As a result, the poor NPSH conditions lead to excessive pump maintenance. Since compressors are only exposed to vapors, they are not affected by poor NPSH conditions.
NPSH is defined as the total head of fluid at the centre line of the impeller less the fluid’s vapour pressure.
Many LPG pressurized tanks such as railcars and buried tanks have top unloading connections. A compressor is the perfect solution for transferring liquids to and from these types of tanks.
Applications
Ø Propane cylinder filling Bulk transfer
Ø Truck/barge/railcar unloading
Ø Liquid transfer/vapor recovery
Ø Tank/railcar unloading
Ø Agricultural ammonia
Ø Barge unloading
Ø Tank/railcar unloading
Ø Agricultural ammonia
Ø Tank evacuation for maintenance
Ø LPG/butane/ammonia
Ø Inert gas pad
Features and Benefits
| Self-lubricating piston rings: | Non-lubricated operation to minimize oil in gas |
| NPT or Class 300 RF connections: | Versatility for your application |
| Multiple mounting configurations: | Versatility for your application |
| High efficiency valves: | Quiet, reliable operation |
| Reversible oil pump: | Allows operation in either direction |
| Simplified top down design: | Routine maintenance is minimally invasive |
Operating Specifications
| Model | 91 | 291 | 491 | 691 |
| Bore of cylinder inches (mm) | 3.0 (76.2) | 3.0 (76.2) | 4.0 (101.6) | 4.5 (114.3) |
| Stroke inches (mm) | 2.5 (63.5) | 2.5 (63.5) | 3.0 (76.2) | 4.0 (101.6) |
| Piston displacement cfm (m3/hr) | ||||
| minimum @ 400 RPM | 4.1 (7.0) | 8.2 (13.9) | 17.5 (29.7) | 29.5 (50.0) |
| maximum @ 825 RPM | 8.4 (14.3) | 16.9 (28.7) | 36.0 (61.2) | 60.7 (103.2) |
| Maximum working pressure psig (bar g)1 | 335 (23.1) | |||
| Maximum brake horsepower (kW) | 7.5 (5.6) | 15 (11.2) | 15 (11.2) | 45 (33.6) |
| Maximum rod load lb (kg) | 3,600 (1,632.9) | 3,600 (1,632.9) | 4,000 (1,814.4) | 7,000 (3,175.1) |
| Maximum outlet temperature °F (°C) | 350 (177) | |||
| Maximum flow—propane gpm (m3/hr) | 50 (11.4) | 101 (22.9) | 215 (48.8) | 361 (82.0) |
Equipment Type and Options

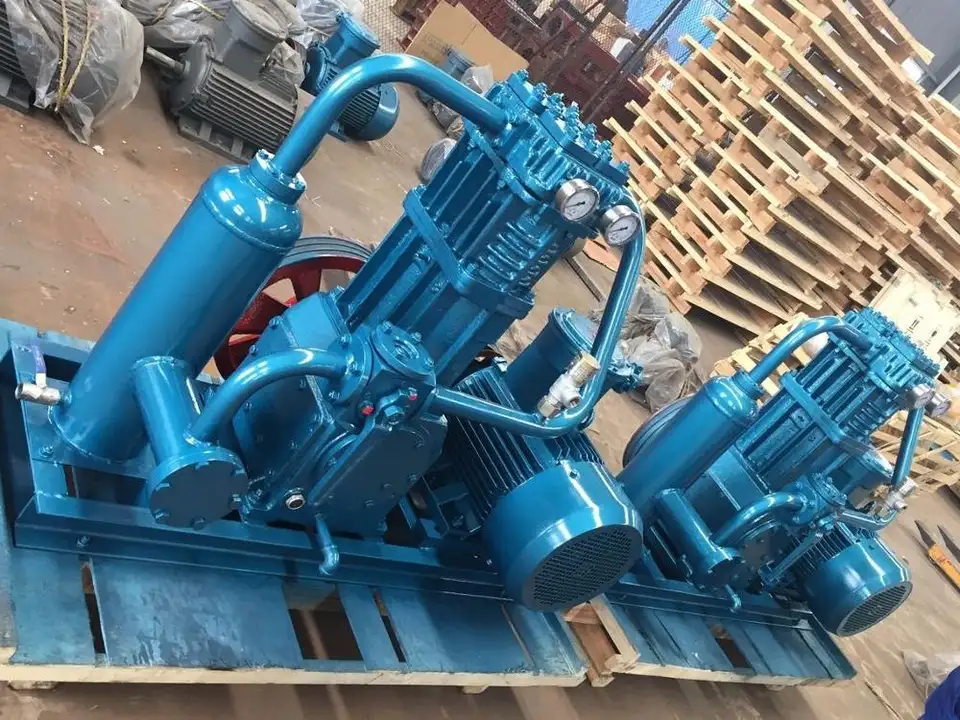

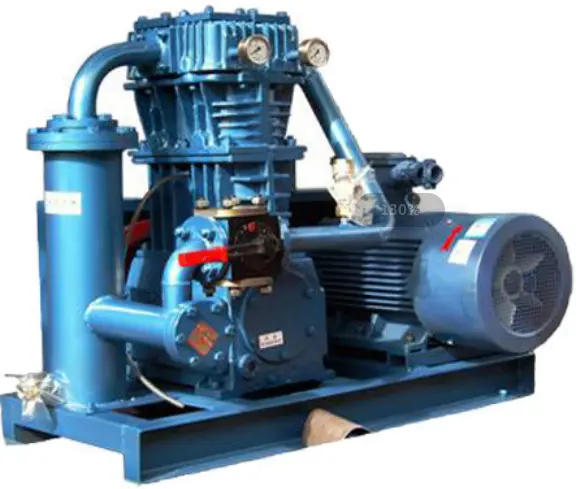

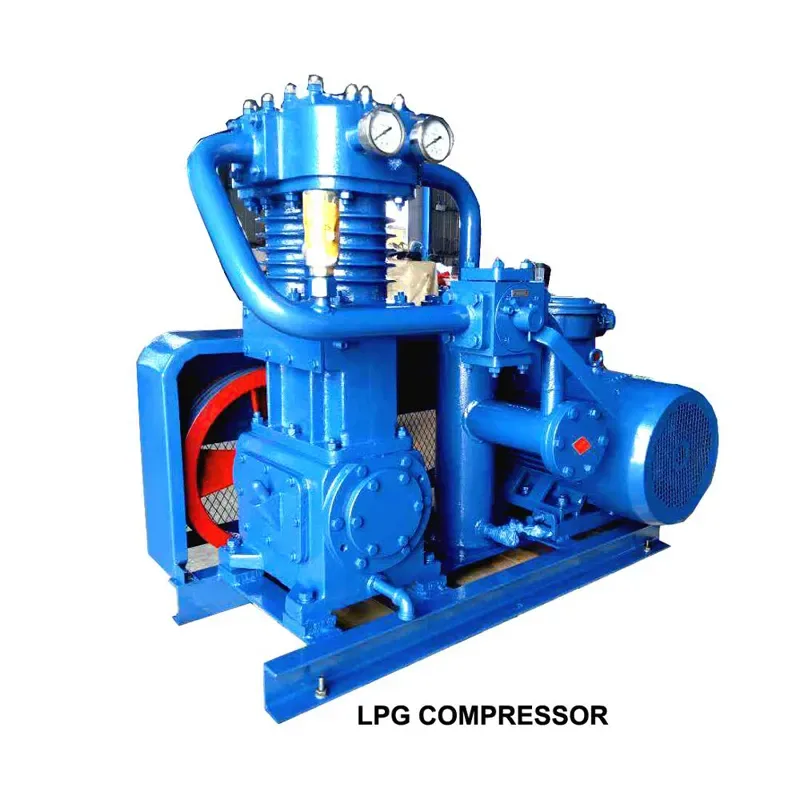

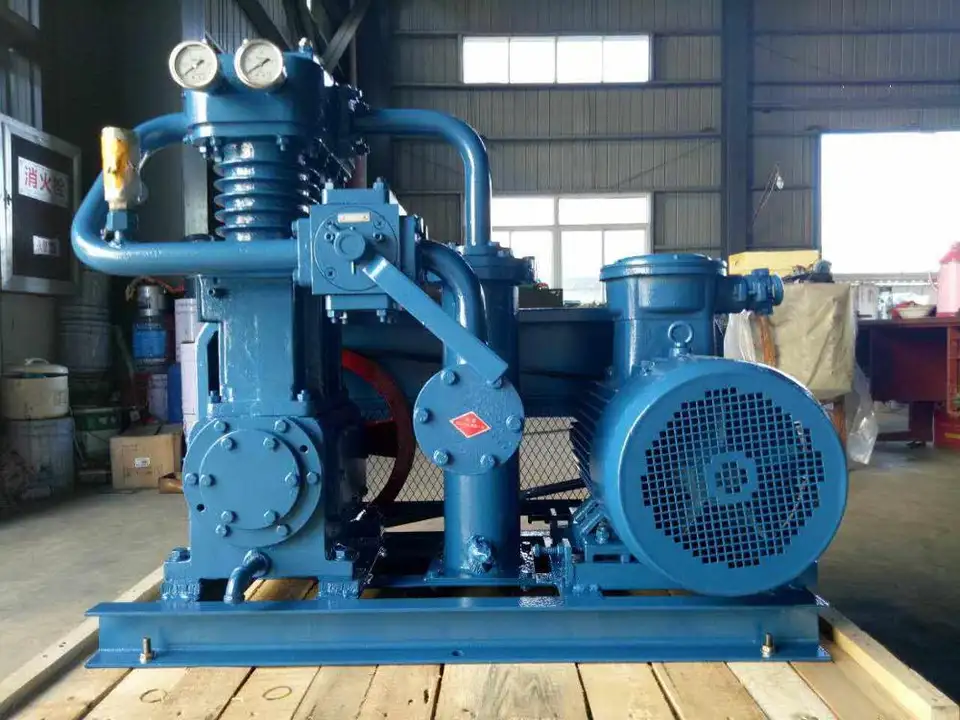

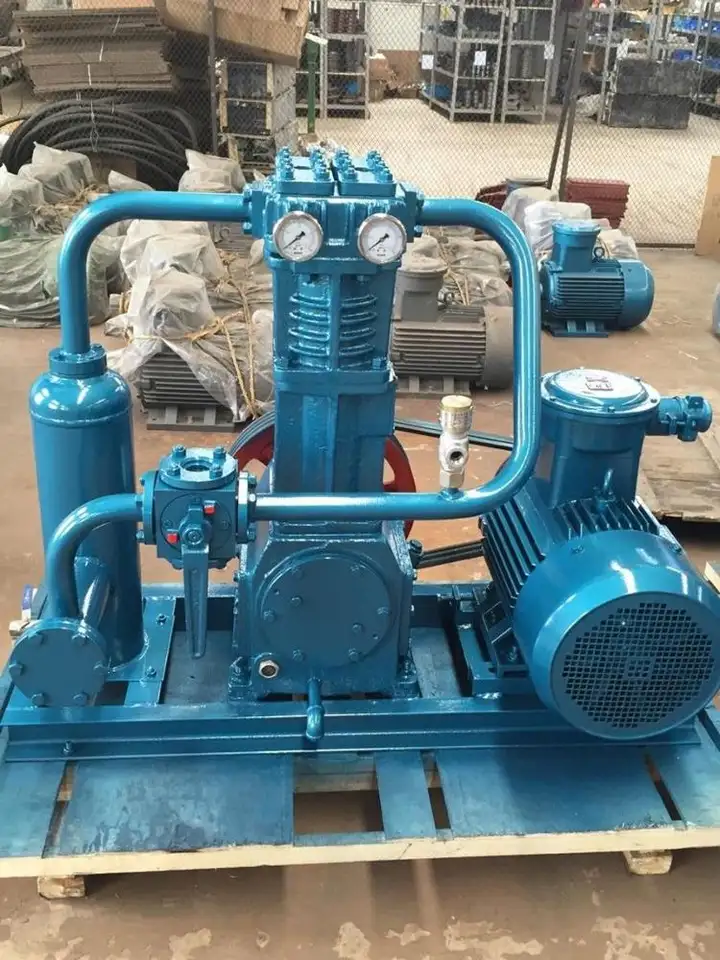

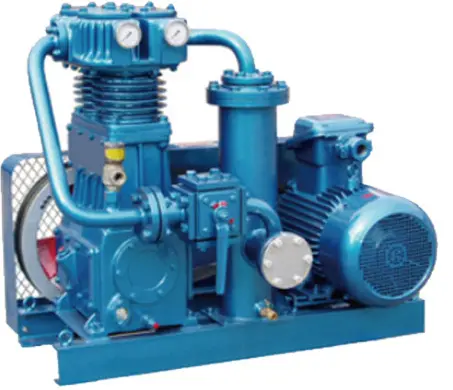

Ÿ Single-acting, vertical, reciprocating piston type vapor compressor
Ÿ Single packed rod
Ÿ NPT or Class 300 RF connections
