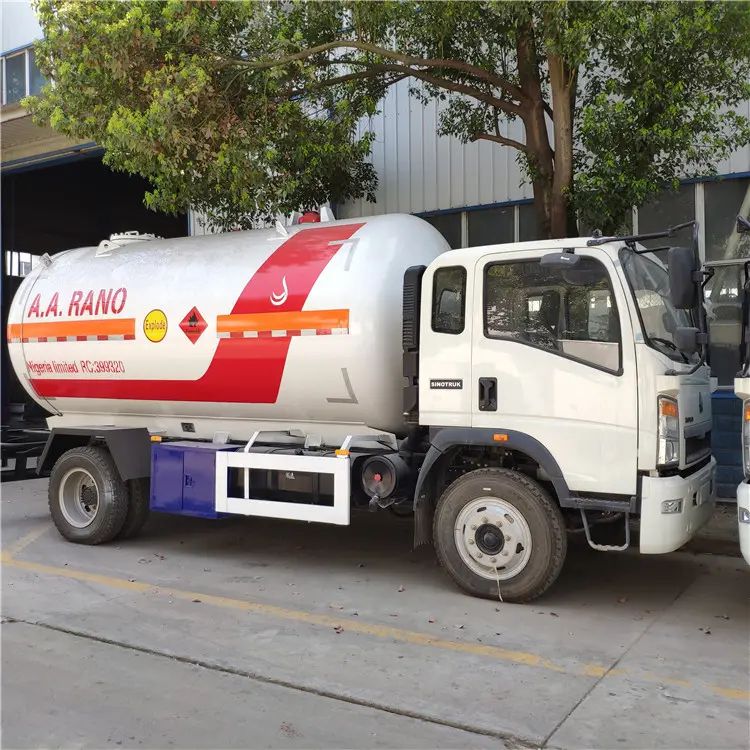

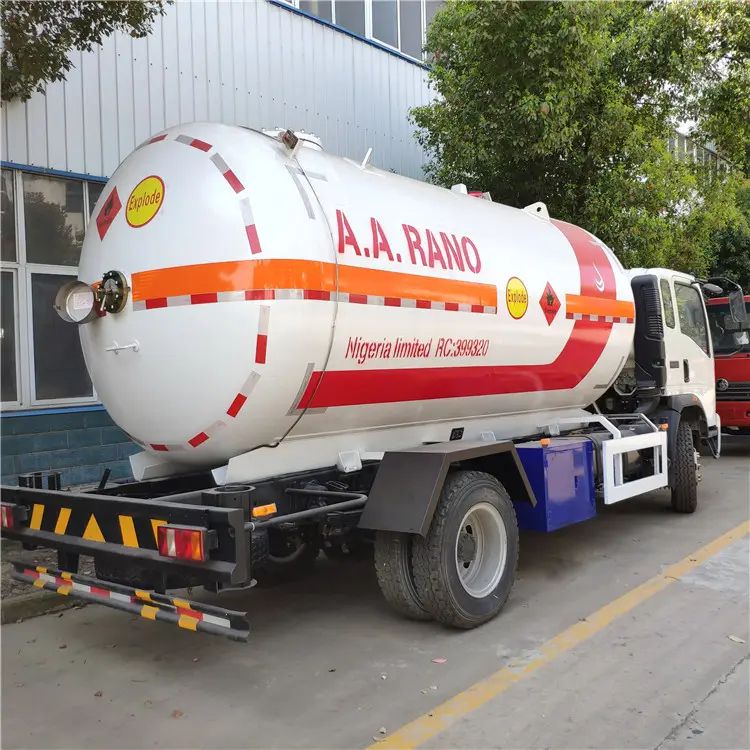

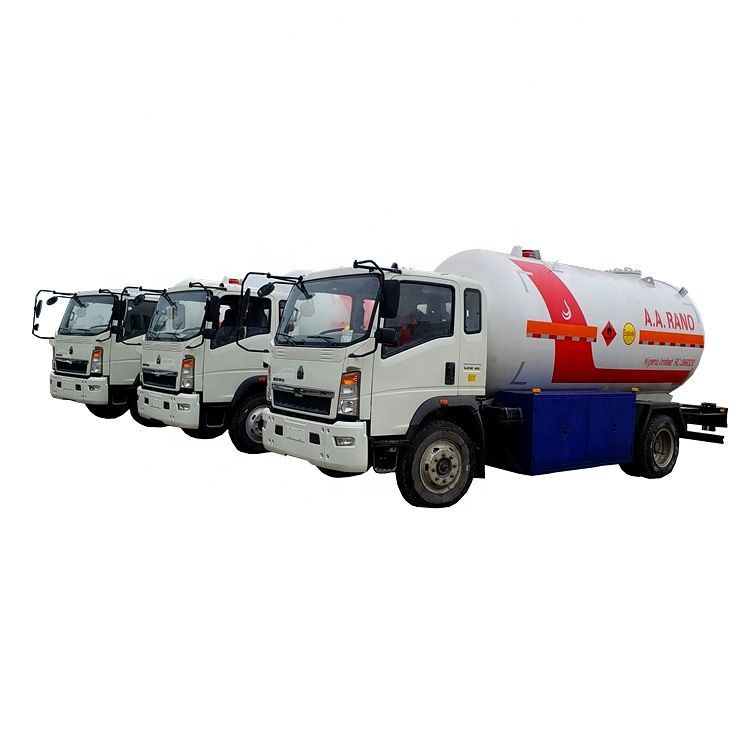

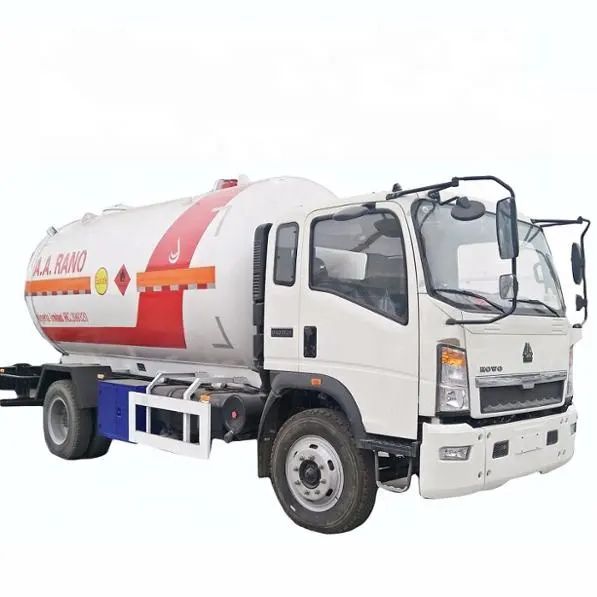

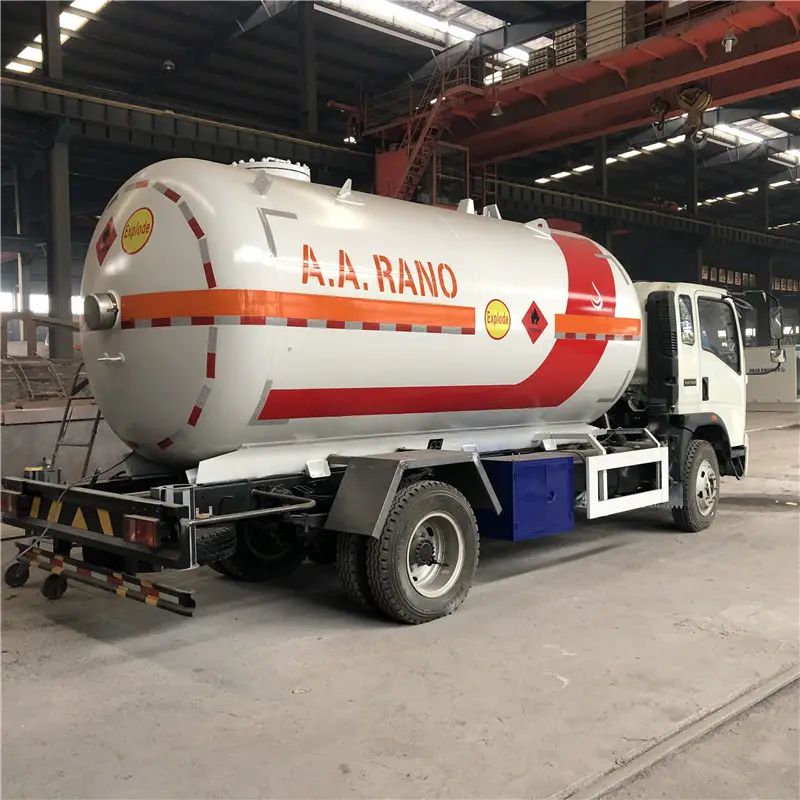

With different design,you can choose volume flow meter or lpg dispenser for propane filling truck. With above gas cylinder refilling truck ,you can start lpg delivery business easily.
Optional propane truck brand:Sinotruk Howo,Dongfeng,ISUZU,FAW,foton and other brands.
●5000liters,5000L,5 cbm
●10,000liters,10000L,10cbm,
●15000 Liters,15000L,15cbm,
●20cbm,20,000liters,20,000L
●35cbm 35,000liters,35,000L
Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

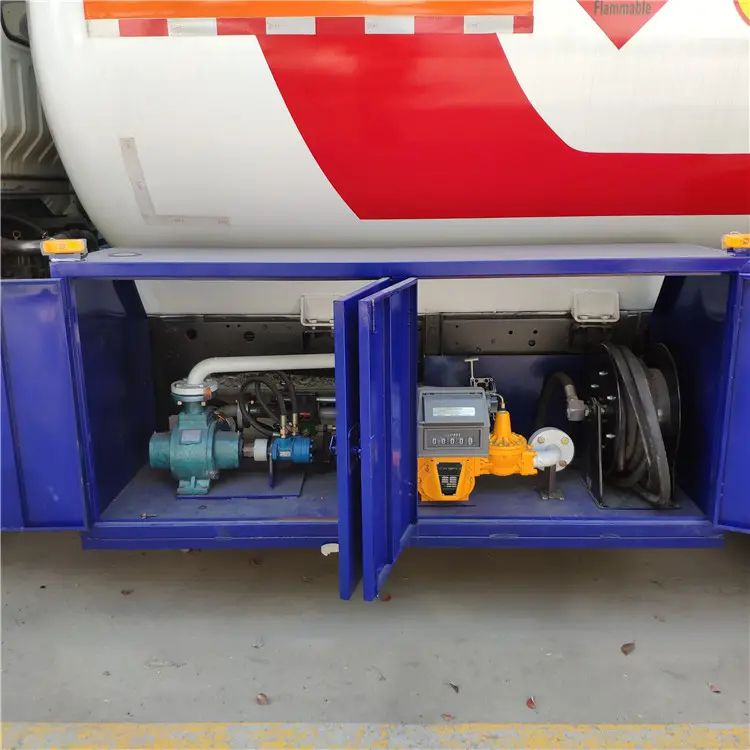

●2″ Flowmeter or single nozzle filling dispenser machine,

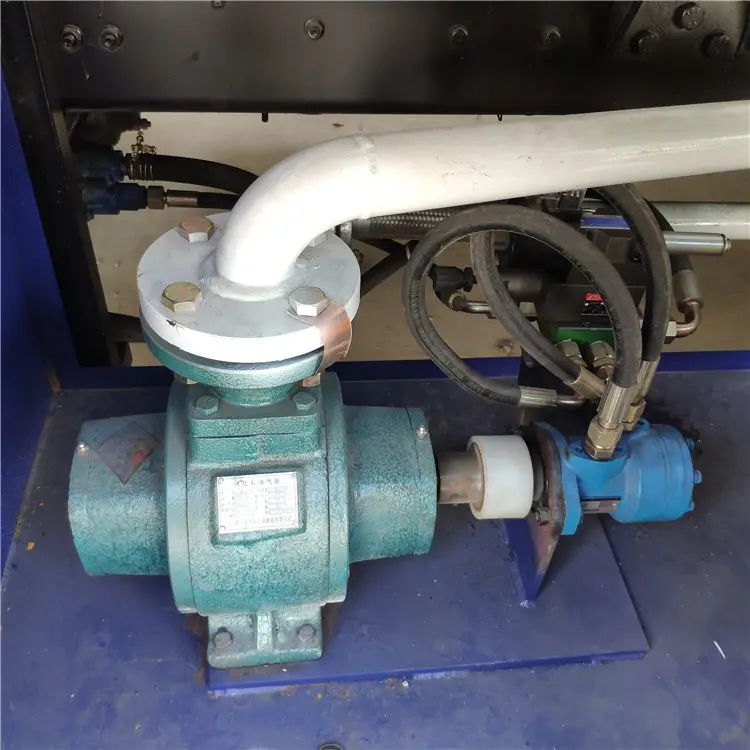

●2″ Corken or Chinese brand vane Pump,
●15/30/40 meters Filling Hose Reel,
●filling nozzle,
●radiator,
●hydraulic oil box
Specifications
| Item No. | Parameters |
| Overall Dimension | 7600x2300x2980 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 11460 kg |
| Curb Weight | 6460 kg |
| Payload | 5000 kg |
| F/R Axle Loading | 3200/8000 kg |
| Wheel Base | 4200 mm |
| Front/rear Tread | 1886/1845 mm |
| Approach/Departure Angle | 27/20 degree |
| Engine | Yuchai 4110,YC4E160-33 |
| Engine horsepower | 160 HP EUROIII |
| Displacement | 4260mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gear Box | DC6J65TC,6 forward& 1 reverse |
| Cabin | 2~3 Passenger allowed,with A/C |
| Tire | 8.25R20 (6 pc with 1 spare) |
| LPG tank | |
| Volume: | 10cbm |
| Tank material: | Q345R |
| Tank diameter: | 1800mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | As designed |
| Gas phase | DN50 |
| Liquid Phase | DN50 or DN80 for option |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| LPG pump | 1 |
| LPG Volume Flow Meter | 1 |
| Filling Hose | 15 meters |
| Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher holder | 2 |
| Exhaust shaft | At the front of truck for safety |
Other LPG tanker products we produce:
We produce the LPG tank , LPG tank trailer, LPG trucks, LPG Skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 3000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 3000 liter to 35000 liter.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
