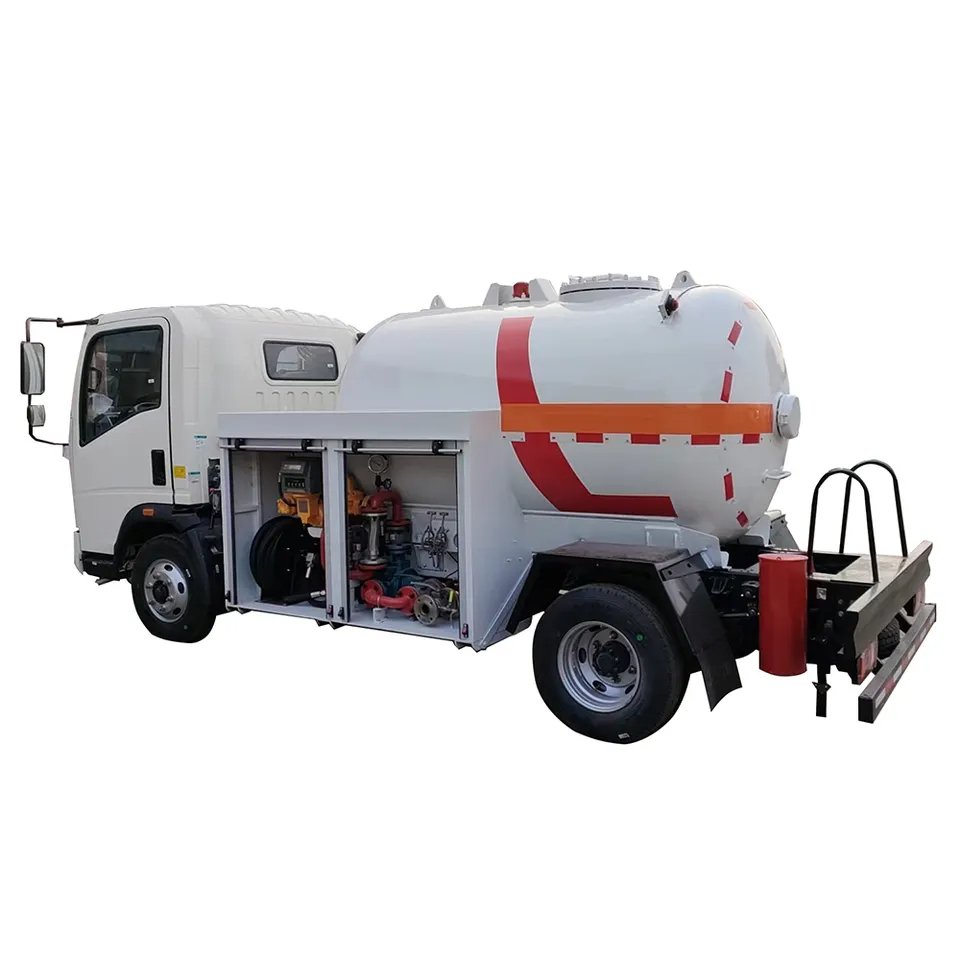

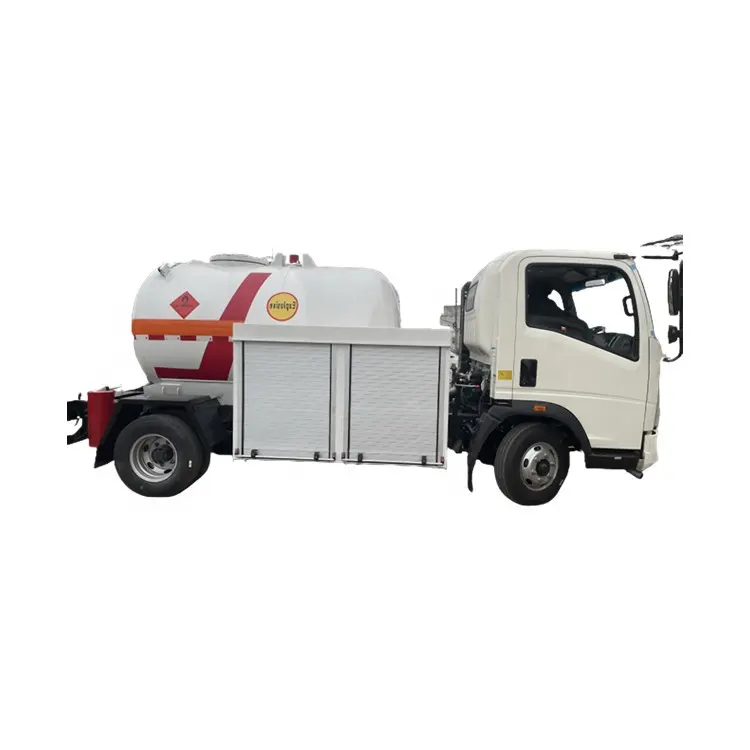

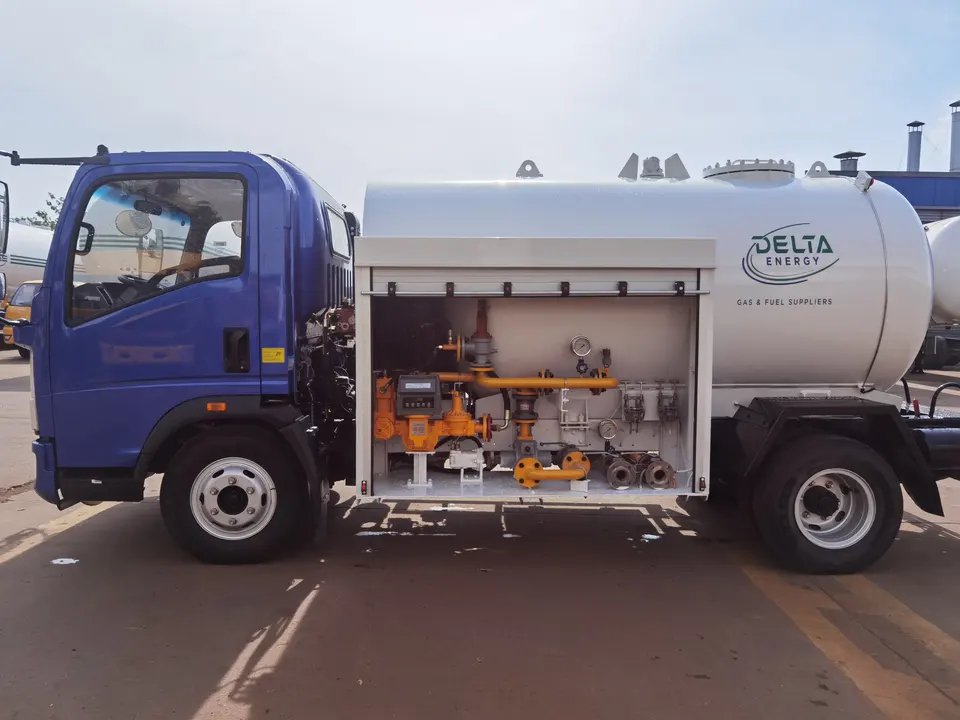

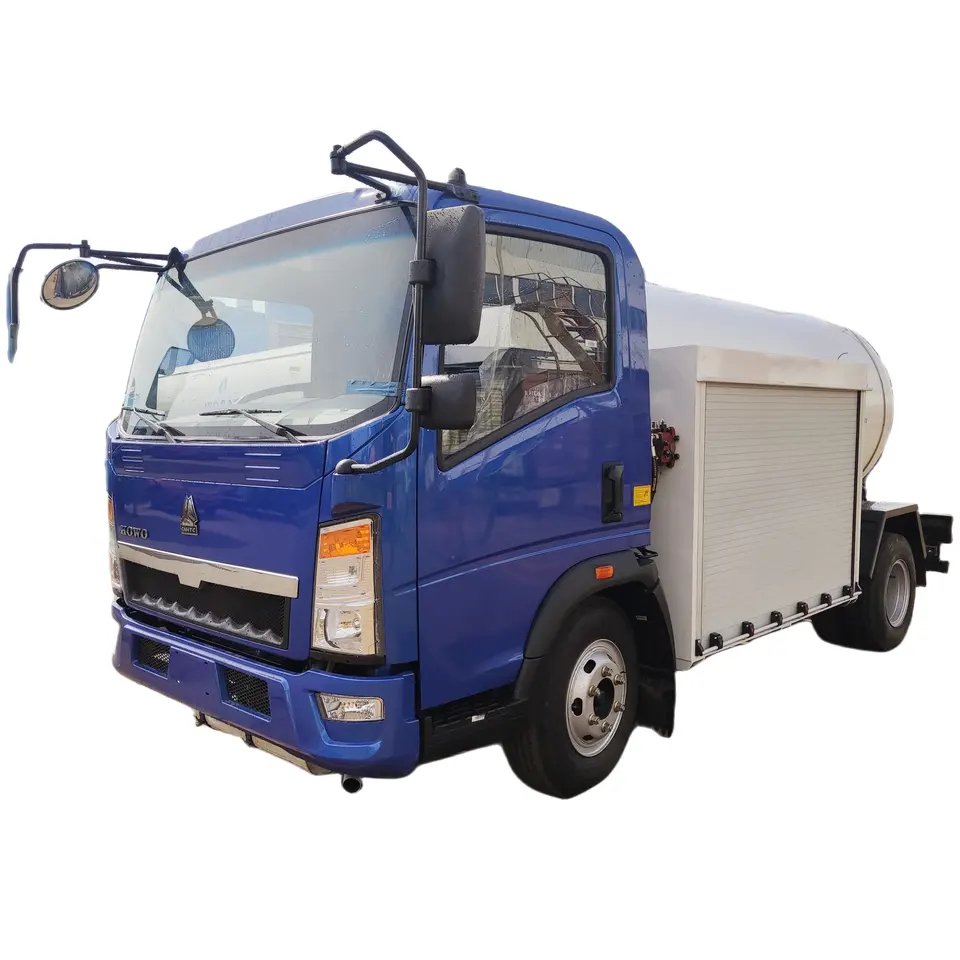

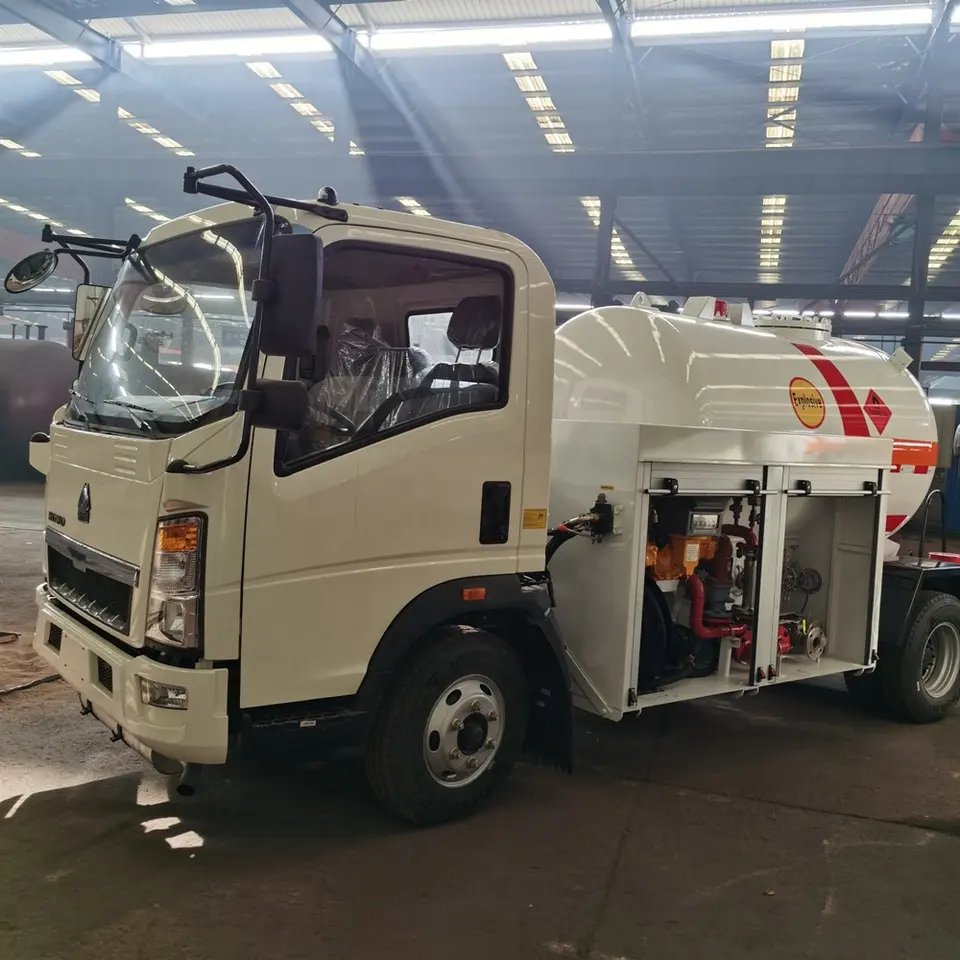

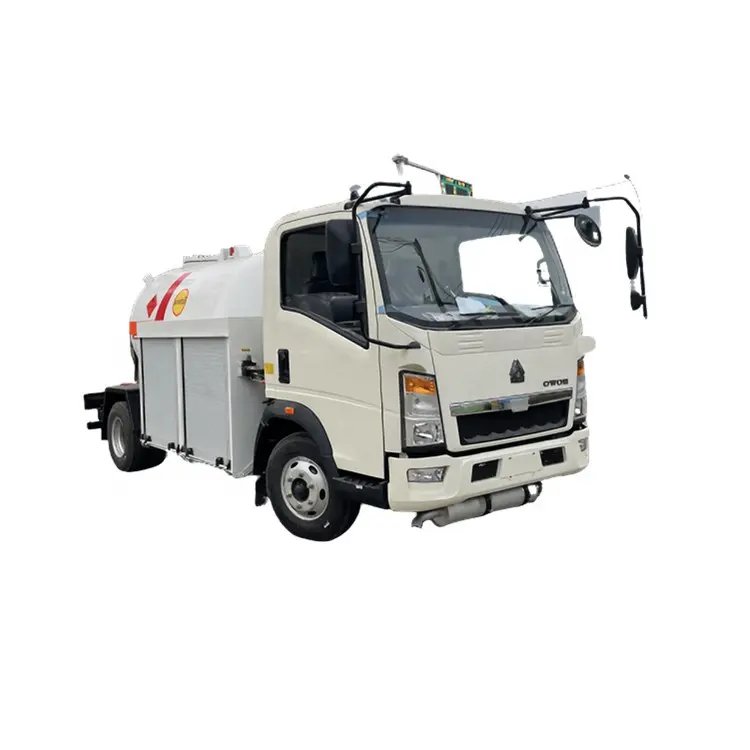

With different design,you can choose volume flow meter or lpg dispenser for propane filling truck. With above gas cylinder refilling truck ,you can start lpg delivery business easily.
Optional propane truck brand:Sinotruk Howo,Dongfeng,ISUZU,FAW,foton and other brands.
●5000liters,5000L,5 cbm
●10,000liters,10000L,10cbm,
●15000 Liters,15000L,15cbm,
●20cbm,20,000liters,20,000L
●35cbm 35,000liters,35,000L
Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

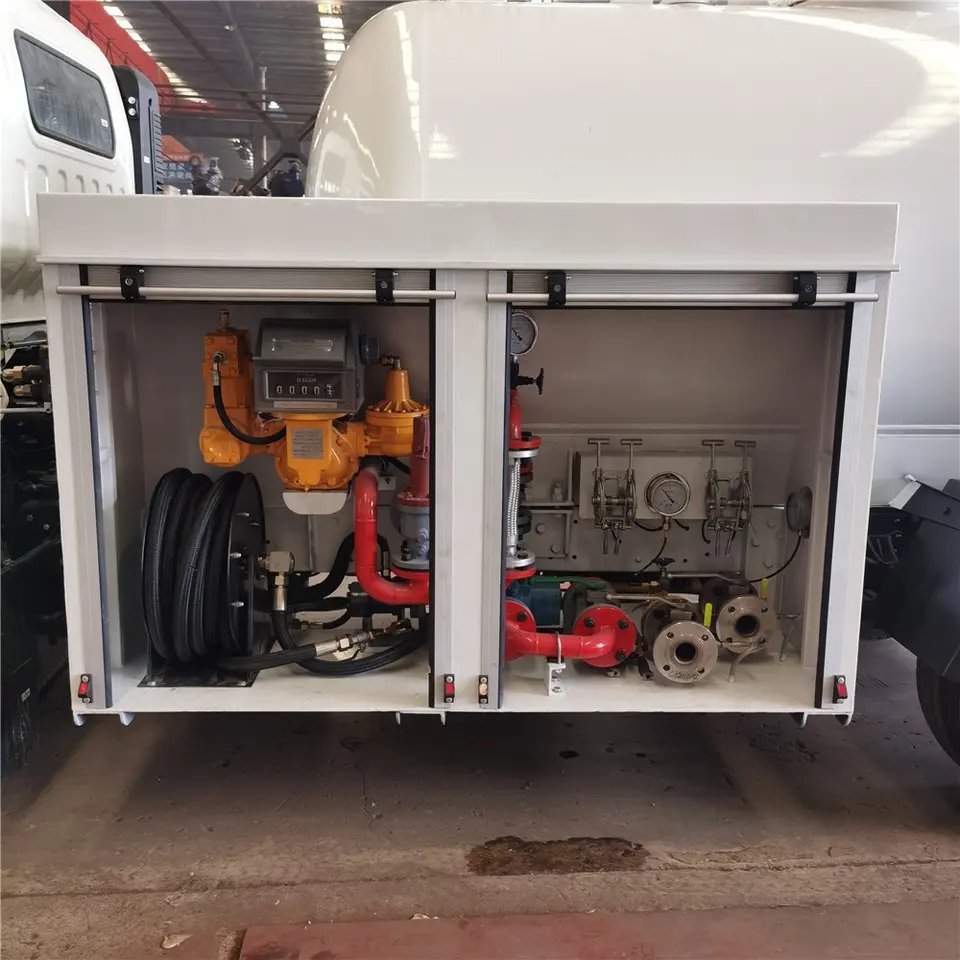

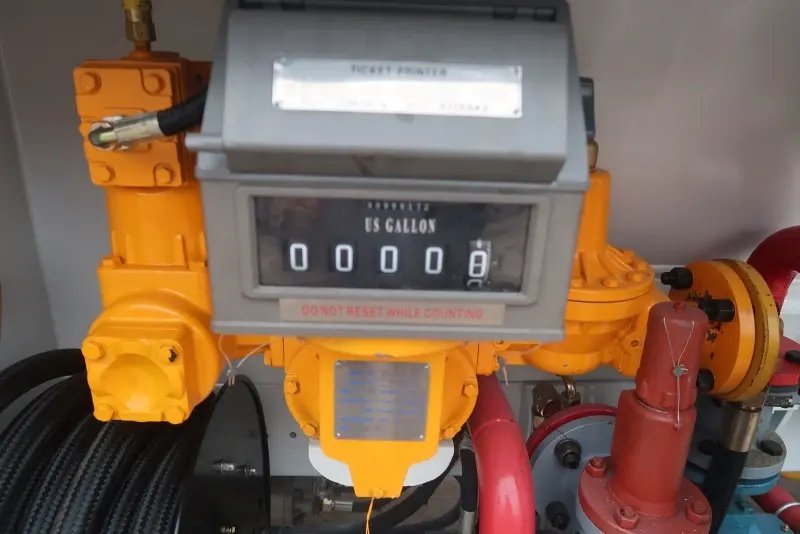

●2″ Flowmeter or single nozzle filling dispenser machine,
●2″ Corken or Chinese brand vane Pump,
●15/30/40 meters Filling Hose Reel,
●filling nozzle,
●radiator,
●hydraulic oil box
Specification
| Chassis 机壳 | Chassis Brand 底盘品牌 | Sinotruck HOWO |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 3360 | |
| Tire Specifications 轮胎规格 | 7.50R16 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 6200×2200×2500 | |
| Air Conditioner空调 | A/C | |
| Brake System 制动系统 | Air break | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 6 Forwards & 1 Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 95 | |
| Engine 引擎 | Model型号 | Yunnei |
| Horsepower(HP) 马力 | 116HP | |
| Emission standard 排放标准 | Euro 2/ 3/ 4/ 5 | |
| Cylinder No. 气缸数 | 4-cylinders in-line, turbo-charged intercooling | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 2 Passengers,single row
| |
| LPG tank | |
| Volume: | 5000iters |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| End plate thickness: | 10mm |
| Tank length: | 3070mm or as designed |
| Gas phase | Flange type,DN50/2” or according to customer request |
| Liquid Phase | Flange type,DN50/2” and DNDN80/3” or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Testing pressure | 2.21Mpa |
| Refilling Accessory | |
| LPG Pump | Chinese brand YQ15-5 |
| Flow rate:15.5M3/H | |
| 10 Mpa inlet pressure | |
| 780 r/min for rotation speed | |
| Radiator | 1 pc(to avoid high temperature of hydraulic oil during operation) |
| Hydraulic motor | 1 pc |
| LPG Dispenser | English remarks with printer for receipt |
| Filling hose | 15M,retractable |
| Filling nozzle | Filling nozzle for cylinder |
| Level Gauge | Chinese Float Ball type,at the rear of tank
|
| Safety Valve | 1,DN80 |
| Tool and Valve Box | Located at side of LPG bobtail |
| Thermometer | 1 pc |
| Pressure Gauge | 2 pc |
| Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 2 sets |
| Anti Static line | 1 set |
Other LPG tanker products we produce:
We produce the LPG tank , LPG tank trailer, LPG trucks, LPG Skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 3000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 3000 liter to 35000 liter.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
