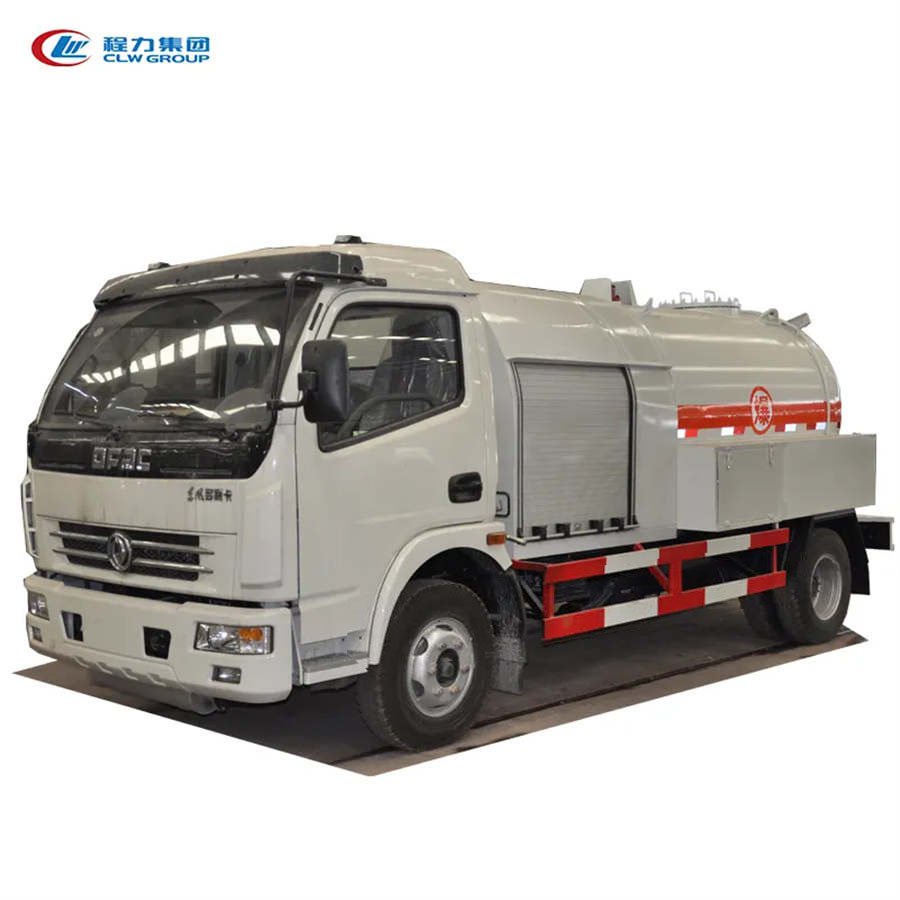

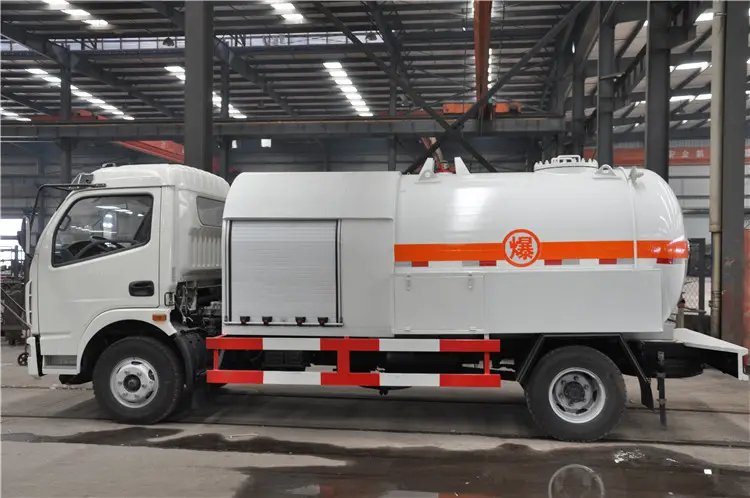

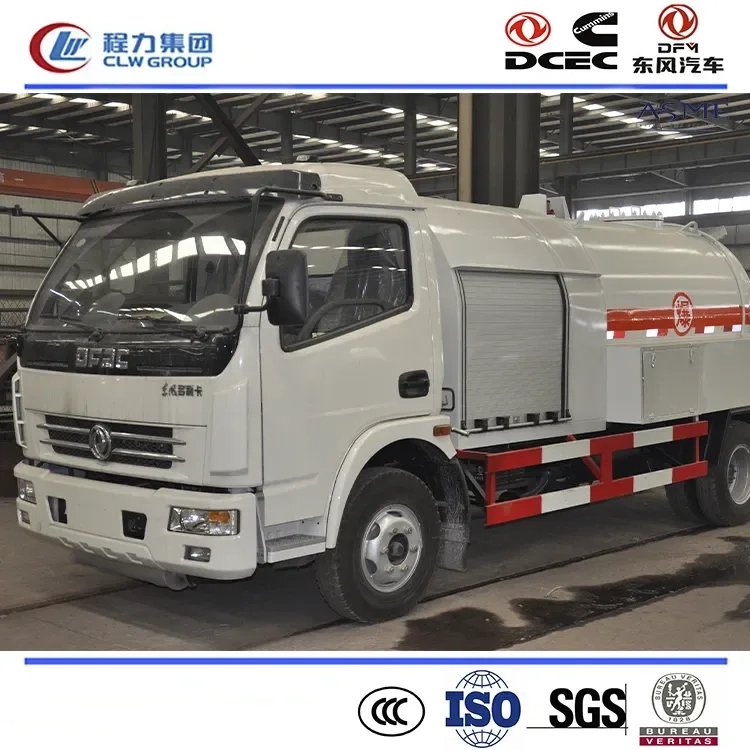

With different design,you can choose volume flow meter or lpg dispenser for propane filling truck. With above gas cylinder refilling truck ,you can start lpg delivery business easily.
Optional propane truck brand:Sinotruk Howo,Dongfeng,ISUZU,FAW,foton and other brands.
●5000liters,5000L,5 cbm
●10,000liters,10000L,10cbm,
●15000 Liters,15000L,15cbm,
●20cbm,20,000liters,20,000L
●35cbm 35,000liters,35,000L
Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

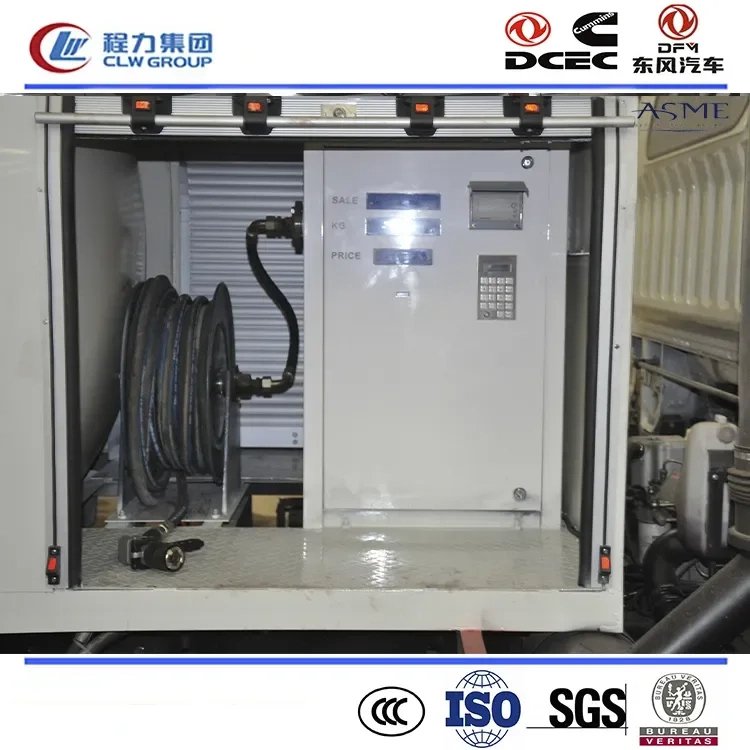

●2″ Flowmeter or single nozzle filling dispenser machine,
●2″ Corken or Chinese brand vane Pump,
●15/30/40 meters Filling Hose Reel,
●filling nozzle,
●radiator,
●hydraulic oil box
Chassis 机壳 Chassis Brand 底盘品牌 DONGFENG Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 3800 Tire Specifications 轮胎规格 7.50R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 6900×2100×2500 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 5 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 90 Engine 引擎 Model型号 Yuchai Power(kw)/Horsepower(HP)功率/马力 95/129 Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 4 Fuel type 燃料类型 Diesel Cabin 舱 2 Passengers,single row

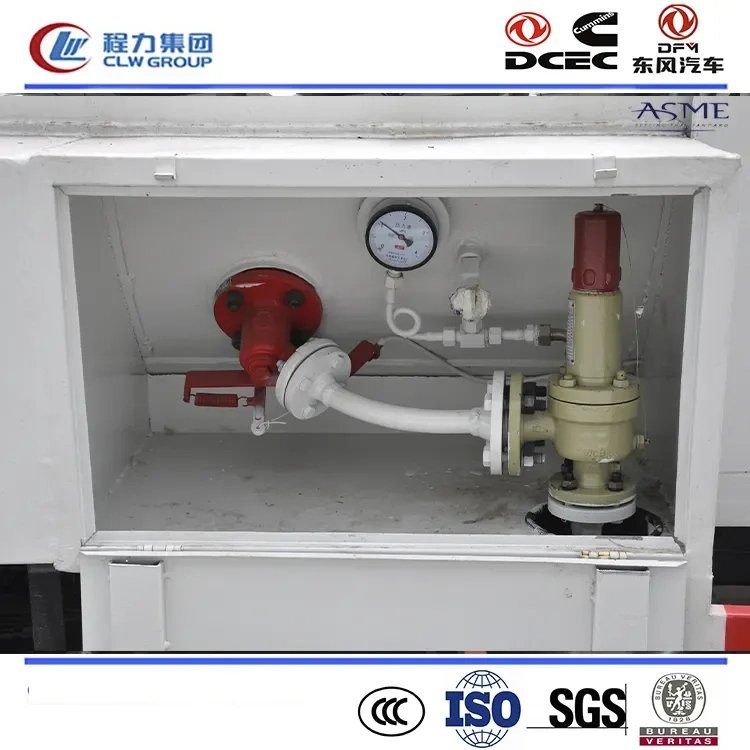

LPG TANK specification Design specific gravity 0.42 Kg/L Tankmaterial Q345R TankDesigned thickness End cover 9.35mm Tank body 9.37mm Design temperature 500C working temperature 20~500C Corrosion allowance 1.0mm Designed pressure 1.77Mpa Hydraulic test pressure 2.3MPa Leak test pressure 1.77Mpa Heat treatment Wholly get rid of stress Use Years Ten years LPGdispenser Function Dispenser LPG to LPGcylinder or other LPG truck Flow rate 10 ~ 60L/min Max working pressure 2.5Mpa LPG pump Function Delivery and pump LPG Flow rate 30-80L/min Working pressure 1.60Mpa Liquid level meter Type Rotary Model YWG-2.5 Nominal pressure PN2.5Mpa Surveying range 50-2300mm Precision 2.5Grade Emergencycutting valve Type Gas phase QCJ43F-2.5-8 Liquid phase QCJ43F-2.5-7 Nominal pressure PN2.5Mpa Nominaldiameter Gas phase DN25mm Liquid phase DN50mm Operation way Fluid pressure Closing time ≤10 Sec Melting switch temperature 70±5°C Safe valve Type A412F-2.5-16 Model Inner full lift Nominal pressure PN2.5 MPa Nominal diameter DN50 Opening pressure 1.7 MPa Closing pressure 1.86-1.94MPa Complete opening pressure <2.12 MPa Loading and unloading device Valve type Gas phase YKAG-3.3-6 Liquid phase YKAG-3.3-7 Model Quick tie-in Nominal Diameter Gas phase DN25mm Liquid phase DN50mm Pressure meter YN-100T Temperature gauge WTQ-280 Other equipment 1.double tool box 2.double valve box 3.doubleEmergency Cut-off Valve 4.single pipeliquid out 5.both side loading andunloading
Other LPG tanker products we produce:
We produce the LPG tank , LPG tank trailer, LPG trucks, LPG Skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 3000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 3000 liter to 35000 liter.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
