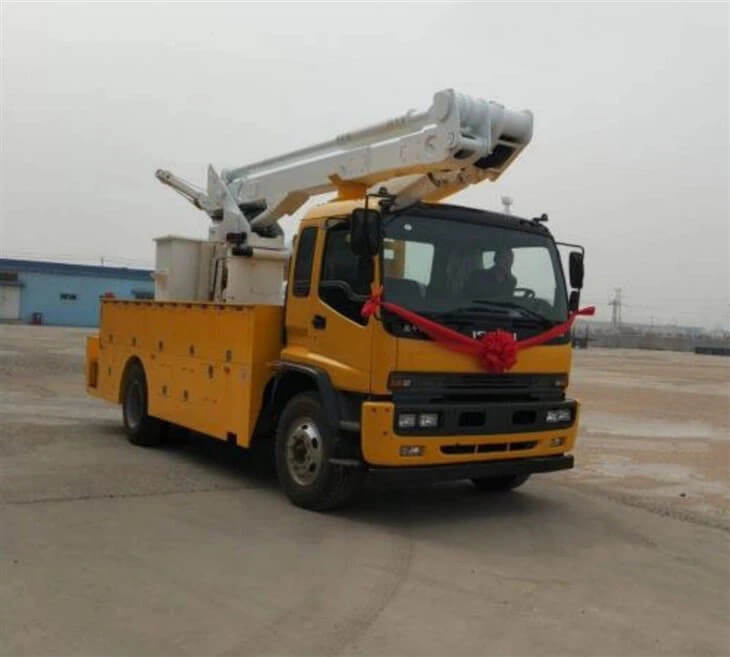

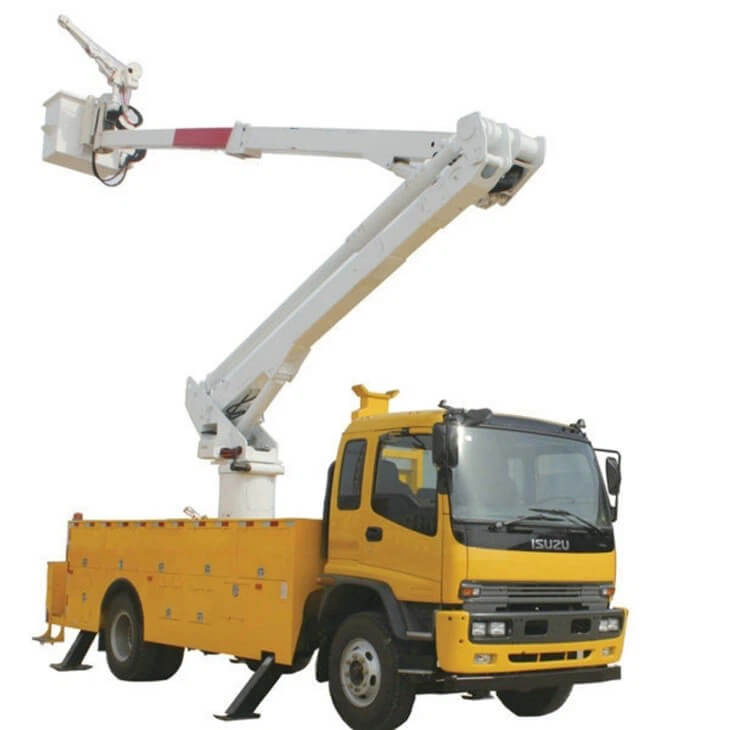

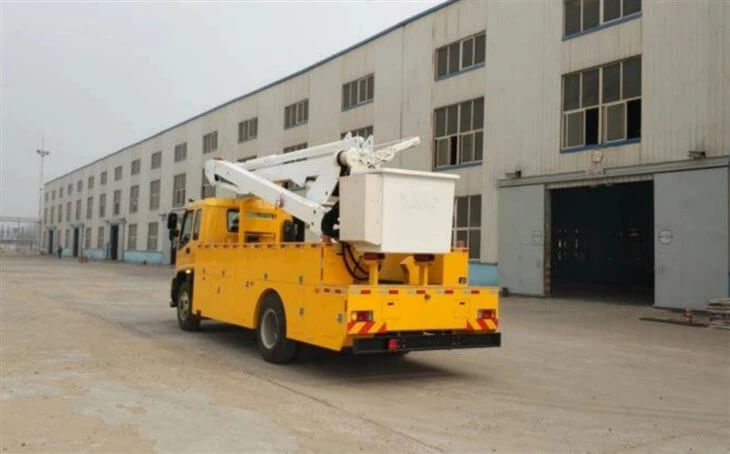

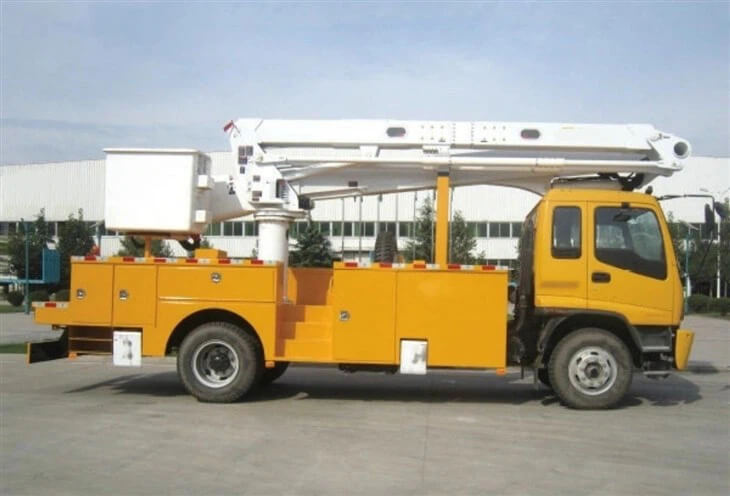

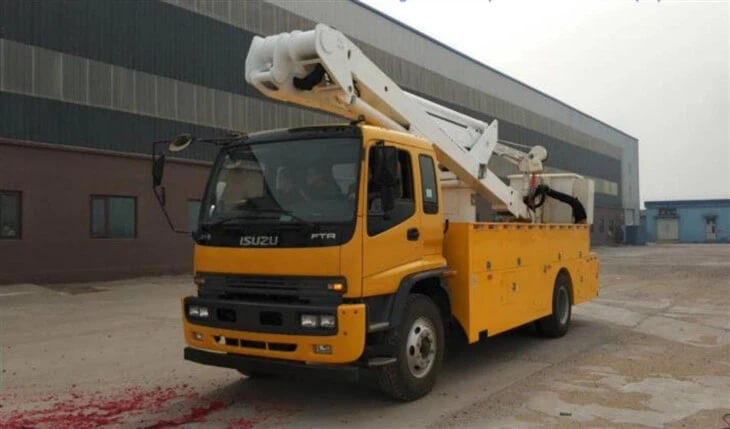

The Insulated Bucket Lift Truck prioritizes safety with its insulated design. It features a bucket made from non-conductive materials, providing a protective barrier against electrical currents.
This insulation is crucial when working near power lines or conducting maintenance on electrical systems. It significantly reduces the risk of electrical shock, ensuring the well-being of operators and other personnel on-site. Furthermore, the lift truck's stability and advanced safety features, such as emergency shut-off systems and motion alarms, add an extra layer of protection for operators.
Traditional methods of accessing heights, such as scaffolding or manual climbing, are not only time-consuming but also pose considerable risks to workers. The insulated bucket lift truck eliminates the need for cumbersome scaffolding and harnesses, streamlining the work process and reducing labor hours. This, in turn, translates into significant cost savings for businesses.
FEATURES
1. Insulated Bucket: One of the key features of this lift truck is its insulated bucket. This safety-enhancing component provides electrical insulation, protecting operators from potential electrical hazards when working near power lines or other energized equipment. The insulation ensures a secure working environment, reducing the risk of accidents and enhancing worker safety.
2. Versatile Applications: This lift truck's design and functionality make it versatile for a wide range of applications. From electrical utility work and telecommunications to tree trimming and maintenance tasks, it can handle diverse job requirements. Its adaptability makes it a valuable asset for various industries and service providers.
3. Operators can efficiently maneuver the lift truck, adjust the boom's height and angle, and control the bucket's movement with precision. The ergonomic design and straightforward operation contribute to increased productivity and reduce the learning curve for new operators.
4. Sturdy and Reliable Build: This lift truck is built to withstand demanding work conditions. Its robust construction ensures stability and durability, even in harsh weather or rough terrains. With regular maintenance, the lift truck promises long-lasting performance, reducing downtime and overall operational costs for businesses.
Standard Features:
1. The transmission power take-off is the first feature on this list, which provides power to operate the mechanical parts of the aerial work platform.
2. Hydraulic step-less speed regulation refers to a system that allows for precise control over the movement speed of the platform.
3. The 3D hydraulic mechanical handle control is another form of control that makes it easier for operators to maneuver the platform.
4. Imported USA Parker insulated hydraulic oil pipe is used to ensure optimal performance and safety during operation.
5. Imported Italy Walvoil multi-way directional valve ensures smooth movement and precision controls in all directions.
6. Imported USA Honeywell limit switch and pressure sensor provide additional safety features for accurate monitoring of critical systems
7. A flexible working platform can be adjusted automatically while luffing at any position to maintain stability during use
8. Insulated small lifting arm rotates, telescopes, and luffs with a high weight capacity – making it an excellent choice when working with tools
9. Equipped with manual leveling and bucket water dumping function, the automatic leveling system has an equal volume oil cylinder.
10. The remote throttle acceleration function effectively reduces fuel consumption by automatically switching between high and low throttle levels according to different actions.
11. Made of rigid steel and fiberglass insulation materials, the hybrid boom structure (articulated & telescoping) provides ground access to the platform for a wider operating range.
12. Providing double-layer insulation protection for ground personnel, excellent insulation performance is ensured through two levels of insulation on the upper and lower booms as well as the lower boom insulation section.
13. To prevent tipping, there is an outrigger off-ground protection device in place.
14. Ensuring safe and reliable vehicle operations, as well as driving safety, is possible through the interlocking device for getting on and off the vehicle.
15. The system safety of boom and outrigger oil cylinders is guaranteed through balance valves or hydraulic locks even if the oil pipe breaks.
16. Effectively responding to sudden faults, the vehicle anti-rollover system features a safety valve, emergency working pump, vehicle level gauge, engine start/stop, emergency stop, and electric emergency power source.
Optional Features:H-shaped outriggers
SPECIFICATION
| Chassis 机壳 | Chassis Brand 底盘品牌 | ISUZU FTR |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 5000 | |
| Tire Specifications 轮胎规格 | 11.00R20 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 8000×2500×3300 | |
| Air Conditioner空调 | A/C | |
| Brake System 制动系统 | Air break气压制动 | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 6 Forwards &1 Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 100 | |
| Engine 引擎 | Model型号 | ISUZU |
| Horsepower(HP) 马力 | 205hp | |
| Emission standard 排放标准 | Euro 5 | |
| Cylinder No. 气缸数 | straight-4 cylinders,4 stroke water-cooled,inter-cooling | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 1 Sleeper , 3 Passengers,single row
| |
