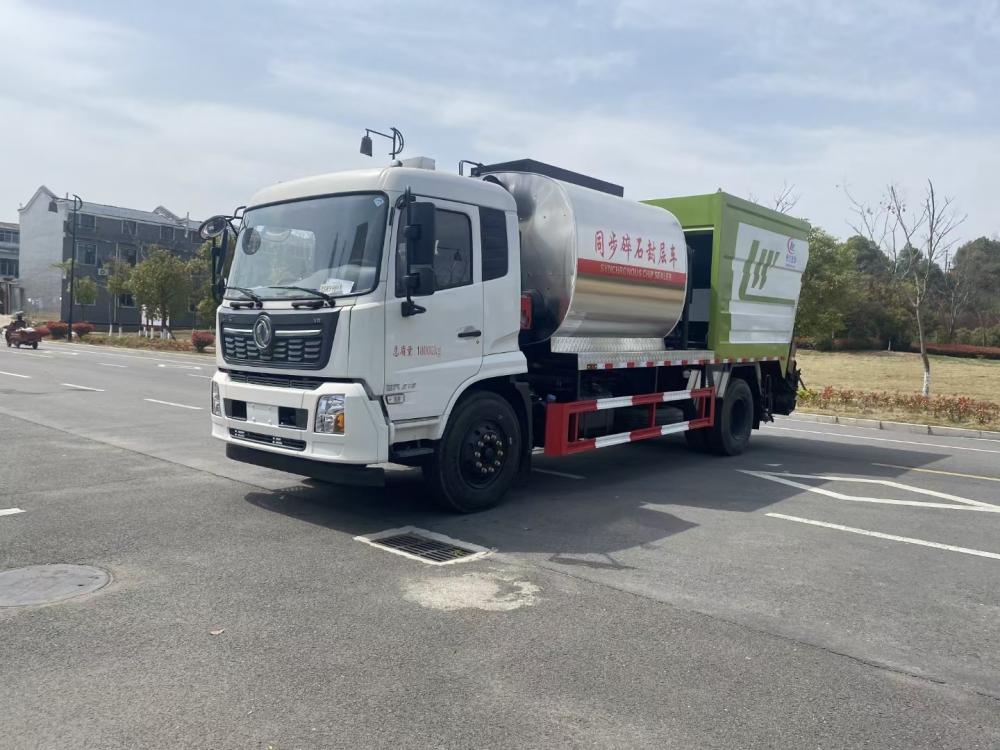

--Synchronous chip sealer(called synchronous gravel sealing truck) is widely used for road surface, bridge deck waterproofing and gravel sealing layer technology in the lower sealing layer. It is a special equipment that synchronizes the spraying of the asphalt binder and the spreading of the aggregate to make the most sufficient surface contact between the asphalt binder and the aggregate to achieve the maximum cohesiveness between them.
This equipment was specially designed to synchronously spraying asphalt binder and spreading aggregate. It can also separately spray asphalt binder and spread aggregate. Synchronous chip seal allows the asphalt binder and aggregate are brought into contact with the road surface within one second. The adhesive properties of the asphalt binder are at their maximum. The asphalt binder can bind the aggregate much better. It is very suitable to the construction and maintenance of the main road, urban road and rural road. It is mainly composed of truck chassis, insulated asphalt tank, combined aggregate hopper, Burner automatic-control heating system, asphalt circulating system, hot oil heating and circulating system, asphalt spraying system, aggregate spreading system, hydraulic system, pneumatic system, computer-control system, monitoring system, etc.. This equipment was firstly developed and manufactured by our company in China.
CLW brand Synchronous Chip Sealer is a synchronous crushed stone sealer with independent intellectual property rights developed and designed by clw group. This machine is improved on the basis of the same model of synchronous crushed stone, so that it can work in more severe conditions. Medium construction operation has enhanced the stability of equipment operation. It has achieved the integrated operation of machine, electricity and liquid, the equipment operation procedures have been simplified, the operation is simple and the technology of the whole machine has reached the world advanced level.
All asphalt spraying and aggregate spreading operations can be conducted by one operator/the driver in the cab.
It can spray different kind of asphalt, such as hot asphalt, asphalt emulsion, polymer modified asphalt, asphalt rubber, etc.
Asphalt and aggregate spraying/spreading rate is controlled by computer, which is not affected by the truck speed.
Equipped with an intelligent linkage for asphalt spraying and aggregate spreading system to guarantee asphalt and aggregate synchronously spraying/spreading.
Equipped with automatic-control asphalt heating and circulating system, to ensure the asphalt pipelines and nozzles "not to be blocked" and "not need to be flush by diesel oil".
Unique-designed combined aggregate hopper with lower working height, which is better suitable to work in city streets, under bridge and tunnel.
The computer control system introduces modularization design, which is reliable and easy for troubleshooting.
Equipped with a flexible hand spray system.
To realize fully three-overlapping asphalt spraying at two sides.
Open and close of the doors of aggregate hopper are controlled by pneumatic-control valves. Each door and nozzle can be controlled separately.
Asphalt and aggregate spraying/spreading width can be freely changed during working.
Equipped with two cameras for monitoring system. One camera monitors the asphalt and aggregate spraying/spreading status. Another one monitors aggregate quantity in the hopper. All status can be lively displayed on the monitor in the cab. Chassis 机壳 Chassis Brand 底盘品牌 DONGFENG Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 4500 Tire Specifications 轮胎规格 10.00R20 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 7900×2500×3000 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 8 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 90 Engine 引擎 Model型号 Cummins Power(kw)/Horsepower(HP)功率/马力 140/190 Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 6 Fuel type 燃料类型 Diesel Cabin 舱 3 Passengers,single row,1 sleeper
