Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;
Water Tower Fire Truck is a multi-functional fire fighting vehicle with the functions of a large water tanker, a foam truck, and a high-lift jet fire truck by adding fire extinguishing fluid and foam devices on the basis of the high-pressure spraying vehicle. It is mainly used in towns, industrial and mining Firefighting in low-rise buildings such as enterprises and petrochemical enterprises, oil tanks, warehouses and other buildings.

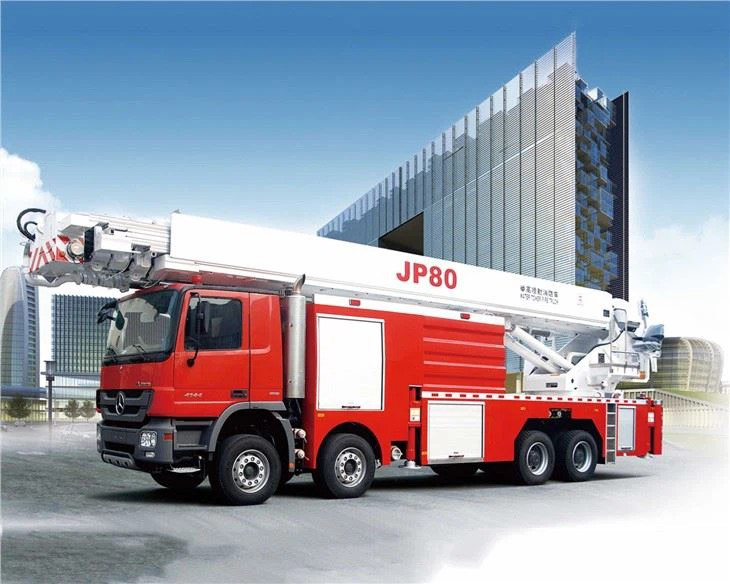

The JP80 80 M Water Tower Fire Truck has a maximum working height of 80m and is the world’s highest elevating water tower truck. It is equipped with Mercedes-Benz ACTROS4144 chassis, imported high-performance fire pumps, guns and fully automatic foam ratio mixing system imported from the United States, and 4300kg of fire-fighting fluid on board. It adopts 5+3 section telescopic boom combination boom, strong obstacle crossing ability, electro-hydraulic proportional control drive of the whole vehicle mechanism, fast and stable action, equipped with fire scene monitoring system and 20 safety protection devices, it is an excellent firefighting equipment for extinguishing high-rise building fires.
Features
The world's tallest meter-lifting jet truck is equipped with a German Mercedes-Benz Actros 4144/8×4 chassis, with an engine power of 320KW and a specific power of 7.5.
The fire protection system is fully functional. It adopts American power PSP fire pump and American Akron 3578/5177/3626 electronically controlled fire monitor. The water pump is driven by a full-power power take-off with reliable performance. Equipped with American Vigorous FSB120-C automatic foam ratio mixing system, the mixing ratio is 0.5-10%.
The vehicle is based on the distributed control technology of PLC and CAN bus, and adopts the redundant control technology of dual signal sensor detection, dual bus transmission, and dual controller processing, which has high integration and good reliability.
Adopting advanced electro-hydraulic proportional control technology, smooth movement and good micro-movement. The hydraulic system adopts a load-sensing pump + load-sensing valve to form a high-efficiency closed-center control system. The system has low starting pressure, stable speed, energy saving and high efficiency.
| | ITEM | | UNIT | SPEC |
| Size | Length | mm | 12920 | |
| Height | mm | 4000 | ||
| Width | mm | 2500 | ||
| Weight | Rated loading capacity of extinguishing agent | Water | Kg | 2880 |
| Foam | Kg | 1460 | ||
| Gross Tare Weight | Kg | 38110 | ||
| Gross Vehicle Weight | Kg | 42600 | ||
| Driving | Max. Driving Speed | Km/h | ≥90 | |
| Max. Horse Power | kw | 320 | ||
| Specific Power | — | 7.5 | ||
| Performance | Rated Lifting Height | m | 80 | |
| Max. Working Reach | m | 26 | ||
| Outrigger Span (vertical × horizontal) | mm | 6750×5430 | ||
| Working Speed | Boom action time | S | ≤310 | |
| Outrigger extension time | S | ≤40 | ||
| Fire Apparatus | Fire Pump | Rated Capacity | L/Min | ≥5400 |
| Rated Pressure | MPa | ≥1 | ||
| Water Suction Depth | m | ≥7 | ||
| Water Diversion Time | S | ≤50 | ||
| Fire Monitor | Water Monitor Rated Capacity | L/S | ≥48 | |
| Water Monitor Rated Pressure | MPa | ≤0.8 | ||
| Water Monitor Fire Range | m | ≥70 | ||
| Foam Monitor Rated Capacity | L/Min | ≥4800 | ||
| Foam Monitor Rated Pressure | MPa | ≤0.8 | ||
| Foam Monitor Fire Range | m | ≥55 | ||
| Elevation | ° | -135~0 | ||
| Rotation | ° | ±45 | ||
