Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;
Aerial Ladder Fire Truck is a kind of urban firefighting vehicle integrated with high-altitude rescue and firefighting functions. It inherits existing mature elevating fire truck technologies, and makes breakthroughs in superstructure aerial ladder R&D and manufacturing technology, turntable leveling-control technology, dual-rotation and dual-screw winch telescoping technology, multiple-mode operating curve control technology, independent working platform leveling control technology, and other core technologies.
In the world of firefighting, every second counts. When lives are on the line and flames rage uncontrollably, firefighters need cutting-edge equipment to combat the inferno effectively. Among the latest innovations in this critical field is the 32M Aerial Platform Fire Truck, a technological marvel that is revolutionizing the way fire departments respond to emergencies.

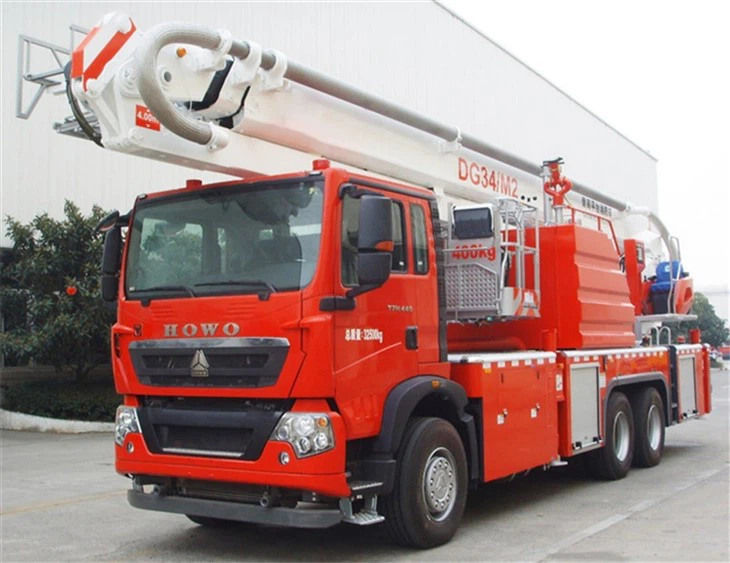

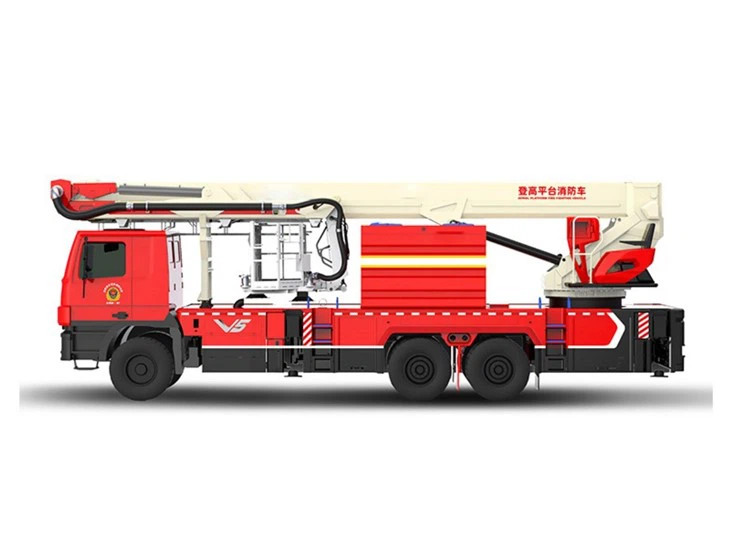

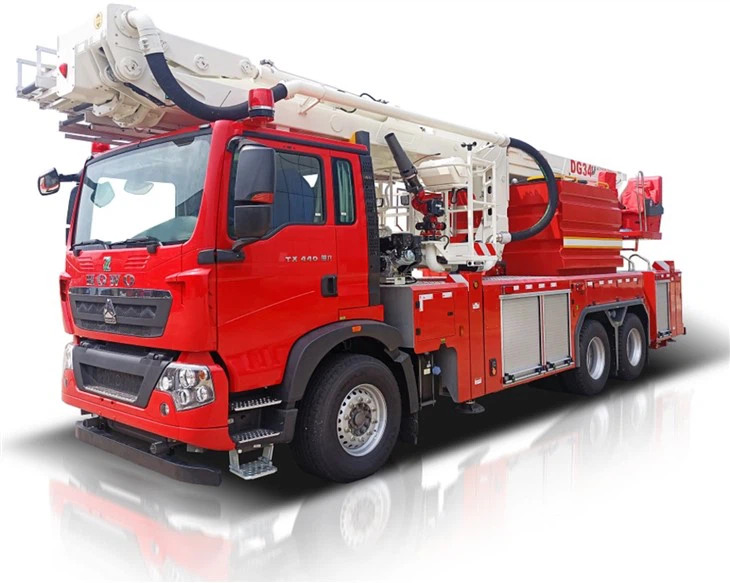

Standing tall and mighty, the 32M aerial platform fire truck is a towering presence in the arsenal of any modern fire department. This high-reaching vehicle, often referred to as a "ladder truck" or "aerial ladder," is equipped with a versatile aerial platform that extends up to an astounding 32 meters (over 100 feet) in the air. This unprecedented height allows firefighters to reach blazes in high-rise buildings, rescuing trapped individuals and tackling flames from above.
One of the most remarkable features of the 32M aerial platform fire truck is its advanced maneuverability. Designed with precision and innovation, this firefighting giant boasts an articulated boom that can be extended and positioned with incredible precision. This capability enables firefighters to access hard-to-reach areas and deliver powerful streams of water or foam to suppress flames effectively. Moreover, it can rotate 360 degrees, offering unparalleled flexibility in directing its firefighting capabilities.
Safety is paramount in firefighting, and the 32M aerial platform fire truck is no exception. Equipped with state-of-the-art safety systems, including stabilizing outriggers, firefighters can operate this vehicle with confidence, even in challenging conditions. These outriggers provide a secure base for the aerial platform, ensuring stability during firefighting operations.
The 32M aerial platform fire truck is not just about extinguishing flames; it's also a lifesaving tool. Firefighters can use the extended platform for high-angle rescue operations, extracting individuals from dangerous situations with precision and speed. This multi-purpose functionality makes it an invaluable asset in urban firefighting scenarios.
SPECIFICATION
| Operating Performance Spec. | |
| | |
| Outrigger Span(V x H) | 5,500x6,200 |
| Max Working Height | 34m |
| Max Working Outreach | 20m |
| Cage Rated Capacity | 500kg |
| Boom operating time | ≤100s |
| Outrigger leveling time | ≤30s |
| Max allowed wind speed | ≤12.5（level 6）m/s |
| Driving Performance Spec | |
| Full Load Weight | 31,750kg |
| Power | 327kw |
| Cab Seat | 2p |
| Emission Standard | National/Euro 6 |
| Fire Operating Performance Spec | |
| Max flowing of water pump | 6,000L/min |
| Flowing of fire pump vehicle system | 4,200 1.4L/minMPa |
| Max flowing of fire monitor | 4,800 0.8 L/minMPa |
| Flowing of fire monitor vehicle system | 3,000 1.6 L/minMPa |
| Tank Volume | 4,000L water+2,000L foam |
| Rated spraying reach of fire monitor | 75m(water); 71m(foam) |
| Fire Monitor Rotation Angle | -46~+46° |
| Fire Monitor Pitch Angle | -45~+52° |
| Chassis | |
| Chassis model | ZZ5357TXFV464MF1 6X4 |
| Engine Model | MC11.44-60 Inline six-cylinder turbo charge diesel engine |
| Engine power | 327kW 1,900r/min |
| Engine Torque | 2,100Nm/(1,000-1,400r/min) |
| Max speed | 90km/h |
| Wheel torque | 4,800mm+1,400mm |
| Emission standard | National 6 |
| Gearbox | Manual |
| Electric system | Generator: 2.2kw/28v Battery: 2x12V/180Ah |
| Fuel system | ≥300L |
|
Braking system
| Service brake: Double circle brake; |
| Parking brake: Spring actuated and air cut off parking brake;
| |
| Assist brake: Engine exhaust brake;
| |
| With ABS | |
| Tire | 385/65R22.5; 315/80R22.5 |
| Superstructure | |
| Cage | |
| Rescue cage overview | Automatically flip over the inverted ladder; Automatically deployment and leveling； Equipped with working light and safety rope |
| Cage rated capacity-outreach | 500kg(without spraying water); 150kg(spray water) |
| Platform area | ≥1.6m2 |
| Leveling Method | The electro-hydraulic intelligent independent leveling system |
| Self-protection spray flow | ≥284L/min |
| Ladder | |
| Section | 3-section telescopic boom + 1-section crank boom + flying boom |
| Main material | Special high-strength shaped pipe |
| Telescopic mechanism | Winch+ imported high flexible steel wire rope and pulley block to achieve synchronous telescopic |
| Operation curve | See chart |
| Ladder operation model | Footswitch + handle step-less control; electronic control forced operation; manual forced operation |
| Turntable | Water, electricity, and hydraulic integrated central rotary device, any 360 continuous rotation |
| Outrigger | |
| Type | H-Type |
| Horizontal Span | 5500mmx6200mm |
| Outrigger operation mode | Automatic unfolding; Electronic control + manual; Manual forced |
| Waterway System | |
| Fire monitor Model | Akron PLKD10/80B-5177 (MADE IN GERMANY) |
| Water pump model | CB10/100-TB(MADE IN CHINA) |
| Max flowing of water pump | 56,000 1.0 (L/minMPa) |
| Flowing of water pump vehicle system flow | 4,200 1.4(L/minMPa) |
| Max flowing of fire monitor | 4,800 0.8 (L/minMPa) |
| Flowing of water monitor vehicle system flow | 3,000 0.8 (L/minMPa) |
| Water pump type | Electric control of the fire monitor which can achieve working conditions of horizontal rotation, pitch, and water curtain |
| Tank Volume | 4,000L（for water）+2,000kg(for foam) |
| Tank material | High-quality stainless steel, bottom plate thickness 5mm, side plate thickness 4mm, roof 3mm |
| Telescopic pipe | High-strength aluminum alloy pipe |
| Other pipe
| Stainless steel or aluminum alloy |
| 2 Water suctions(Front left and right sides) DN150 | |
| 4Water inlet(Front left and right sides) DN80 | |
| 4 water outlet(Front left and right sides) DN80 | |
| 1 water outlet(cage front) DN65 | |
| 1 Extension foam suction DN50 | |
| Electrical system | |
| Control system | CAN bus intelligent control system (controller + display screen + control program) |
|
Operating table
| Turntable left operating table (with seats) |
| Cage operating table | |
| Vehicle rear operation panel | |
| Screen | High brightness LCD color display, located in the turntable operation table and cage operating table, Vehicle rear operation panel |
| Light System
| Cage front left and right sides of the configuration of high-brightness lighting |
| Yellow warning light around the cage | |
| High-intensity lighting on both sides of the ladder | |
| Ladder support with high-intensity lighting | |
| Turntable console, ladder configuration with channel lighting | |
| Each instrument panel is equipped with instrument lighting | |
| Equipment box with configuration lighting | |
| Outrigger with warning light | |
| Outrigger illuminator for illuminating the underside of the leg support | |
|
Alarm light system
| A circular warning light on the left and right sides of the cab. |
| Integrated operation of alarm lights and alarms in the cab | |
| Various functions such as fire alarm sound, siren sound, and external call. | |
| A square red/blue strobe light on the left and right of the rear of the car. | |
| Intercom system | Turntable and bucket using non-handheld cable intercom system |
| Cables and connectors
| Adopt the imported connector with waterproof performance up to IP67 |
| Ladder chain and imported cables | |
| Automatic disconnect charging device | The battery can be charged by 220V mains, and the charging plug will automatically fall off when the fire truck starts |
| Reversing assist system | With reversing alarm buzzer, reversing camera, and cab monitor; |
| | |
