Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;

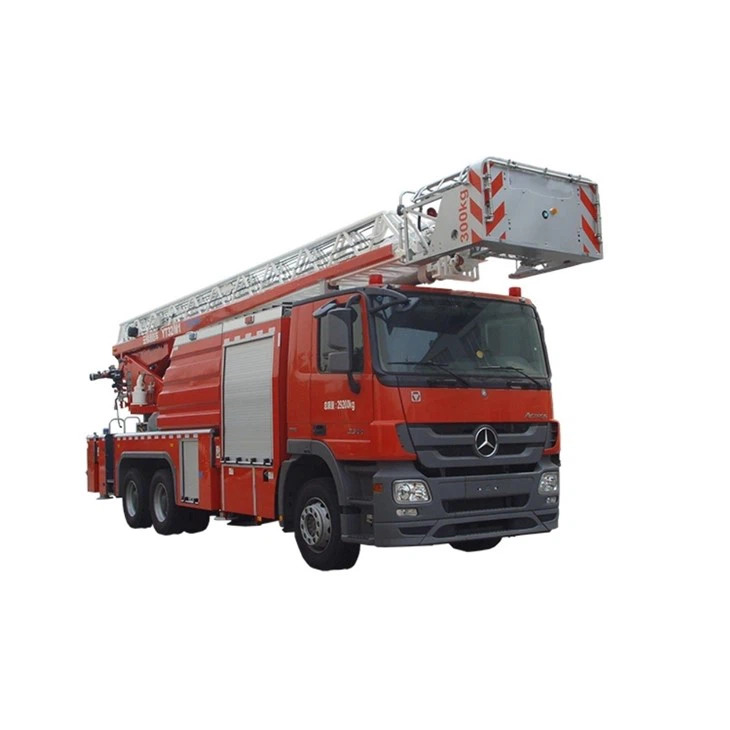

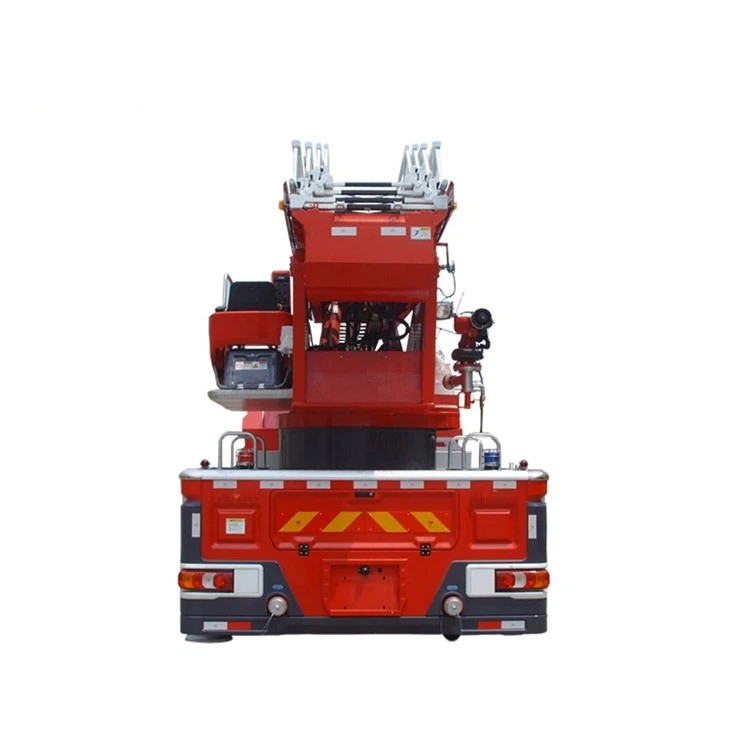

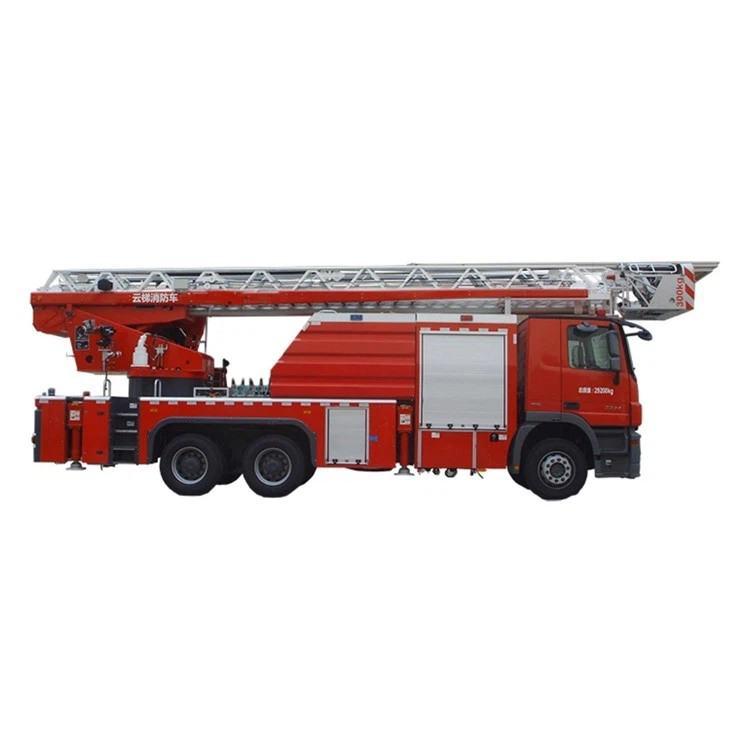

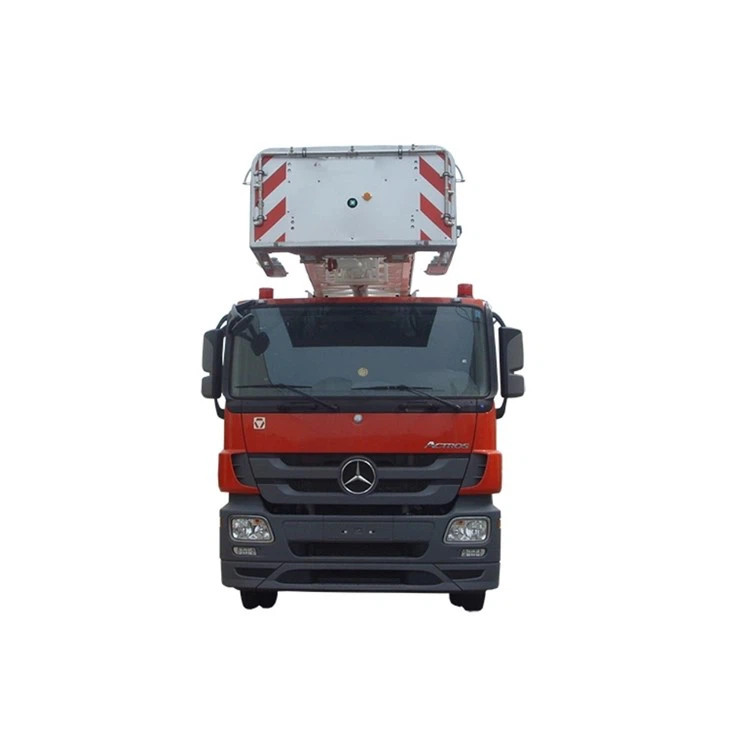

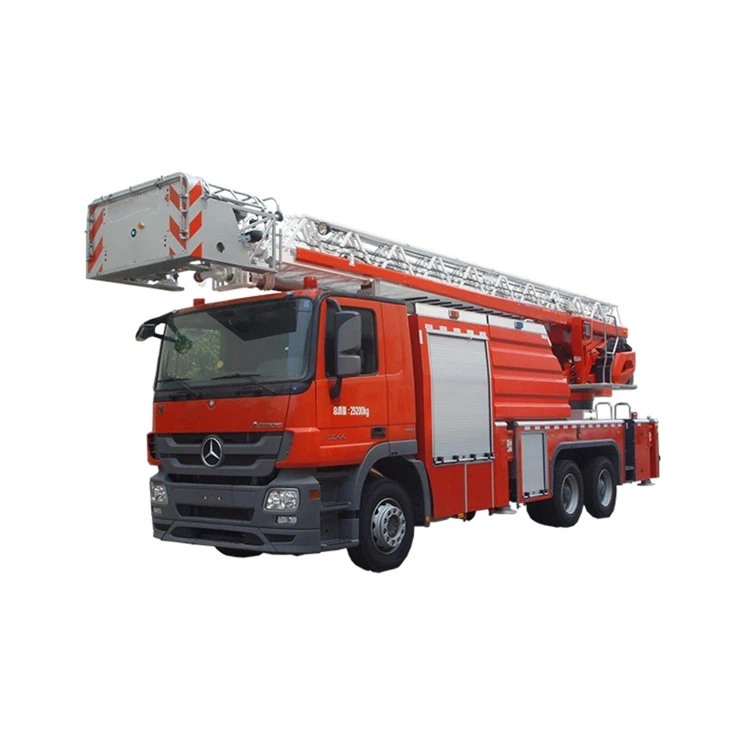

Aerial Ladder Fire Truck is a kind of urban firefighting vehicle integrated with high-altitude rescue and firefighting functions. It inherits existing mature elevating fire truck technologies, and makes breakthroughs in superstructure aerial ladder R&D and manufacturing technology, turntable leveling-control technology, dual-rotation and dual-screw winch telescoping technology, multiple-mode operating curve control technology, independent working platform leveling control technology, and other core technologies.
FEATURES
Structure Features:
1. Chassis: This fire truck boasts a 34-meter aerial ladder and is built upon a Mercedes Benz chassis.
2. Superstructure: It is equipped with a superstructure featuring a full swing, three-section telescopic arms, and a curved arm design.
3. Control Mechanisms: The vehicle utilizes electric control and hydraulic drive in all its moving components, ensuring easy operation, flexible maneuverability, safety, reliability, and practicality.
4. Easy Operation: The electric control and hydraulic drive systems make for straightforward operation.
5. Flexibility: The vehicle offers flexible movement, enhancing its versatility in various firefighting scenarios.
Advantages:
1. Automated Control: Computerized control enables automatic deceleration and stopping at preset positions, resulting in quick, labor-saving, convenient, and stable operation.
2. Precise Control: The automated control system provides a wide range of speed adjustments, fine-tuned motion, and precise movements.
3. Obstacle-Crossing Capability: With a combination of straight telescopic and folding booms, this fire truck excels in navigating obstacles, providing a broader operational range compared to straight Boom Fire Truck s.
4. Enhanced Scope: The vehicle's unique design grants it a wider operational scope than traditional straight boom fire trucks.
5. Safety: The computer-controlled deceleration and stopping mechanisms contribute to overall safety during operation, reducing the risk of accidents.
| Operating Performance Spec. | |
| Chassis Brand | Mercedes Benz Arocs 3346E6 |
| Overall dimension | 11,000*2,550*3,830 |
| Drive model | 6*4 |
| Max.net power of engine | 335/1,600kw/rpm |
| wheelbase | 4,800+1,350mm |
| Minimum turning diameter | ≤23m |
| The Max speed | ≥90km/h |
| Maximum gradability | ≥30% |
| Outrigger span | 6,200mm(longitudinal span) |
|
| 5,800mm(horizontal span) |
| The Max. working height | 34m |
| The Max. working outreach | 20m |
| Loading of the working cage | 500kg |
| Water tank capacity | 5,000kg |
| Foam tank capacity | 1,200kg |
| Fire pump | HALE CB10/100-RSD |
| Rated flowing of fire pump | ≥70L/s |
| Rated pressure of fire pump | ≥1.4MPa |
| Fire monitor | Akron PLKD10/120B-5178 |
| Rated flowing of fire monitor | 64L/s |
| Rated pressure of fire monitor | ≤1.0MPa |
FAQ
1.what can you buy from us?
Answer: Fire Truck, LPG Tank Truck ,Fuel Tank Truck, Tank Truck , Cleaning Truck , Garbage Truck , Tow Truck , Bucket Truck ,Construction Truck, Ambulance , Van Truck ,Truck Mounted Crane,Utility Truck,Tank Semi Trailer, Semi Trailer
2. What is the payment term?
Answer: FOB,CIF; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
