Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;

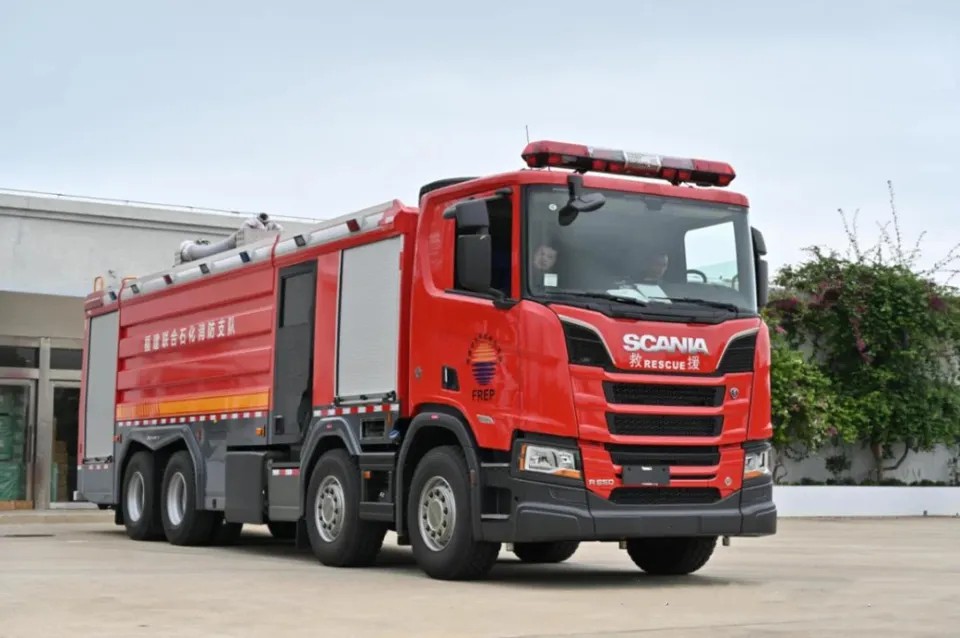

25 Tons SCANIA Heavy Duty Fire Truck with 10000L/min. Water Pump
A. Introduction: This is the super heavy duty fire truck. Its capacity could be 16T water and 9T foam. The water pump's flow rate is 10000 Liters/min. and the roof water/foam monitor's flow rate is 9000 Liters/min. with 90m shoot range.
B. The Whole Fire Truck
| No. | Main Items | Technical Parameters |
| 1 | Model | SCANIA5434GXFPM250 |
| 2 | Dimensions | 11930mm×2500mm×3860mm |
| 3 | Full Load Weight | ≤42600kg with Full Load |
| 4 | Number of the Crew | 2 (including driver) |
| 5 | Max. Speed | 85-90km/h |
| 6 | Liquid Tank Capacity | 16000L Water & 9000L Foam. PP composite material liquid tank (Never in Rust) |
| 7 | Dry powder tank volume | 2X3000kg |
| 8 | Roof Fire Monitor | 9000L/min. with 90m Shot Range |
| 9 | Painting | U.S. PPG brand, Red color |
C. Superstructure of the Heavy Duty Fire Truck
1. Aluminum Compartment
1.1 Material: All made of high-strength aluminum alloy profiles.
1.2 Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
1.3 Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
1.4 Ladder frame: A set of multifunctional ladder frame is set on the top.
2. Electrical System
2.1 Warning light: Long row warning light are set on the top; The control devices are installed in the cab.
2.2 Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
2.3 Strobe lights: Strobe lights for warning are arranged on the upper part.
2.4 Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
2.5 Roof lighting: LED lights are provided inside the top of the carriage.
2.6 Side Indicater Light: Built-in yellow indicater lights are installed on pedals.
| No. | Main Items | Technical Parameters |
| 1. | Centrifugal Water Pump | |
| 1.1 | Brand | Optional |
| 1.2 | Model | Optional |
| 1.3 | Flow Rate | 10000 Liters/Min. 10.3bar |
| 1.4 | Vacuum Pump | Electric vacuum pump |
| 1.5 | Priming Manner | Automatic |
| 1.6 | Suction Height | 7 meters |
| 1.7 | Priming Time | ≤100 seconds |
| 1.8 | Location | In Rear Pump Room |
| 2. | Roof Fire Monitor | |
| 2.1 | Brand | Optional |
| 2.2 | Model | Optional |
| 2.2 | Flow Rate | 9000L/min. |
| 2.3 | Shoot Range | Water ≥90 meters, Foam ≥ 85 meters |
| 2.4 | Location | On the top of the tank |
| 2.5 | Control Manner | Remote Control |
| 2.6 | Horizontal Rotation | 0°~355° |
| 2.7 | Pitch Rotation | -15°~90° |
| 3. | Water and Foam Tank | |
| 3.1 | Capacity | 16000 Liters Water, 9000 Liters Foam,2X3000kg |
| 3.2 | Material | PP composite material and Never in Rust |
| 3.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
| 1. Dry powder tanker | |||
| Dry powder tank volume | 2X3000kg | Maximum working pressure of dry powder tank | 1.4MPa |
| Minimum working pressure of dry powder tank | 0.5MPa | Material | Q345R |
| Structure of the dry powder tanker | The bottom is equipped with a powder outlet, the air inlet; The top is equipped with a powder inlet, and an outlet for the dry powder gun, The two sides are equipped with a gunpowder outlet, a residual air outlet, a safety valve, and a pressure gauge. The air inlet must be equipped with a one-way valve. | ||
| 2.nitrogen cylinders | |||
| Quantity | 24 pcs | capacity | 70L |
| The maxmum working pressure | ≤15MPa | Material | 40Mn2 |
| 3.Powder monitor | |||
| Model | PF40 | Output | 40kg/s |
| Effective range | ≧40m | Horizontal rotation angle | ≧360° |
| 4.Hose reels | |||
| Braided Hose Aperture | 25mm | Quantity | 2 |
| Length of the hose | ≧40m | The injection rate of single dry powder gun | 2.5kg/s |
| The range of single dry powder gun | ≧12m | ||
| All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, and English manual... | |||
| Optional | *Back alarm and Camera can be equipped. *Standard carbon steel, stainless steel optional. *USA or Germany fire pump can be optional. | ||
