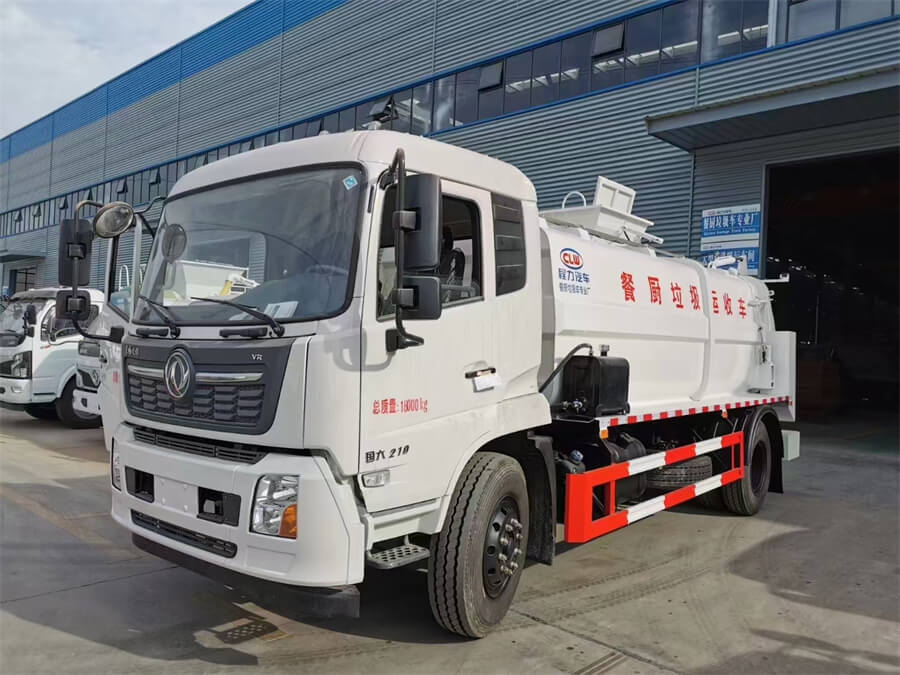

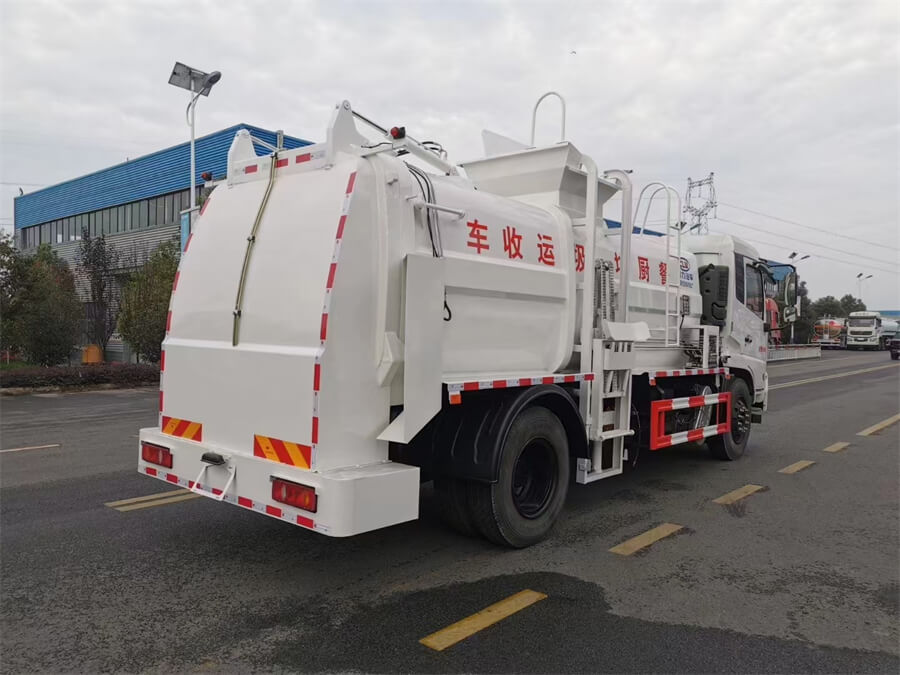

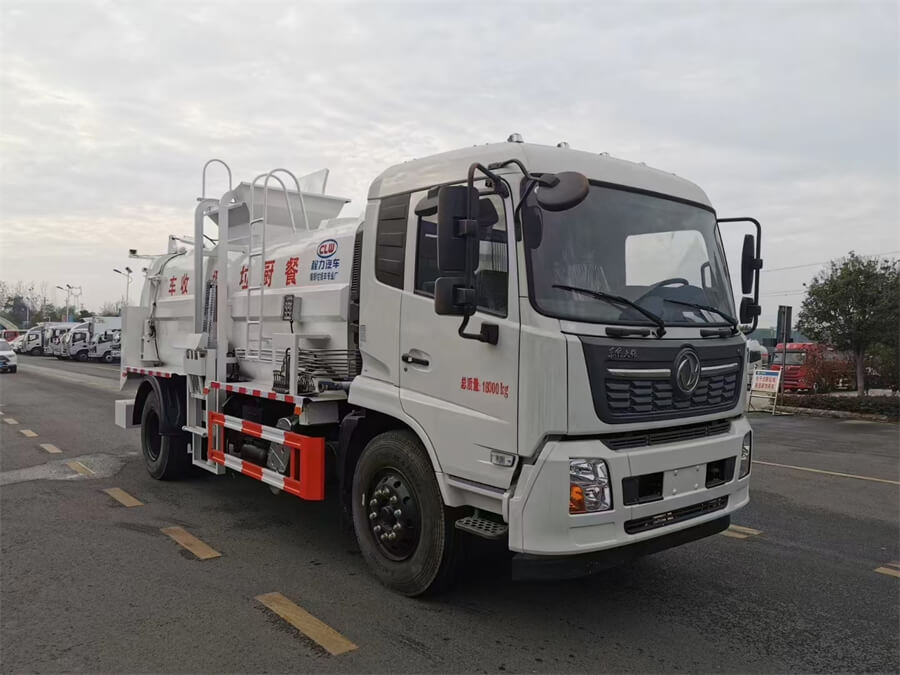

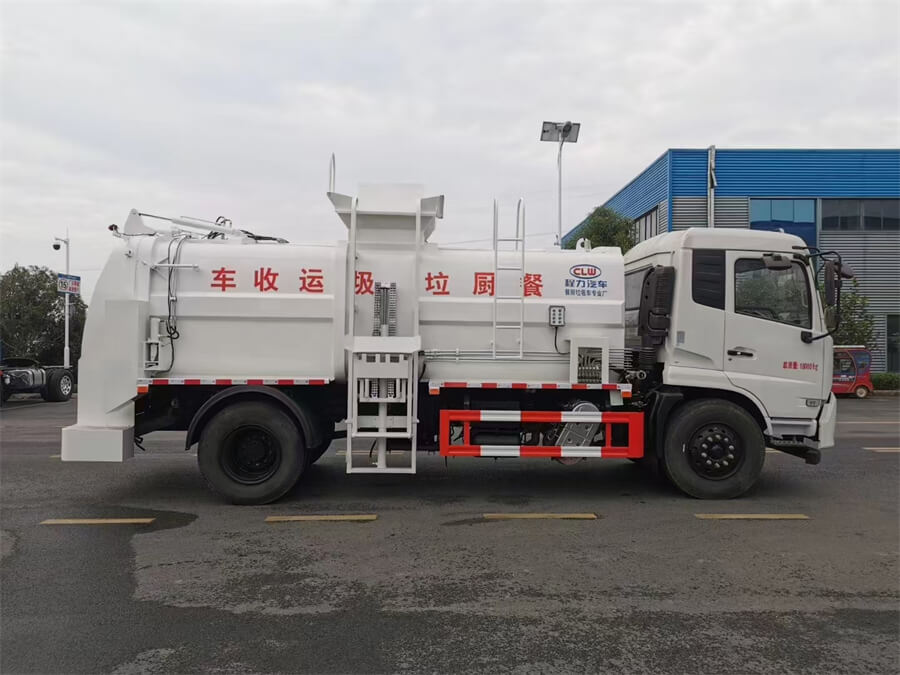

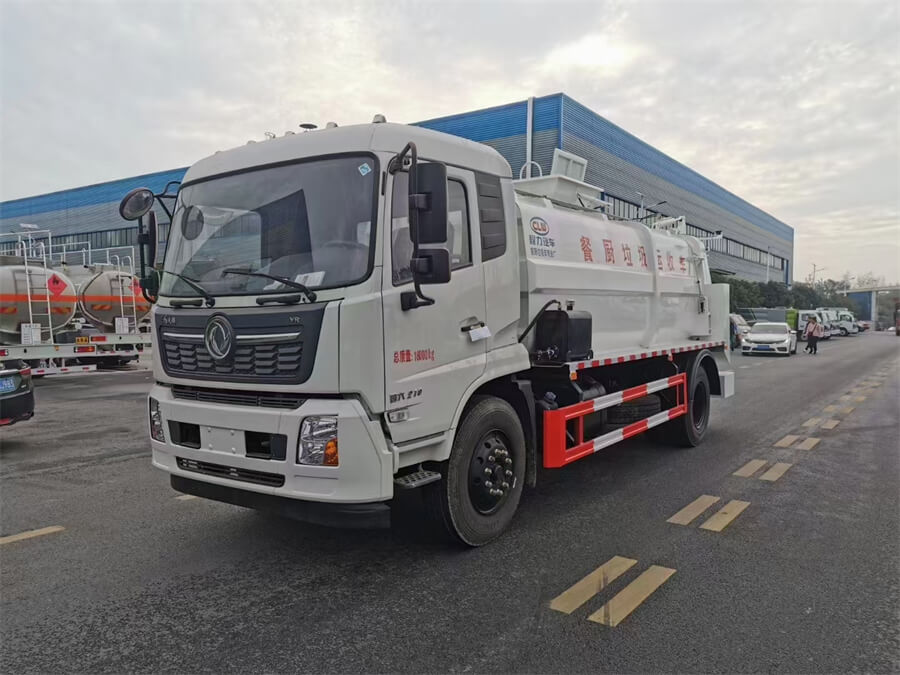

Dongfeng 12 Cubic Meters 12000 Liters Waste Food Collection Garbage Truck
Kitchen garbage truck is a special vehicle used to collect and transport domestic waste, food waste (swill) and urban sludge. Food and kitchen waste is collected by side bucket loading and unloaded by self-unloading. Advanced curved feed port design with a perfect hydraulic scraper system to make loading faster and smoother, the tail door seal hydraulic locking system to ensure that the transportation of water. Main structure: automobile chassis, garbage box, bottom frame side bucket lifting mechanism, rear door assembly, hydraulic scraper system, hydraulic system and electric control system. The hydraulic system and electronic control system are composed of oil pump, oil cylinder, mailbox, electro-hydraulic valve, PLC unit, stroke switch and switch. At the same time, this product is equipped with high-pressure cleaning system, automatic weighing system and satellite positioning Internet system, with its own water tank, you can wash the car and the trash can on site. It is an ideal tool for urban food waste collection and transportation.
Product characteristics
The modified part has the characteristics of high automation of loading and unloading garbage, reliable work, good sealing, large loading capacity, easy operation, closed operation process, no sewage leakage and odor distribution, and good environmental protection. Can be loaded with different specifications of standard garbage cans, with a wide range of applicability. Kitchen garbage truck Efficient and clean is a special vehicle for garbage collection and transportation.
Kitchen garbage trucks not only optimize the environmental hygiene of residents, reduce the smell of kitchen garbage in the air, reduce the possibility of breeding cockroaches and bacteria, improve the sanitation operating environment, and reduce the pollution caused by the dispersion of garbage.
Mode of operation
The barrel of "swill" is slowly raised by the car elevator, and poured into the car at the top of the car (the car can be divided into the car body and tank body), the waste is put through a strong push plate extrusion, and then the solid liquid is separated, the separated liquid enters the sewage tank at the bottom of the tank, the solid waste is compressed and stored in the tank, and then the volume becomes smaller. After repeated filling, it is sent to the food waste resource optimization treatment plant. The whole process is automated. The classified collection and centralized treatment of kitchen waste not only require harmless and resource-based treatment equipment in the later period, but only special vehicles for collection and transportation. Because kitchen waste has the characteristics of high water content and complex composition, it requires good vehicle airtightness, simple and safe operation, high loading and unloading efficiency and convenient maintenance, and requires supporting with later resource-based equipment.
Features
◆Modern and generous appearance : The horizontal section of the dustbin is a square frame, and the longitudinal section is a trapezoidal frame. Both sides and the top surface are arc-shaped, and the whole machine looks elegant.
◆Strong loading capacity: Equipped with stainless steel sewage filter device, equipped with sewage collection and discharge device at the bottom of the cabinet, which can realize the initial separation and garbage reduction of kitchen waste in the box, and is equipped with a large-capacity sewage tank.
◆The seal between dustbin and the rear door assembly has a good leakproofness. The special reinforced rubber strip is used between dustbin and the rear door assembly for good sealing and eliminates secondary pollution.
◆High reliability and safety: It adopts electric and liquid joint control and anti-misoperation device to ensure the accuracy and reliability of each mechanism.
◆Optional closed discharge: no need to open the back door, liquid waste can be removed through the pipeline, solid waste can be squeezed out of the car by rotating the auger.
◆With night work lights, it is convenient for night work and expand the working time range.
◆With waterway flushing device to clean the vehicle, the site and the surrounding environment.
Chassis 机壳 Chassis Brand 底盘品牌 DONGFENG Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 4500 Tire Specifications 轮胎规格 10.00R20 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 7900×2500×3000 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 8 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 90 Engine 引擎 Model型号 Cummins Power(kw)/Horsepower(HP)功率/马力 140/190 Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 6 Fuel type 燃料类型 Diesel Cabin 舱 3 Passengers,single row,1 sleeper
