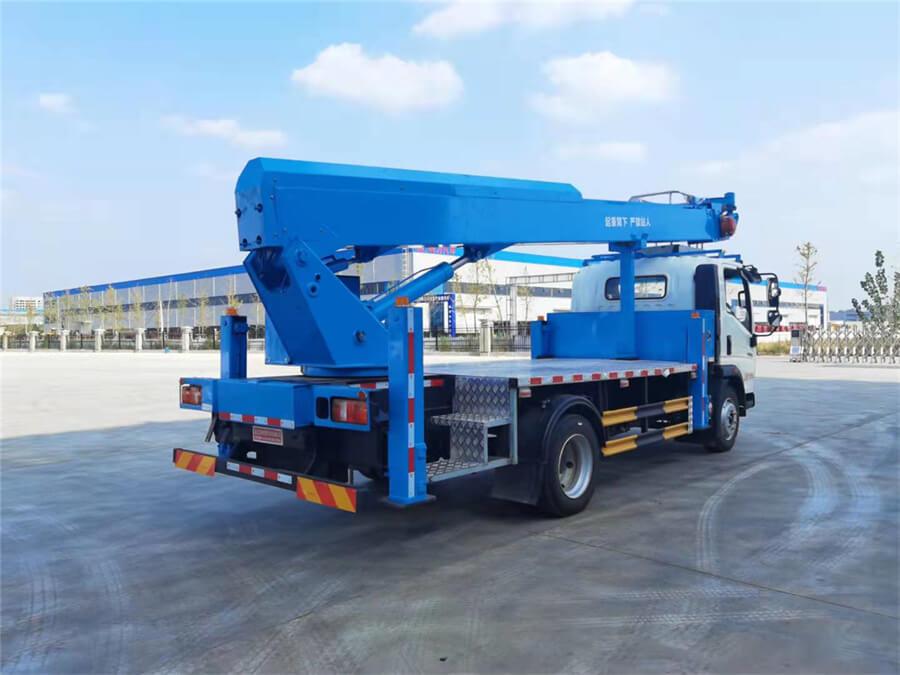

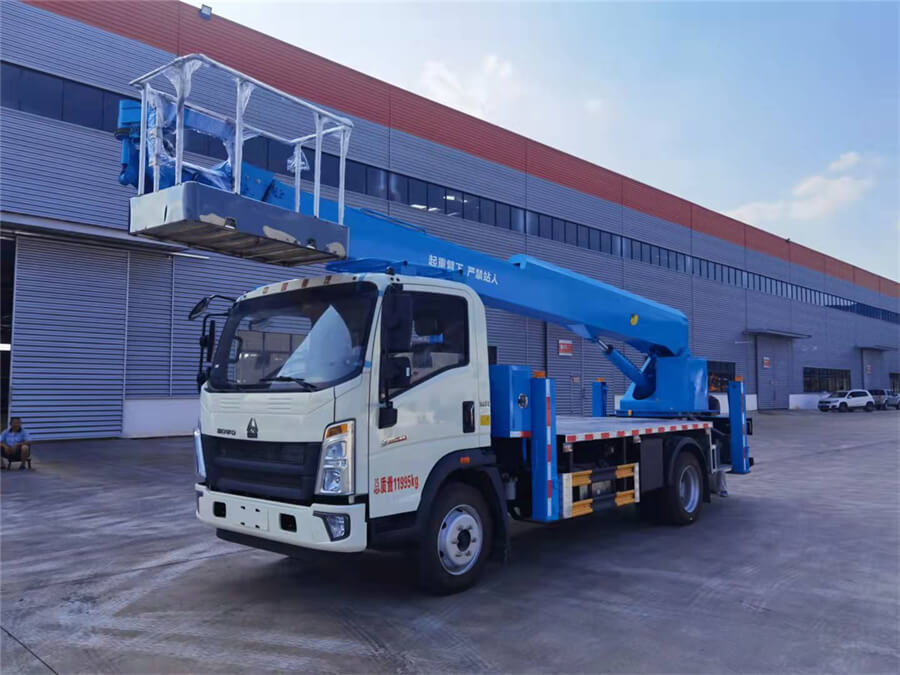

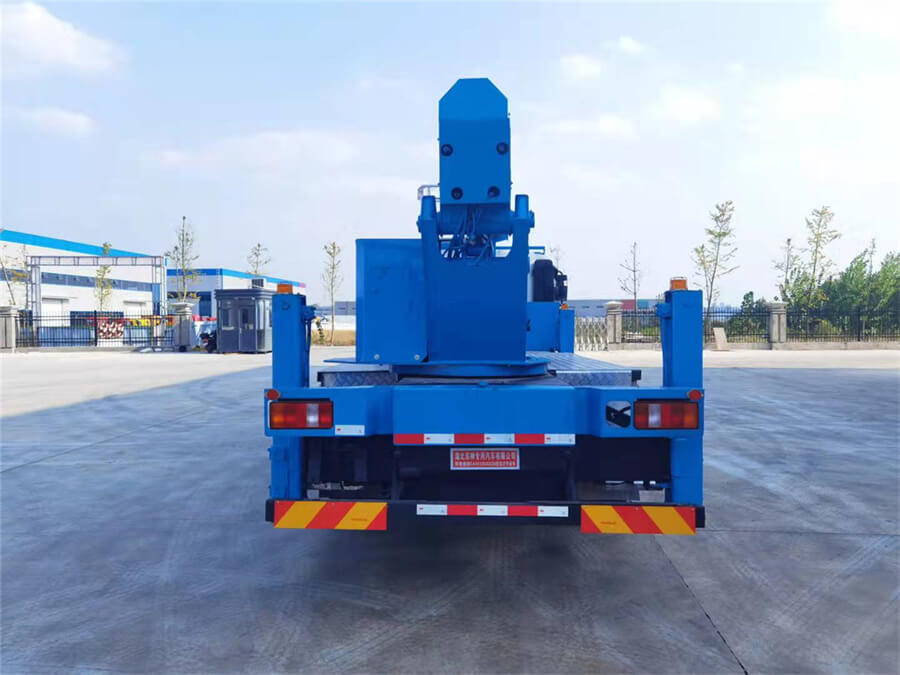

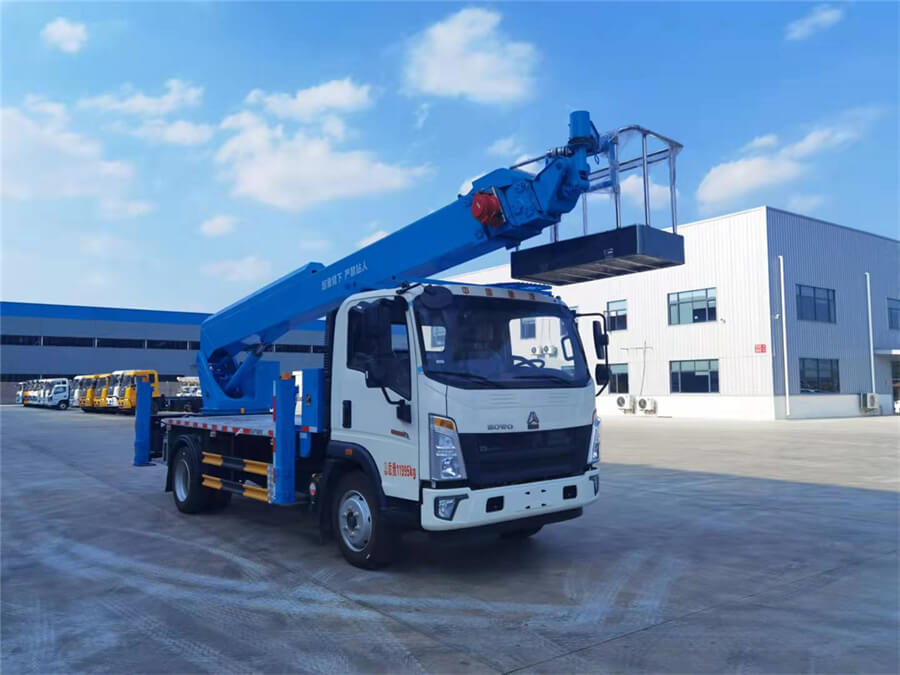

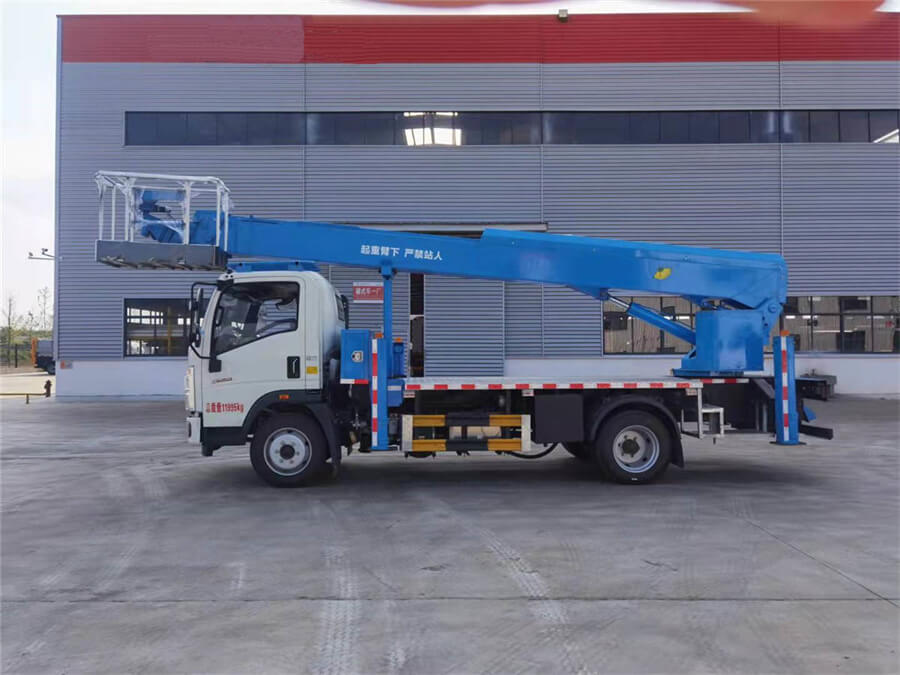

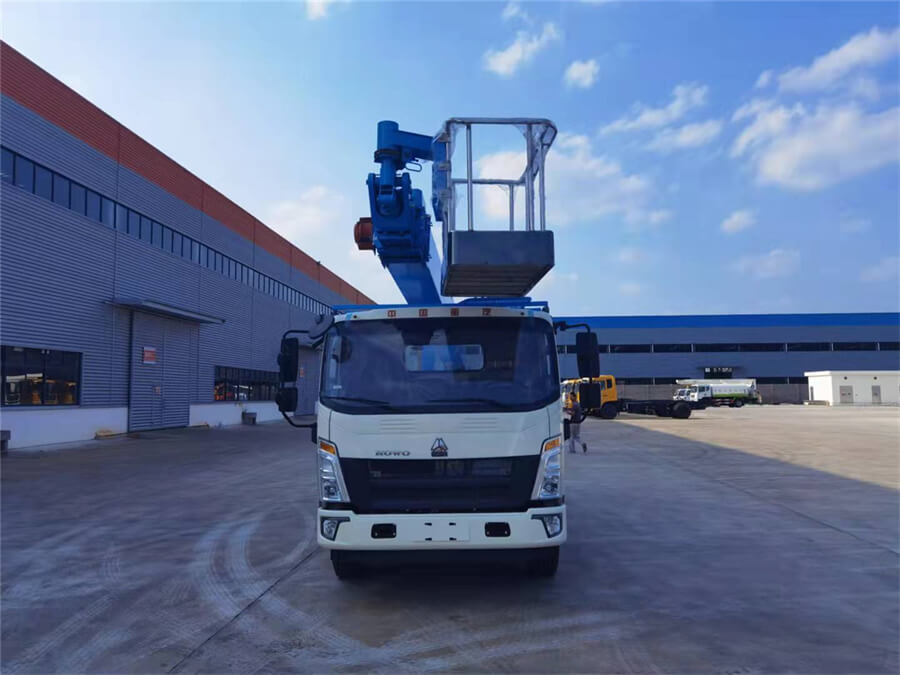

1. Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
2. The whole truck is welded with SSAB imported high-strength steel, with compact structure and beautiful appearance.
3. The pentagonal arm of the boom has beautiful appearance, strong force and high strength. The boom cylinder is installed externally, and the steel wire rope drives the six-section boom to expand and contract synchronously, which is fast, stable, reliable, and easy to observe and maintain.
4. The outrigger adopts a square tube inner jacket to expand and contract, the support is stable, and the force is large. The front X and rear H-shaped outriggers have good stability. The outriggers can be operated independently, and the operation is flexible, and the speed block can be adapted to a variety of working conditions. the outrigger is equipped with soft leg protection and weighing protection, and has an alarm function.
5. It adopts imported controller for automatic control, with display screen, adopts length sensor, angle sensor and encoder to collect signals. Manual and remote control dual-position operation, imported electro-hydraulic multi-proportional valve speed regulation, capable of operating multiple actions at the same time, realizing compound operation, wireless remote control operation of the hanging basket.
6. Lightweight design of all aluminum alloy hanging basket, static hydraulic automatic leveling, 360° electric continuous rotation, automatic protection against overload of 200kg.
FEATURES
1. Telescopic Height Reach: This feature allows operators to access elevated work areas that were previously hard to reach, making it ideal for tasks such as maintenance, construction, and utility work.
2. Versatile Bucket Design: The lift truck comes with a versatile bucket attachment that provides a safe and spacious platform for operators to work from. This bucket can be rotated and tilted, allowing precise positioning for tasks requiring various angles. With its robust design, it can accommodate both personnel and equipment, enhancing efficiency and safety on the job.
3. Smooth and Precise Controls: telescopic bucket lift truck is engineered with advanced hydraulic controls that ensure smooth and precise operation. This enables operators to maneuver the telescopic boom and bucket with accuracy, even in confined spaces. The intuitive controls contribute to enhanced productivity and reduced downtime.
4. Stability and Safety Features: Safety is paramount in any elevated work environment. This lift truck incorporates features such as stabilizers and outriggers to provide a stable base, ensuring the equipment remains steady while the boom is extended. Additionally, safety interlocks and emergency stop systems add an extra layer of protection, promoting secure operations for the crew.
5. Durability and Reliability: Built to withstand demanding work conditions, the telescopic bucket lift truck boasts a rugged construction and high-quality materials. This results in a reliable and durable machine that can handle continuous use in various environments. With regular maintenance, this lift truck can serve as a dependable asset for businesses seeking long-term productivity gains.
| Chassis 机壳 | Chassis Brand 底盘品牌 | Sinotruck HOWO |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 3800 | |
| Tire Specifications 轮胎规格 | 9.00R20 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 6800×2000×2300 | |
| Air Conditioner空调 | A/C | |
| Brake System 制动系统 | Air break | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 6 Forwards & 1 Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 95 | |
| Engine 引擎 | Model型号 | Yuchai |
| Horsepower(HP) 马力 | 130HP | |
| Emission standard 排放标准 | Euro 2/ 3/ 4/ 5 | |
| Cylinder No. 气缸数 | 4-cylinders in-line, turbo-charged intercooling | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 2 Passengers,single row
| |
| Major Feature | Outrigger | computer controlled system, one key to stretch out & balance the level of the truck |
| Balancing | Automatically Balancing system with Tilting Angle Sensor & level detector | |
| Getting on & off Lock | Computer control system, | |
| Telescopic Arm Control | Controlling system in the bucket, with manual control. | |
| Platform Control System | LED Screen Display with Button control | |
| Range Control | Large Angle Sensor to Detect the Arm Length & Rotation Range | |
| Walkie-Talkie | Included |
| Chassis Specification | |||
| | | ||
| Special Function | |||
| Working height (m) | 20 | ||
| Max working radius (m) | 8 | ||
| Boom type | Four sections telescopic boom | ||
| Rated loading in the bucket(kg) | 200 | ||
| Bucket size (mm) | 1300*1000*1000 | ||
| Rotating speed (r/min) | 0-2 | ||
| Rotation Angle | 360°continuously | ||
| Span of supporting legs | Horizontal | Appro. 3500mm | |
| Longitudinal | Appro. 4000mm | ||
| Boom Control mode | 1.Bucket control 2.Manual operation | ||
| Supporting legs | Four hydraulic supporting legs with manual operation | ||
