Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;
Water Fire Truck Application
It can also be used as a vehicle for water supply and transportation in water-scarce areas. It is the most common fire truck for most area.
Application for Foam Fire Truck
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades.
Powder Fire Truck Application
Dry Powder Fire Truck mainly extinguishes fires of combustible and flammable liquids, combustible gases and charged equipment. It is a necessary fire truck vehicle for petrochemical and power plants, and can also extinguish fires of general substances.
Chassis 机壳 Chassis Brand 底盘品牌 ISUZU 600P Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 3815 Tire Specifications 轮胎规格 7.00R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 6500×2300×2400 Air Conditioner空调 A/C Brake System 制动系统 Air break气压制动 Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 5 Forwards &1 Reverse , manual operated Max. driving speed(km/h) 最大速度 100 Engine 引擎 Model型号 ISUZU Horsepower(HP) 马力 130hp Emission standard 排放标准 Euro 5 Cylinder No. 气缸数 4 Fuel type 燃料类型 Diesel Cabin 舱 4 doors Crew cab, 2+3 Passengers,
Double row cabin
| Upper-Body specification | |||
| Tank | Structure | Welding, there is clapboard inner. | |
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |
| Capacity
| Total | 3000L | |
| Water Tank | 1500L | ||
| Foam Tank | 1500L | ||

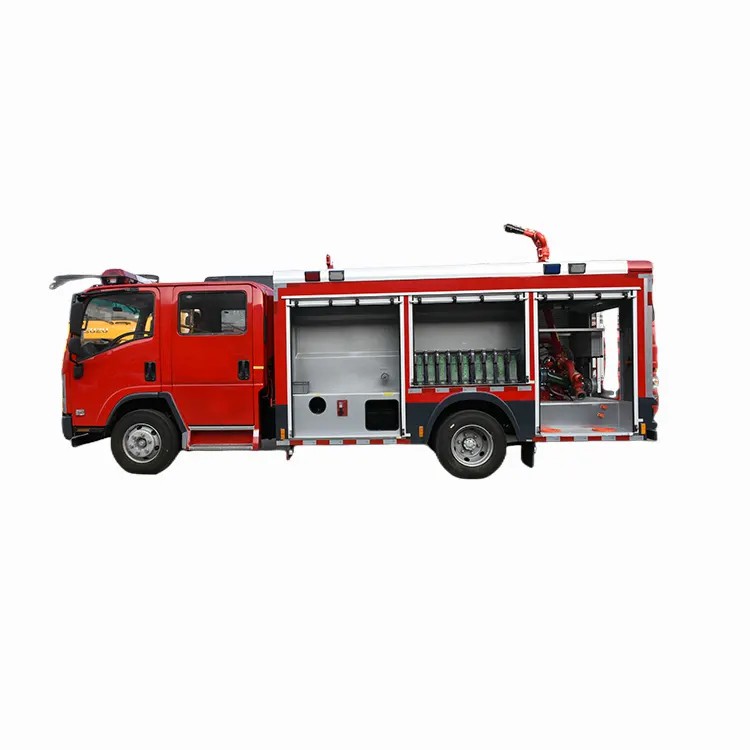

| Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. | ||
| Pump room | on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
| Special
Parts Parameter | Fire Pump | Type | Normal pressure fire pump |
| Model | CB10/60 | ||
| Flux | 60L/S | ||
| Pressure | 1.0Mpa | ||
| Fire Monitor | Type | For water and foam | |
| Model | PL48 | ||
| Flux | 38L/S | ||
| Pressure | 1.0Mpa | ||
| Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
| Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||
| Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||
| Additional Electrical system system | warning light ,warning sirens | ||
| Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||
| Fire lights, pump room lights, equipment box lights | |||
| Additional instrumentation | pressure gauge | ||
| speedometer | |||
| level gauge | |||
| vacuum gauge | |||
| Carriage | Carriage is made of high quality steel and Aluminum embossed sheet | ||
| Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||
