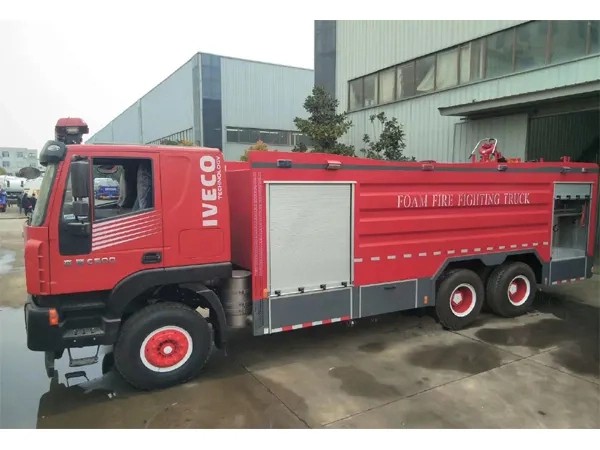

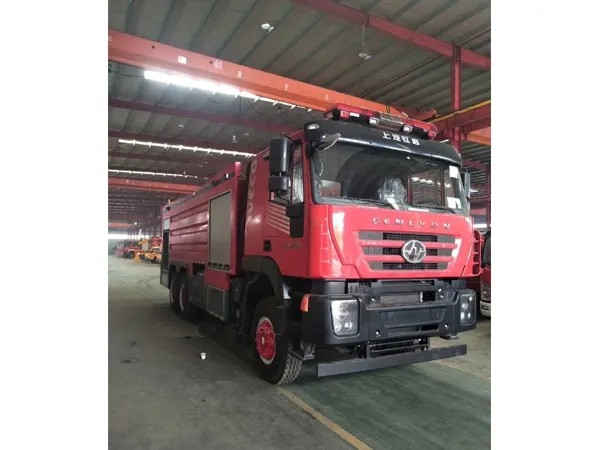

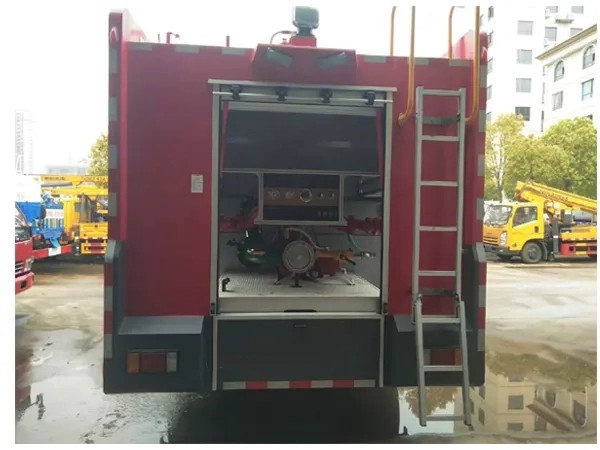

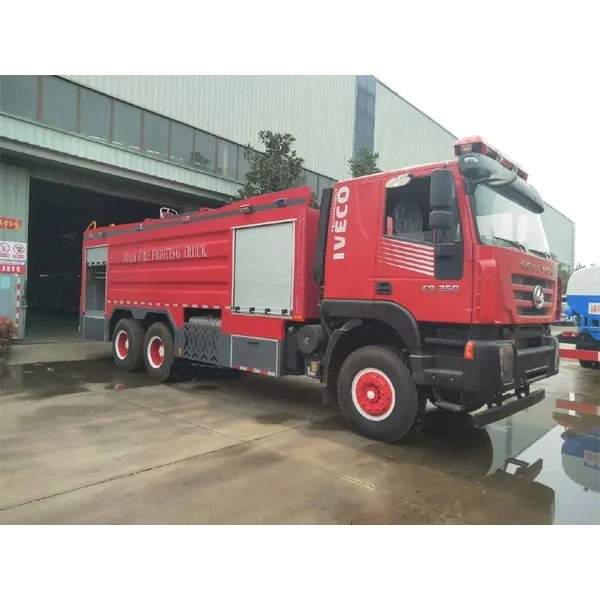

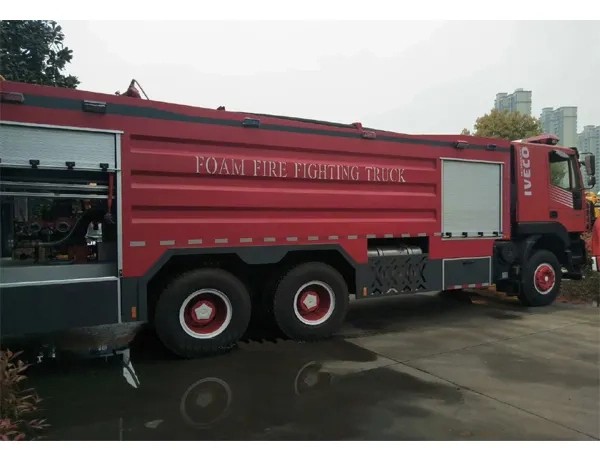

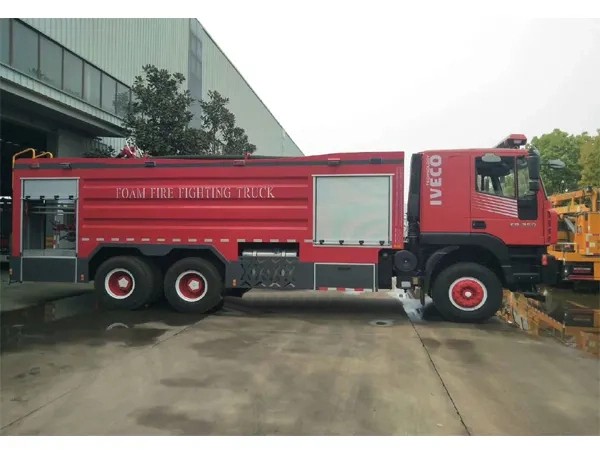

Fire Fighting Truck ,which is also called water fire engine,Water Foam Fire Truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker Fire Truck
is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Truck can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Earthquake rescue fire truck;
Water Fire Truck Application
It can also be used as a vehicle for water supply and transportation in water-scarce areas. It is the most common fire truck for most area.
Application for Foam Fire Truck
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades.
Powder Fire Truck Application
Dry Powder Fire Truck mainly extinguishes fires of combustible and flammable liquids, combustible gases and charged equipment. It is a necessary fire truck vehicle for petrochemical and power plants, and can also extinguish fires of general substances.
| TECHNICAL SPECIFICATION | ||||||
| Main specification | Chassis brand | I-VECO | ||||
| Chassis model | CQ1254HMG | |||||
| Overall dimension(L*W*H) | 10700x2500x3800mm | |||||
| Water tank volume | 9000 LITRES | |||||
| Foam tank volume | 1000 LITRES | |||||
| Cabin | crew cabin, with air conditioner ,electronic windows, USB, | |||||
| Total mass | 25000 kg | |||||
| Chassis | Drive modle | 6X4 right hand drive | ||||
| Wheelbase | 5025+1350mm | |||||
| Front axle loading | 6000 kg | |||||
| Rear axle loading | 7000 kg*2, in total 14000kg | |||||
| Brake | air brake | |||||
| Front/rear suspension | 1335/1900 mm | |||||
| Approach/departure angle | 26/15 (°) | |||||
| Spring number | 8/12 | |||||
| Tyre size & number | 11.00R20, with one spare tyre | |||||
| Max speed | 90km/h | |||||
| Engine | Model | C9.290(F2CE0681D*B053) | ||||
| Engine Type | six-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling | |||||
| Horse power | 290hp | |||||
| Displacement | 8709ml | |||||
| Emission | Euro 3 | |||||
| Max Torque | 1100N·m | |||||
| TANK SPECIFICATION | ||||||
| Fire pump | Model | / | CB40.10/7.50 | |||
| Low Pressure working | Bar | 10 | ||||
| L/M | 3000 | |||||
| High Pressure working | Bar | 40 | ||||
| L/M | 350 | |||||
| Max suction height | m | 7 | ||||
| Rated speed | r/min | 3000 | ||||
| Time of drawing water (s) | s | ≤35 | ||||
| Input diameter | mm | 125 | ||||
| Outlet diameter | mm | 4xΦ65 | ||||
| Fire monitor | Model | / | PL48 | |||
| Fire fighting nozzle range | Water (m) | ≥65 | ||||
| Foam (m) | ≥50 | |||||
| Flux | L/M | 2400 | ||||
| Rated Working pressure | Mpa | 0.7-1.2 | ||||
| Rotation angle | (°) | 360 | ||||
| Standard configuration | 1. Have alarm rotating light and which is mounted on top of the cabin 2. Have two side light per side ( four in each sides plus rear pump working lights ) , 3. Have 2 ladders on rear left and right side of the tank 4. Have manhole 5. Have 2x60m high pressure hose reel . 6. All piping will be manufactured from stainless steel material 7. Have CB10/60 Centrifugal pump and PL48 manual monitor 8. Have standard inlets and discharge couplings , the couplings are all BS model with blind clap. 9. Have telescopic lighting, powered 220V by diesel generator 10. Have standard fire equipments as below list | |||||
