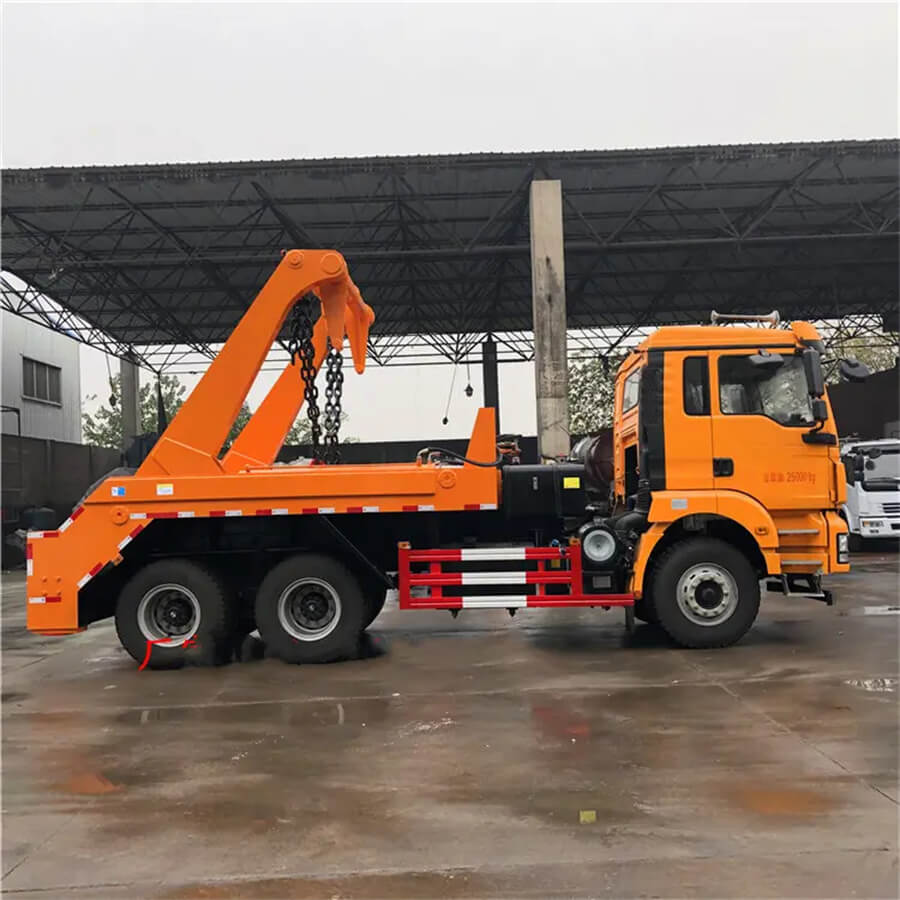

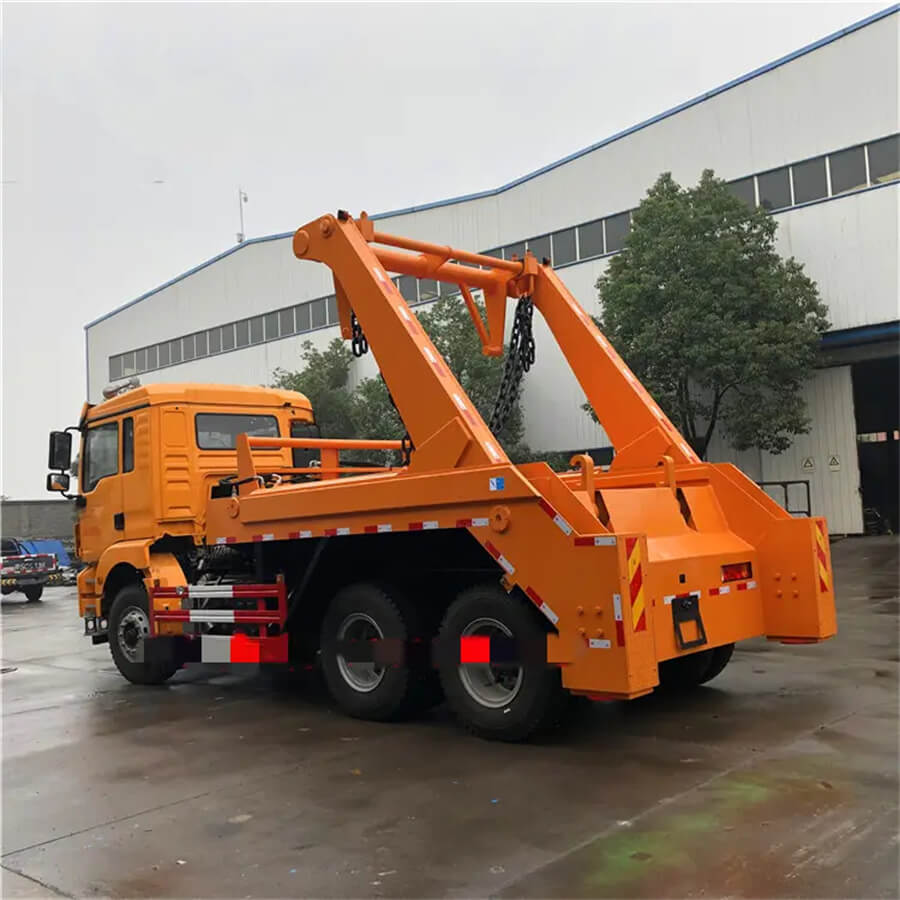

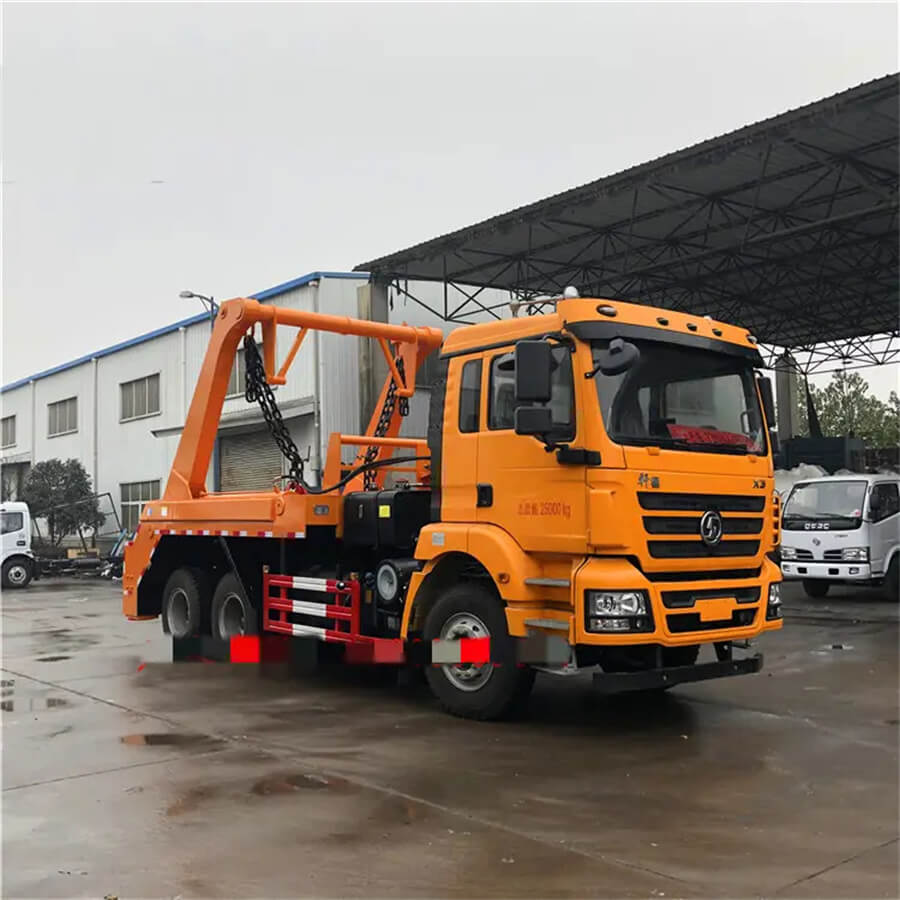

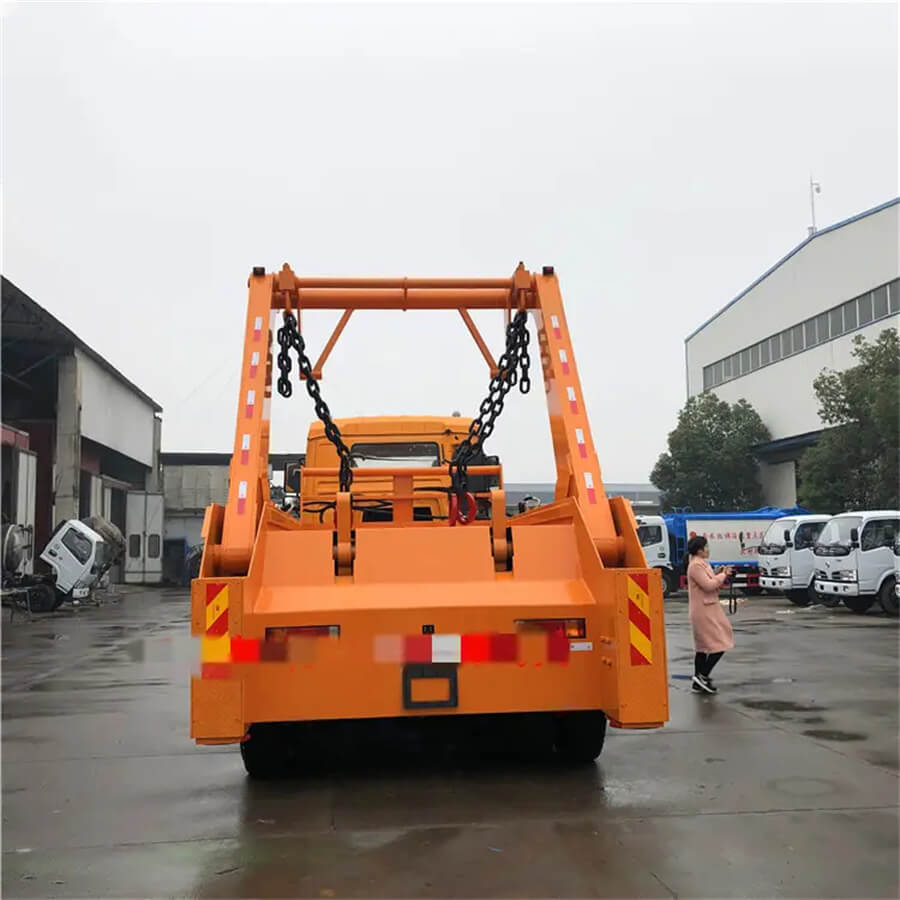

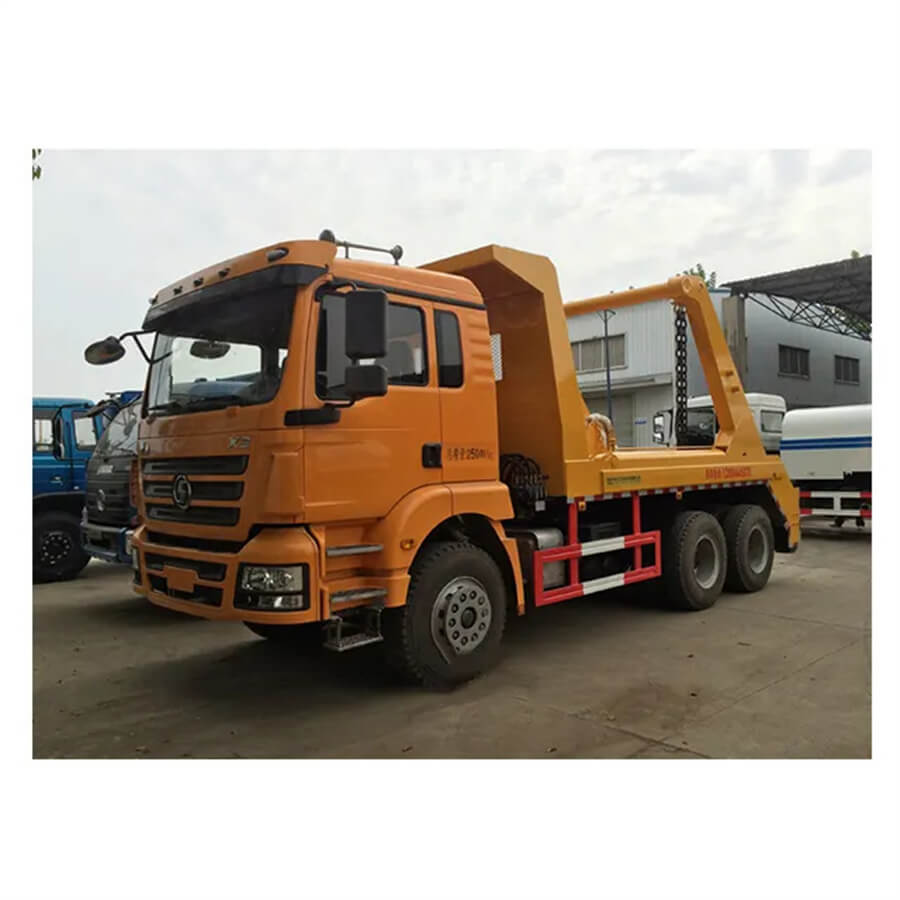

Swing Arm Refuse Truck (also called swing arm waste collection truck Isuzu, skip bin truck, skip bin loader, dumper placer, Skip Loader) is is applicable for craneing and transporting garbage bin. It is featured with large capacity garbage bin, high quality hydraulic parts, easy operation, maintenance and anti-secondary pollution. Then mechanization of cleaning and transporting garbage can be achieved.
Swing arm roll Waste Collection truck is also called Skip Loader Waste Collection truck for transporting kinds of garbage in residential areas, streets, and the factory,etc.
The rolling arm Waste Collection truck is equipped with large hydraulic cylinders to drive the two arms installed with hydraulic legs to ensure stability and safety during operation.The waste container of arm roll Garbage Truck can be designed as sealed type,semi-sealed type;while the shape can be oblong or echelon.
The Skip Loader Garbage Truck boasts an innovative design that incorporates a distinct garbage container and a robust truck chassis. This configuration allows multiple units of garbage containers to be seamlessly attached to a single truck chassis, enabling uninterrupted transportation and enhancing overall work efficiency significantly.
Built upon the heavy-duty chassis, the skip loader garbage truck ensures exceptional performance and durability. Its upper body comprises various components such as a swing arm, garbage bin, outrigger, and chain, all meticulously integrated to optimize functionality. By leveraging European advanced technology and employing a well-thought-out design, the skip loader garbage truck delivers outstanding performance and reliability.
How to use a Swing Arm Skip Loader Garbage Truck:
· The swing arm container Waste Collection truck can be used in urban erea and suburb.
· The container on the rear of the truck can be put down on the ground to gather waste at a fixed location.
· when the container gathers full.the truck lift it on the flat bed on the rear of the truck.
· then dump the waste in the garbage center.
Upper Equipment Specification:
Garbage Bin/Skip Loader: 2CBM-30CBM.
Hydraulic System: Two Hydraulic cylinders with lifting arm; Two Hydraulic cylinders with landing leg;
The garbage bin is constructed from premium carbon steel, ensuring excellent resistance to rust and corrosion.
The reinforced double cylinder offers consistent and reliable performance, guaranteing safety while lifting and emptying the garbage bin.
The hydraulic multi-way valve controls the rear outrigger, providing stability, safety, and reliability during the bin's lifting and lowering process.
The swing arm is fabricated using durable alloy steel.
The thickened chain rings, featuring both large and small holes, are designed to prevent easy detachment and deformation.
Main feature
1. Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2.The utilization of a separate garbage container and a versatile truck chassis revolutionizes waste management operations. With the ability to accommodate multiple garbage containers, the truck chassis enables continuous and uninterrupted transportation. This pivotal feature not only maximizes productivity but also minimizes downtime, leading to substantial improvements in work efficiency ultimately.
3.the heavy-duty chassis provides a solid foundation for the skip loader garbage truck, ensuring durability and stability even under demanding working conditions. The intelligently engineered upper body components, including the swing arm, garbage bin, outrigger, and chain, integrate to facilitate seamless operation and optimal waste disposal seamlessly.
4.Incorporating cutting-edge European technology and well-designed construction, the skip loader garbage truck sets new standards for performance and reliability in waste management. Its exceptional design, coupled with the heavy-duty chassis, guarantees efficient and dependable operations, making it a top choice for waste disposal needs.
Chassis 机壳 Chassis Brand 底盘品牌 SHACMAN H3000 Drive Type 驱动类型 6×4 left/right hand drive Wheelbase(mm) 轴距 4600+1350 Tire Specifications 轮胎规格 12.00R20 The Number of Tires 轮胎数量 10pcs with one spare tire Dimensions(mm) 尺寸 9800×2500×3650 Air Conditioner A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 10 Forwards & 2Reverse , manual operated Max. driving speed(km/h) 最大速度 95 Engine 引擎 Model型号 Weichai Horsepower(HP) 马力 336HP Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 Watering Cooling, Four Stroke, 6 Cylinder in Line, Direct Injection Fuel type 燃料类型 Diesel Cabin 舱 1 Sleeper , 3 Passengers,single row
FAQ
1.what can you buy from us?
Answer: Fire Truck ,LPG Tank Truck,Fuel Tank Truck, Tank Truck ,Cleaning Truck,Garbage Truck, Tow Truck , Bucket Truck ,Construction Truck, Ambulance , Van Truck ,Truck Mounted Crane,Utility Truck,Tank Semi Trailer, Semi Trailer
2. What is the payment term?
Answer: FOB,CIF; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
