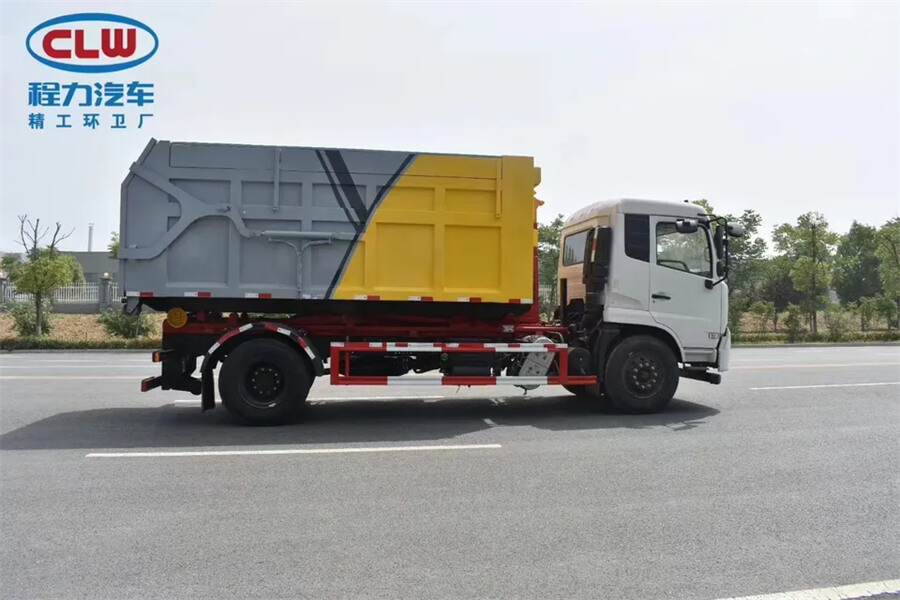

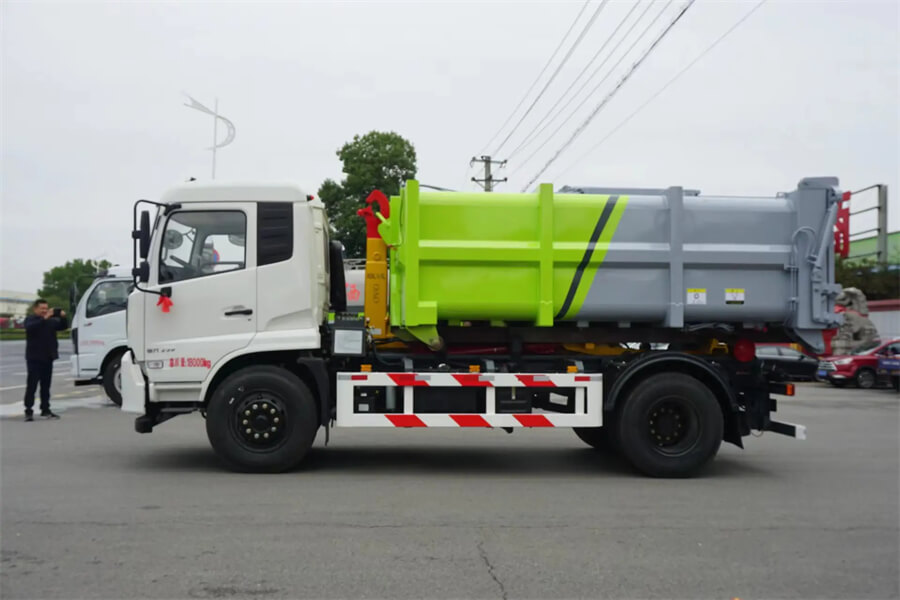

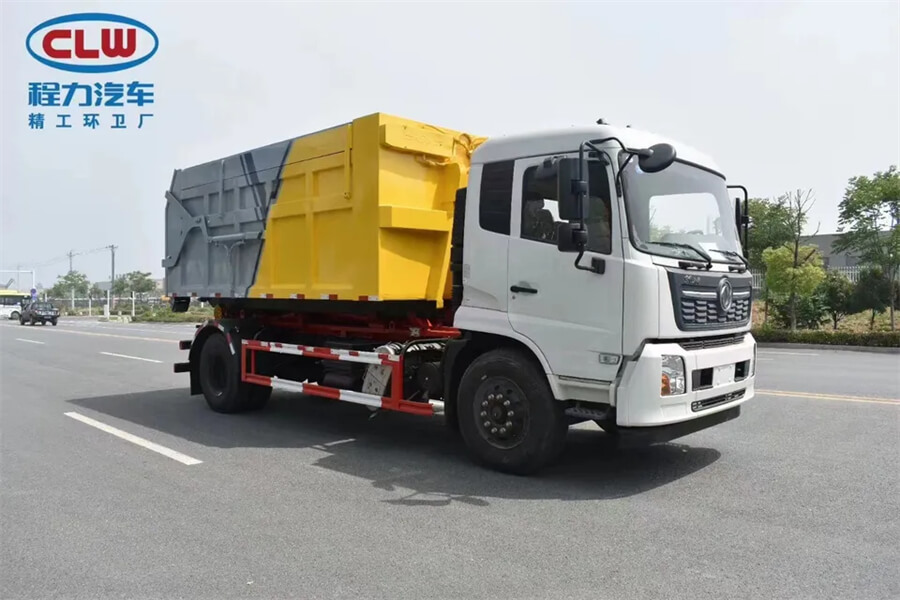

Hook arm Garbage Truck is also known as the carriage removable garbage truck. It is mainly used for municipal sanitation, property management, large factories, mines and other places to collect and carry all kinds of garbage. The hook arm garbage truck adopts the full hydraulic control operating system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stability, high efficiency, good sealing performance, convenient dumping and other advantages, can realize a car and multiple garbage compartment joint operation, circulation transportation, fully improve the transportation capacity of the vehicle
1. Hook Loader is used for the collection, transportation, unloading of urban bags, bulk domestic garbage operations of special vehicles.
2. Hook Loader is composed of chassis, boom’s main cylinder, auxiliary frame, overturning frame, locking device, locking cylinder and multi-way reversing valve, ect. One end of the turning frame is connected with the auxiliary frame, the other end is provided with a movable boom, and a locking system is arranged in the middle; One end of the movable boom’s cylinder is connected with the movable boom, the other end is connected with the auxiliary frame; Locking mechanism motion through the lock cylinder to dump the enclosure will be attached to the frame on the box body is an organic whole repeatedly with the flip and boom, out of form when the main cylinder and the cylinder piston tipping Angle, can lock the back of the oil cylinder to flip and attached to the frame lock, the use of the back of the main oil cylinder or make activity pull boom to underground dustbin drag to attach on the frame or back into the ground from the attached to the frame.
3.Underground garbage bin and garbage inside of which can be pulled together by hook loader to transport away at the same time, reducing the labor intensity of workers. The hook loader’s collection and transportation mode is currently widely used in the world garbage collection and transportation mode, which can achieve one unit hook loader equips multiple containers, greatly reducing the equipment cost and space and so on; The functions of the special device on hook loader are all powered by the chassis’s engine and realized manually or electronically by the hydraulic mechanism. The container of the hook loader adopts high quality carbon steel fully sealed welding structure, which has the advantages of high strength, light weight and no secondary pollution(but in this offer, only hook loader provided, cause garbage container will be supplied by client’s site locally).
4. Structure: Hook boom driven by cylinder to flip. Garbage container will be loaded, unloaded and lifting through hook boom. Multi valves on truck can be operated as well as the button in cab. Two-direction balancing valve is installed on boom which can control garbage container’s loading and unloading speed. All hydraulic components are adopted domestic popular brands products. Other design and manufacture followed by our factory’s standards.
5. Hydraulic system assembly: Lifting, landing & sliding functions of hook
Description
--Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
--Hydraulic Control Loading & Unloading System.
--Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
--High-tensile steel chains: imported hydraulic oil cylinder and sealing material.

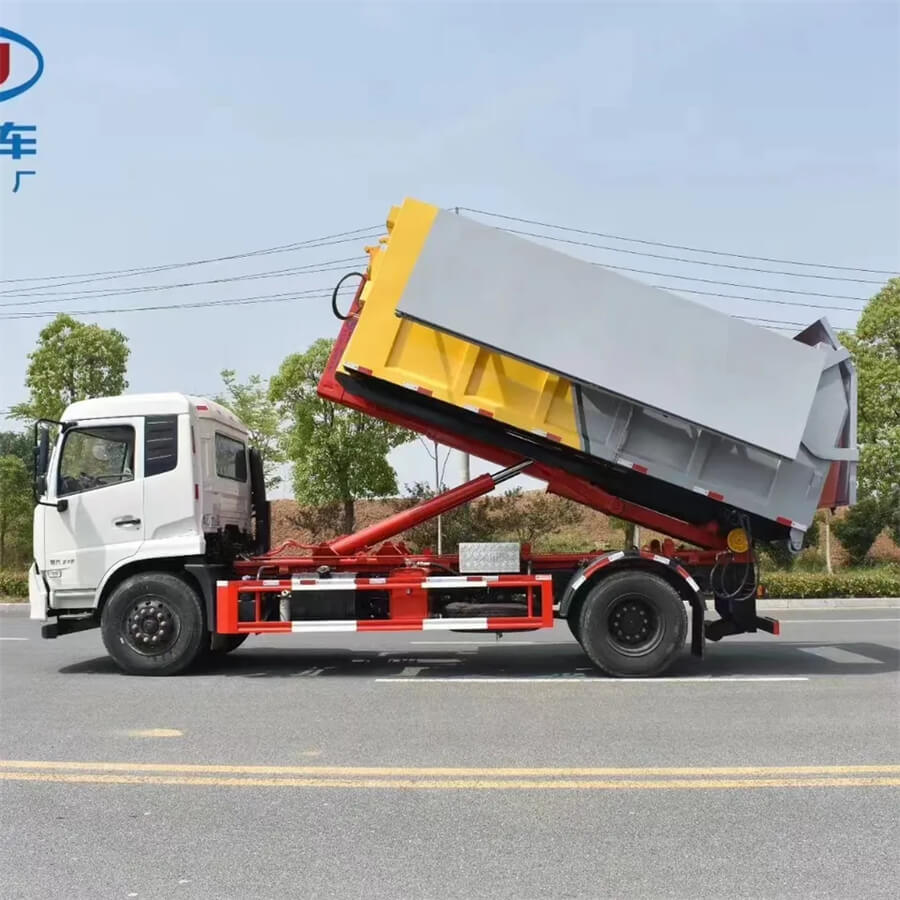

--Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
--Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Main feature ：
1. Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2.The utilization of a separate garbage container and a versatile truck chassis revolutionizes waste management operations. With the ability to accommodate multiple garbage containers, the truck chassis enables continuous and uninterrupted transportation. This pivotal feature not only maximizes productivity but also minimizes downtime, leading to substantial improvements in work efficiency ultimately.
Our Hook Loader Garbage Truck has the features :
a. reasonable structure,simple and stable operation; High efficiency; Good sealing performance; Easy Dumping;
b. With dump function and hydraulic operation, very easy to collect the garbage;
| Chassis 机壳 | Chassis Brand 底盘品牌 | DONGFENG |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 4500 | |
| Tire Specifications 轮胎规格 | 10.00R20 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 7900×2500×3000 | |
| Air Conditioner空调 | A/C | |
| Brake System 制动系统 | Air break | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 8 Forwards & 1 Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 90 | |
| Engine 引擎 | Model型号 | Cummins |
| Power(kw)/Horsepower(HP)功率/马力 | 140/190 | |
| Emission standard 排放标准 | Euro 2/3/4/5 Optional | |
| Cylinder No. 气缸数 | 6 | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 3 Passengers,single row,1 sleeper
| |
