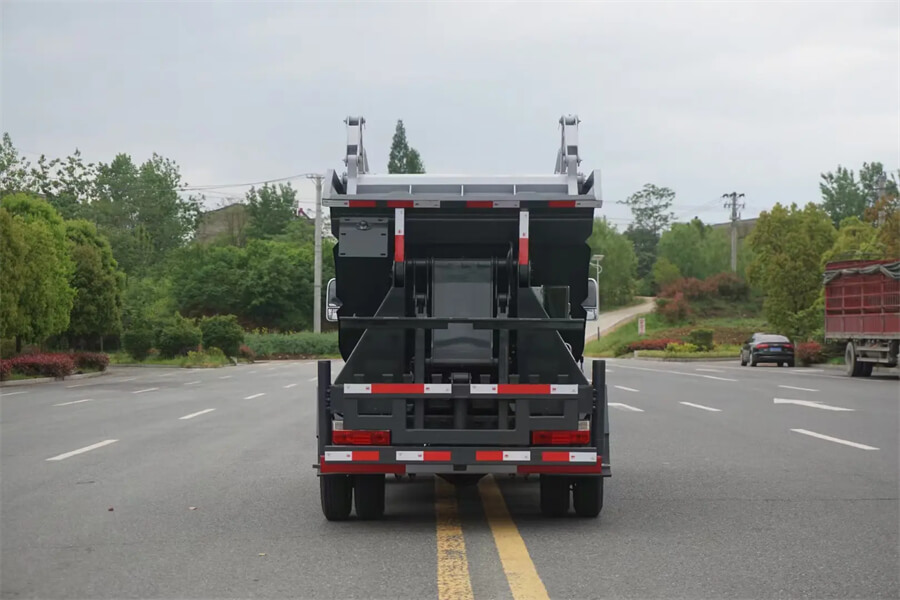

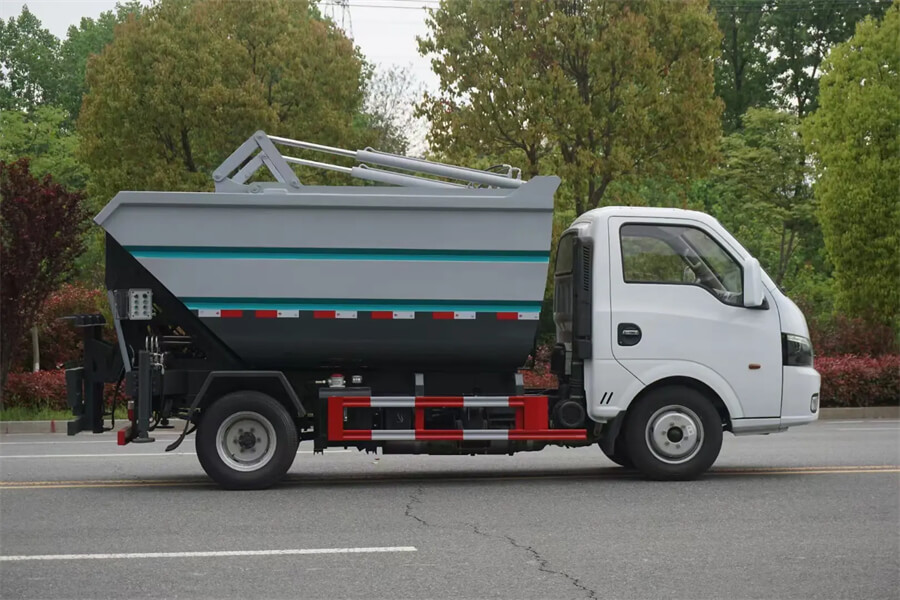

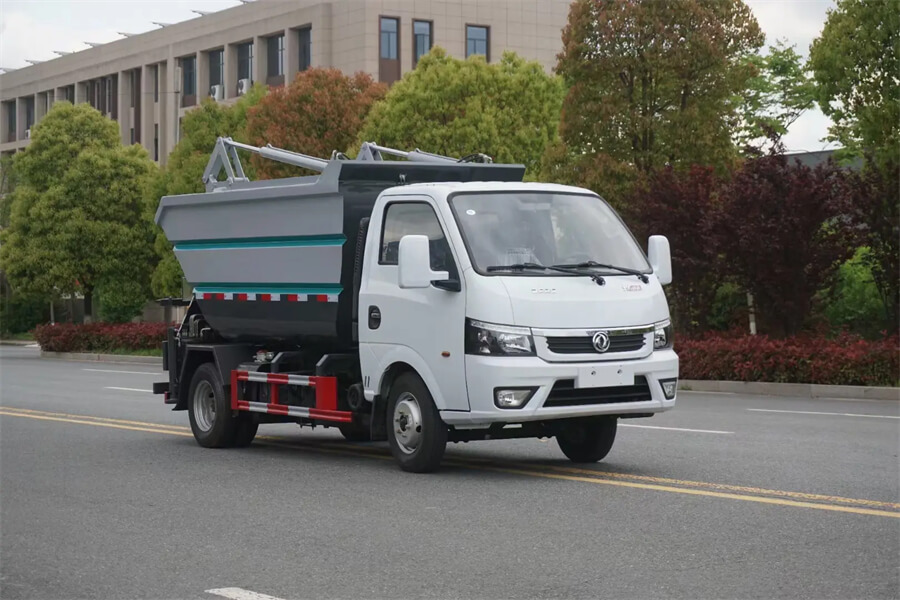

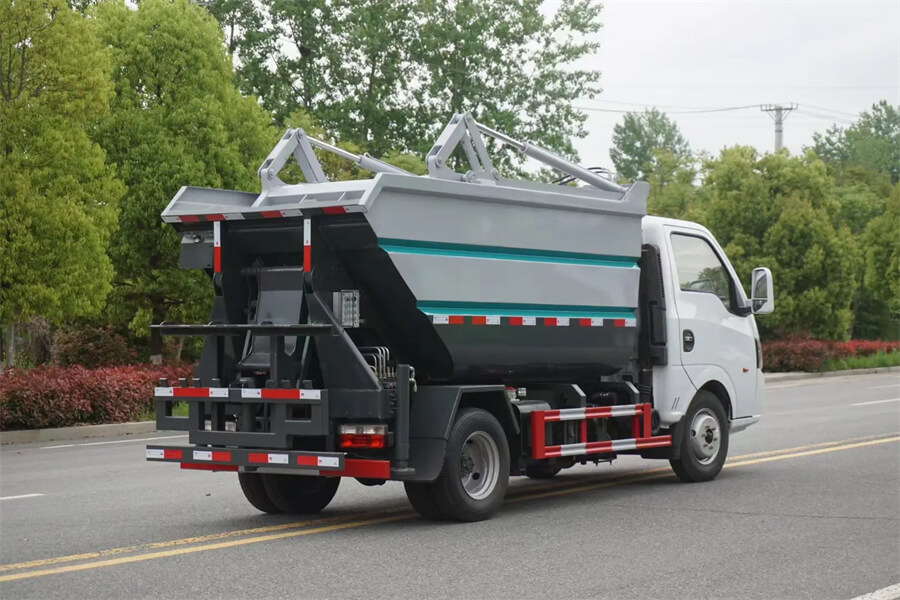

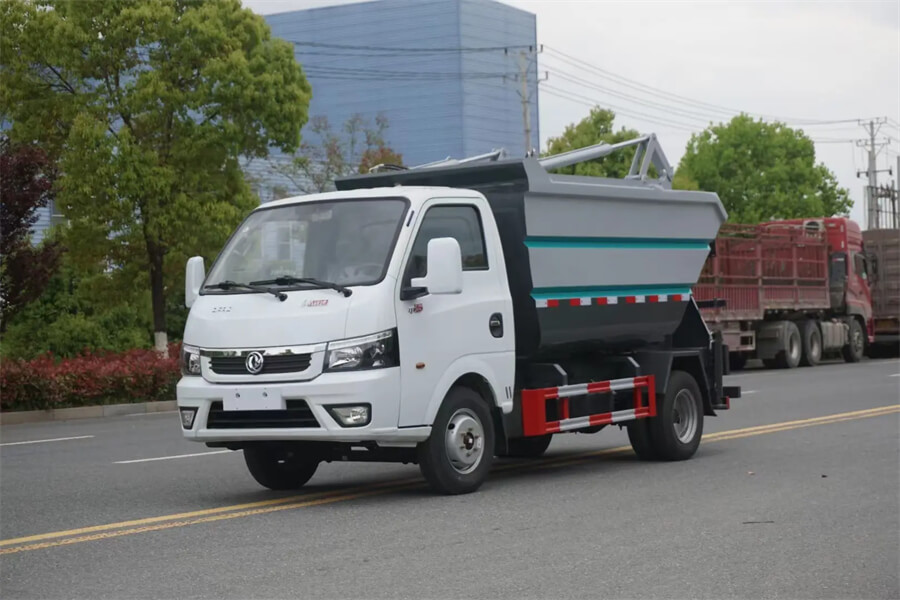

Mini with Rear Bin Lifter 3tons Refuse Collection Truck
Side loading garbage trucks are used primarily for household waste collection which are loaded from the side either manually or with the assistance of an automatic robotic arm that is controlled from inside the cab of the truck. Lift assist trucks are referred to as automated side loaders (ASL) which only require one operator and can service up to 1,500 homes a day.
The side-mounted compression Garbage Truck automatically pours the garbage into the garbage bin through the tie rod, and pushes the garbage to the rear of the car to achieve the purpose of compressing the garbage.The compression principle is to use the machine, electric and hydraulic linkage control system, computer control and manual operation. In the system, the garbage is poured, crushed or crushed by a device such as a filler and a shovel, and the garbage is squeezed into the compartment and compacted and pushed. Its characteristics are: large compression ratio,high load, and the load is equivalent to two and a half times the same tons of non-compressed garbage.
The hanging bucket type garbage truck is composed of a sealed garbage compartment, a hydraulic system and an operating system. It can be equipped with dozens of garbage bins to realize the joint operation of one car and multiple garbage cans. The hydraulic lifting device on the car body can hang the garbage bin. Up and down, up and down, up and down the working cycle time is 50S, the sealed body is environmentally friendly and can avoid secondary pollution. The self-installing hanging bucket device can directly hang the garbage bin on the roadside and use the hoist directly to the garbage bin to save the trouble of loading garbage.
1. Side Loading Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
2. Easy Full Automatic Operation: computer control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation working, greatly improves the working environment.
4. Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
Main feature
1. Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2. Garbage bin box size various from 5cbm, 6cbm,8cbm,10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm.
3. Garbage bin box material: high intense carton steel, from Well-known steel mills in China.
4. PLC control system from driver cabin and rear side of truck, easy operate by the workers.
Our Side Loader Garbage Truck has the features :
a. reasonable structure,simple and stable operation; High efficiency; Good sealing performance; Easy Dumping;

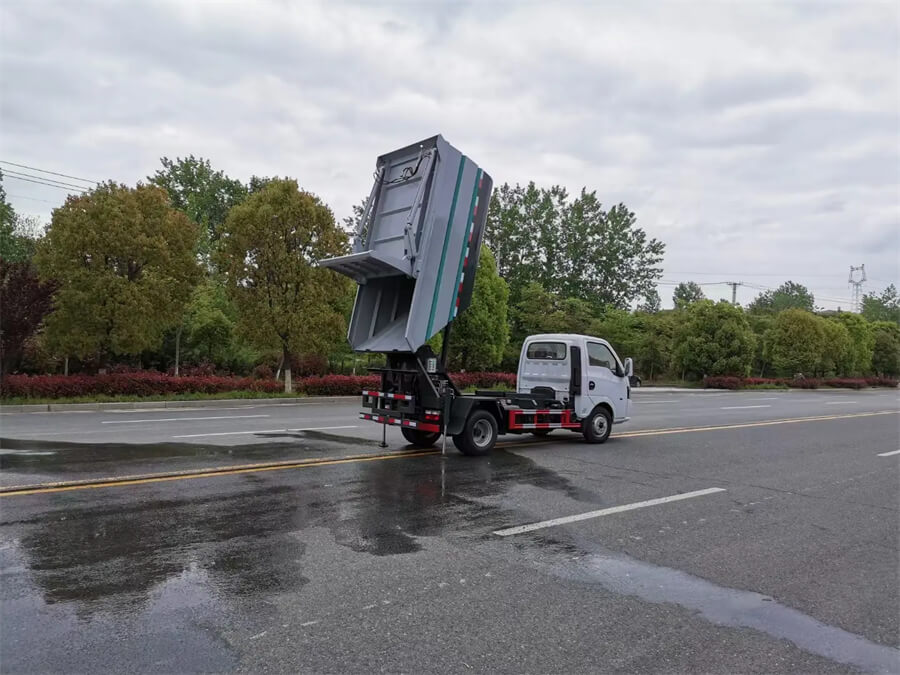

b. With dump function and hydraulic operation, very easy to collect the garbage;
c. Side-loading garbage truck is a truck can match dozens of garbage cans, realizing a truck and multiple garbage cans joint operation, circular transport, fully improve the transport capacity of the vehicle.
Chassis 机壳 Chassis Brand 底盘品牌 DONGFENG Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 2600 Tire Specifications 轮胎规格 6.50R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 5000×1900×2400 Air Conditioner空调 A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 5 Forwards & 1 Reverse , manual operated Max. driving speed(km/h) 最大速度 90 Engine 引擎 Model型号 Chaochai Horsepower(HP)马力 95 Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 4 Fuel type 燃料类型 Diesel Cabin 舱 2 Passengers,single row
