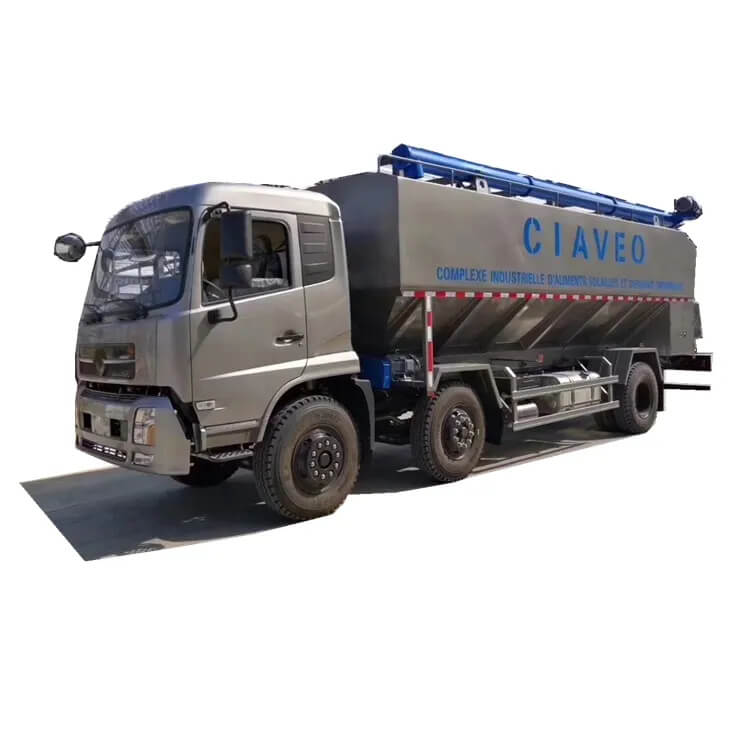

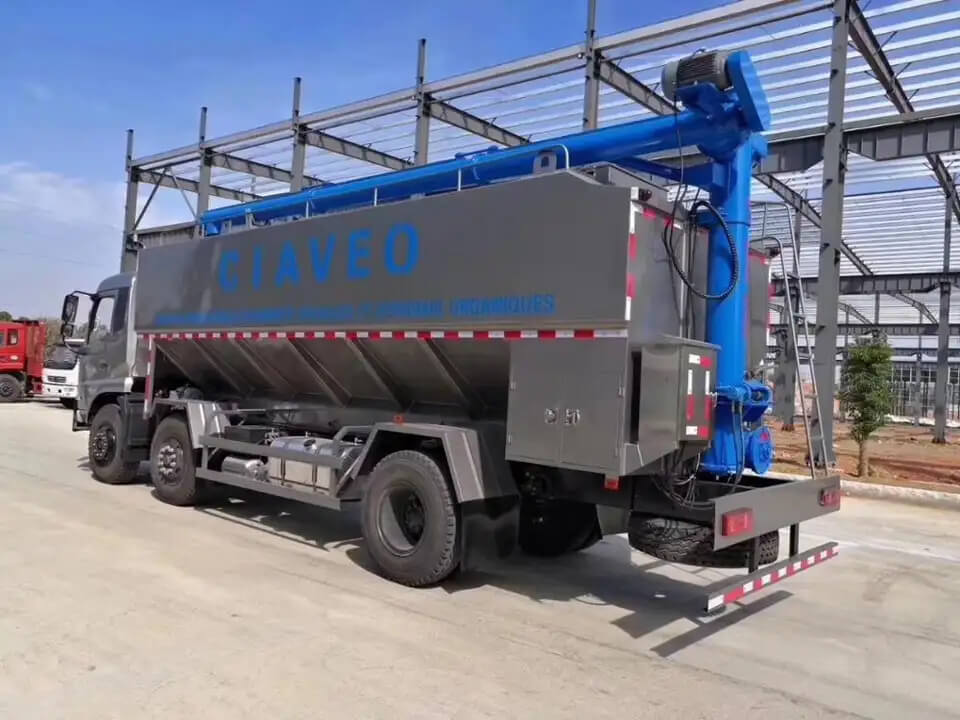

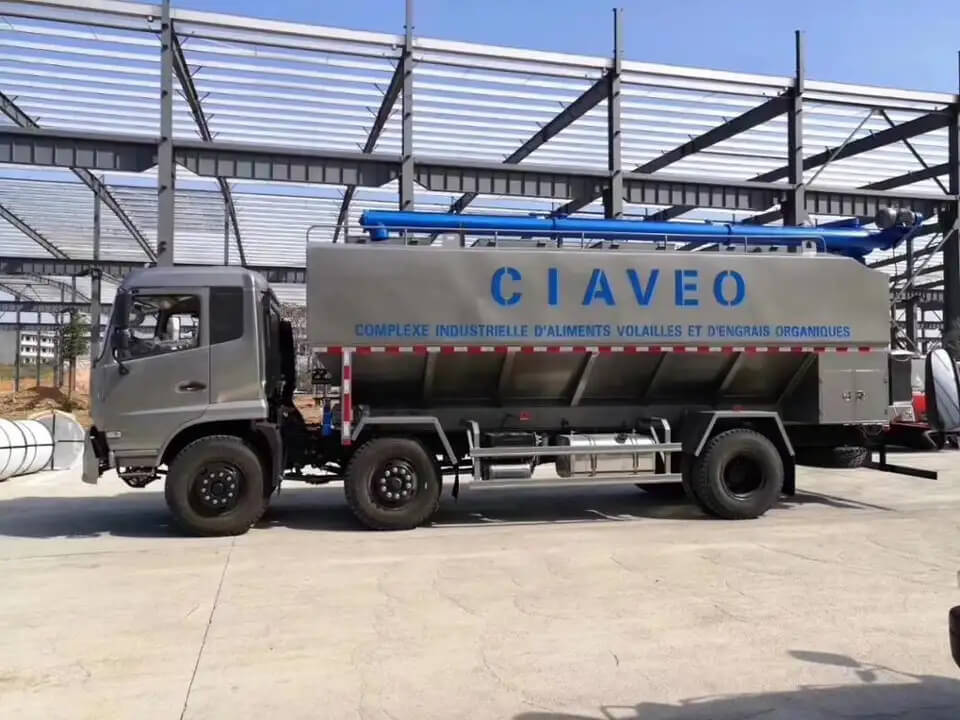

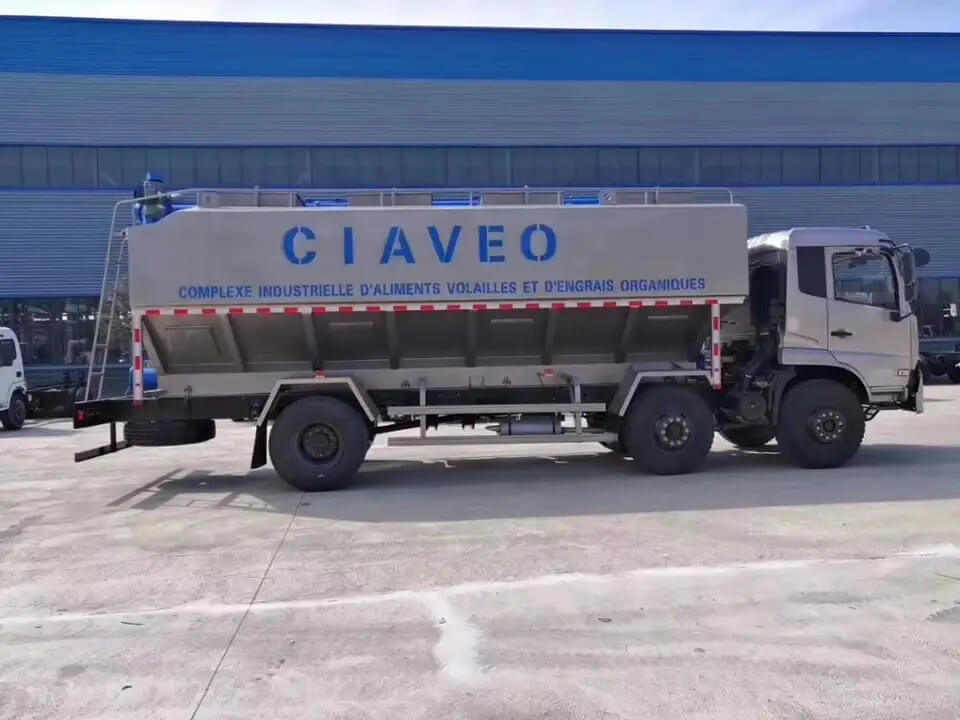

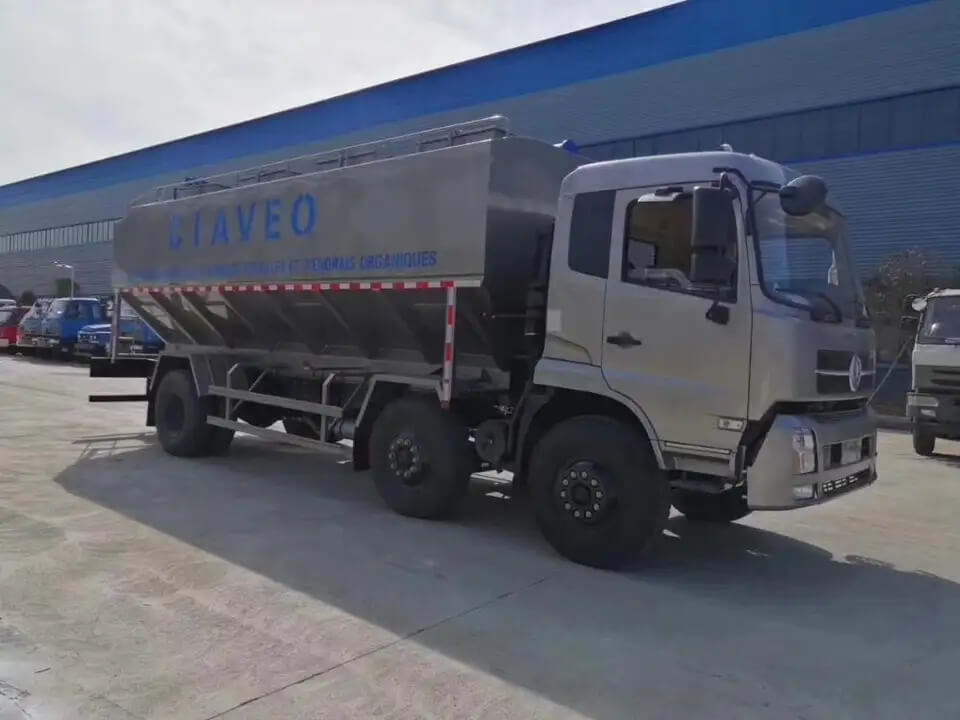

Dongfeng 6x2 20 cubic meters animal food poultry bulk transportation chicken feed truck
Bulk Feed Delivery Tanker Truck (Bulk Feed Truck), called bulk animal chicken feed transport Tank Truck, Bulk Feed Delivery Truck, bulk feed pellet truck, bulk-grain carrier, bulk forage truck etc. It is mainly used in the feed factory to livestock poultry farm and feed processing user or transport bulk raw grain feed finished feed production, at the same time it also can be used to transport some no corrosive powder and granular materials, such as pharmaceutical powder and grain circulation.
● Features
1. Bulk feed transport truck than packaged into bags of transport not only save labor, and the cost is lower, but requires livestock and poultry farms have a storage tank containing feed.
2. Bulk feed in the tank sealed conveying, reduce loss, ensure quality, avoid pollution. Automatic loading and unloading, continuous operation, greatly improve production efficiency.
3. Automatic hydraulic system, easy to operate and easy to use. Chassis adopts truck chassis, other parts, hydraulic pump, hydraulic motor and so on are standardized, imported hydraulic parts, to provide convenient conditions for maintenance.
4. The tank can be equipped with sub-bin, can transport a variety of different kinds of feed or puffing medium.
Transport medium: puffed and pellet feed, powder, corn, density is generally 0.5/ cubic.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO ,FAW,SINOTRUK,ISUZ U bulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
Paint process:
1. Physical and chemical shot blasting treatment of metal surface;
2. Crystal skin treatment;
3. Filling and filling soil with alloy putty;
4. Electrostatic powder coating;
5. Heat curing 200-220 ℃ high temperature baking;
6. Normal temperature cool down. (Acid and alkali resistant, high temperature resistant)
| Product name | Dongfeng 15 Ton feed truck |
| Cab | Flat top with sleeper,Dongfeng Tianjing D530 cab(Reversible, with sleeper, with air conditioning, airbag seat,electric window) |
| Engine horsepower (PS) | 190PS |
| Dimensions (mm) | 9000×2450×3800 |
| Van interior dimensions (mm) | 6050×2400×1900 |
| Gearbox | Shaanxi Faster 8 gearbox |
| Tire | 6,10.00R20 steel wire tires with spare tire |
| Power take-off interface | Have |
| Departure angle | Front:20,Rear :12 |
| Front/rear suspension (mm) | Front:1430,Rear :2570 |
| Suspension | Leaf spring 8/10+8 |
| Axle number | 2 |
| Engine | L190 30 Cummins |
| Braking System | Air brake |

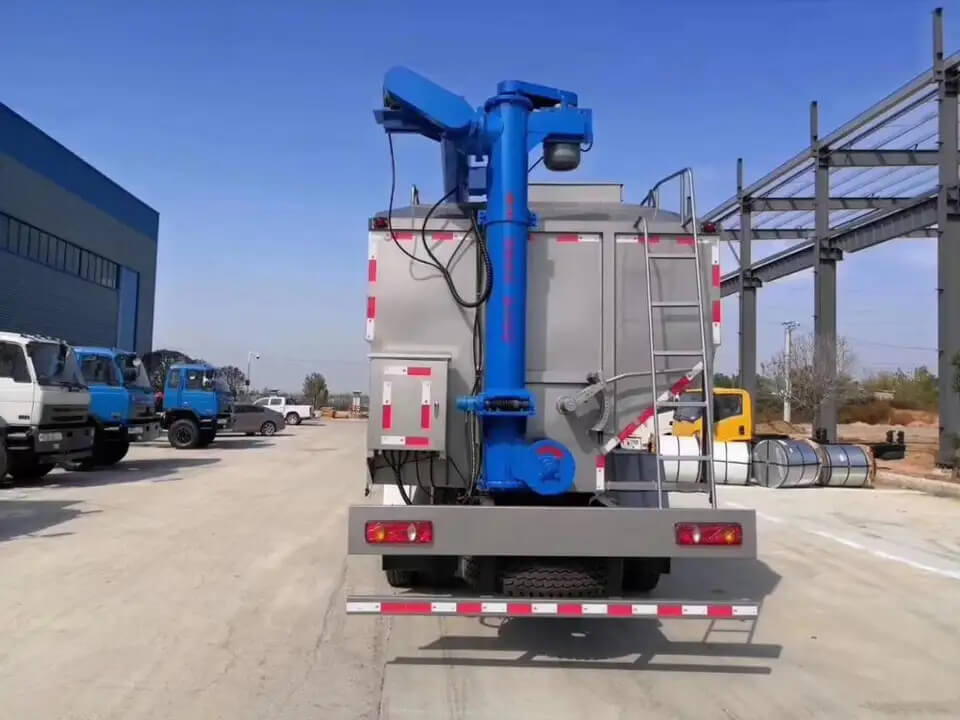

| Remarks: Bulk feed truck is transported by auger (blade rotation), horizontal auger (feeding 273mm at the bottom of flat tank), vertical auger (feeding 273mm), movable auger (top discharge 219mm) can be unilateral 180 Degree rotation and up and down lifting, discharge speed: 500-600 kg / min, the entire vehicle discharge time is about 15 minutes. The discharge horizontal distance is 6.0 meters and the vertical distance is 7.0 meters. The individual can complete the operation independently and freely rotate or lift. The electric auger type is newly developed for different customer groups and meets the new products in the low-end market. According to the actual situation of the user, it can choose electric auger type (three-phase 380V electric matching place) or hydraulic auger type (no three-phase electric place). ). The mechanical screw unloading method is adopted, the discharging speed is fast, and the operation can be continuously performed, thereby greatly improving the production efficiency. Feed truck special configuration: carbon steel standard tank, effective volume 20 square, can be loaded with 12 tons - 15 tons, electric auger unloading, electric auger connected to three-phase 380V to supply power, discharge pipe tilted 60 degrees, vertical unloading The material height is 8.6 meters, and the whole vehicle is discharged for 20 minutes. The standard is divided into 3 separate compartments; the three-phase 380-volt electric auger is used for unloading, and the discharge speed is 1 cubic meter or more per minute; it fully meets the filling needs of the feed tower of the breeding base! | |
Product Funtions
The bulk feed truck is mainly used to transport finished bulk feed or raw feed from feed mills to livestock farms and feed processing users. It can also be used to transport certain non-corrosive powder and granular raw materials, such as pharmaceutical mill powder and stock turnover.
1. Pellet feed is sealed and transported in the tank to reduce loss, avoid pollution and ensure quality.And can work continuously, improve efficiency.
2. Hydraulic pellet feed truck, fully automatic operation, no manual feeding and discharging.
3. Transporting feed in bulk saves labor and costs less than packing it in bags.
4. can be added into the tank bin, can transport a variety of different kinds of feed or expansion media.
FAQ
1. What is the term of delivery?
Answer: EXW, FOB, CIF.
2. What is the payment term?
Answer: FOB,CIF; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
