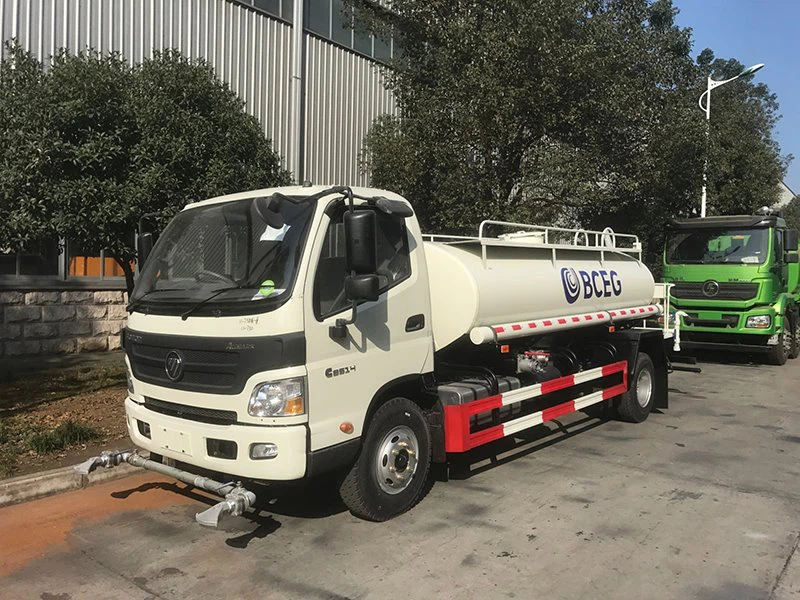

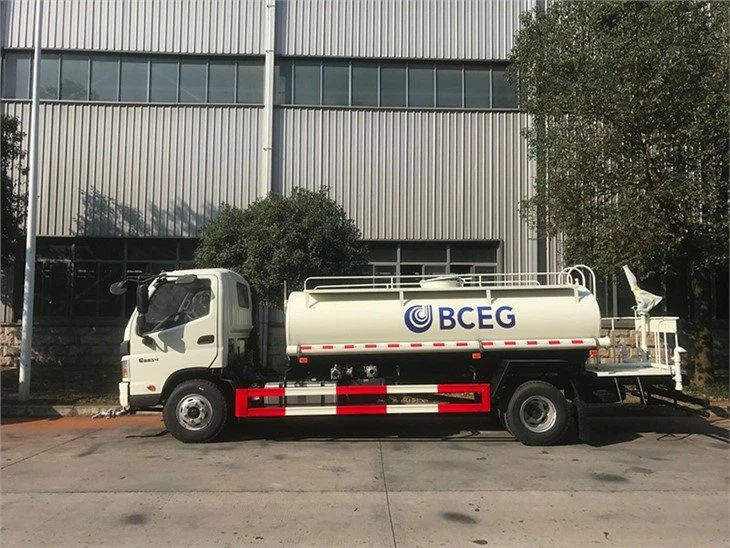

Foton 4x2 Left Hand Drive 5000L Water Sprinkler Truck
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
1. Optional chassis brand: Dongfeng, howo, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,aluminum，stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
5.2000–50,000 liters capacity
6.Tanks designed to carry potable and non-potable water
7. High quality, little maintenance, competitive price
8. Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
9. Numerous chassis available.
All of our tanks are fully customizable with an array of different component options available. Below are some of our standard customizations that are available. If you are looking for a more specific component for your tanker, please contact us to discuss your options. And get the details from Seller.
TRUCK CHASSIS
Chassis 机壳 Chassis Brand 底盘品牌 FOTON Drive Type 驱动类型 4×2 left/right hand drive Wheelbase(mm) 轴距 3800 Tire Specifications 轮胎规格 7.50R16 The Number of Tires 轮胎数量 6pcs with one spare tire Dimensions(mm) 尺寸 7000×2200×2650 Air Conditioner A/C Brake System 制动系统 Air break Steering Gear 转向装置 Power steering, hydraulic steering with power assistance Gear box 齿轮箱 6 Forwards & 1Reverse , manual operated Max. driving speed(km/h) 最大速度 95 Engine 引擎 Model型号 Weichai Horsepower(HP) 马力 170HP Emission standard 排放标准 Euro 2/3/4/5 Optional Cylinder No. 气缸数 Water-cooled four-stroke,, direct injection, turbocharged Fuel type 燃料类型 Diesel Cabin 舱 3 Passengers,single row
TANK SYSTEM
| Tank | Volume | 5m³ |
| Dimensions | Sectional shape: Elliptical | |
| Material & Thick | Material and thickness of tank body: Q235B carbon steel, 4mm | |
| Wave breaker | Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm | |
| Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | |
| Discharge port | 1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; | |
| Climb the ladder | Install independent climbing ladder at the end of the tank | |
| Top guard | Install hand guards on both sides of the tank top | |
| Level gauge | The front part of the tank, plexiglass | |
| Tube box | Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints | |
| Pump | Model | Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
| Limited Date | 40m³/h | |
| Lift | 45m | |
| Suction Depth | 6.5m | |
| Spraying | Control | manual |
| Spray type | Front flush, side spray, back spray | |
| Spraying width | not lower than 14m | |
| Spray gun range | not lower than 28m | |
| Platform | position | Rear of the tank |
