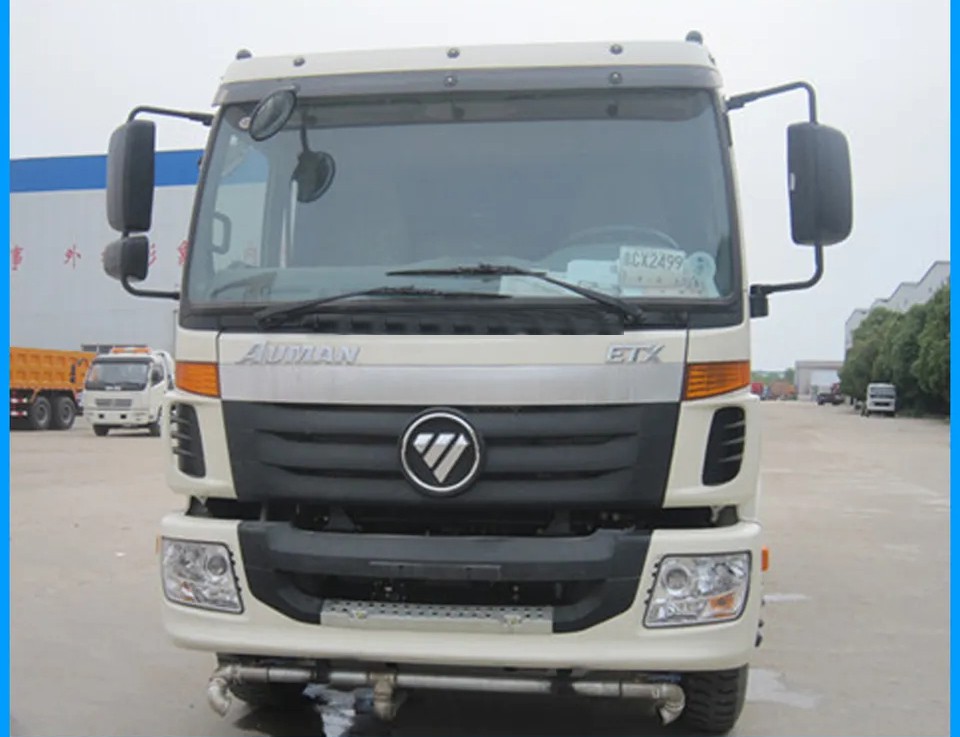

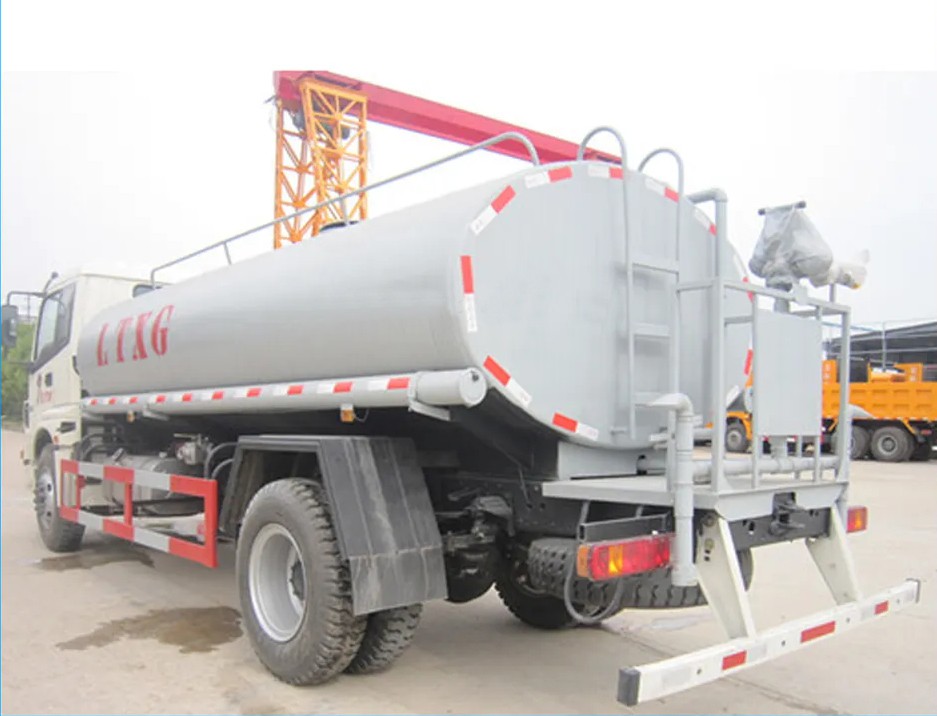

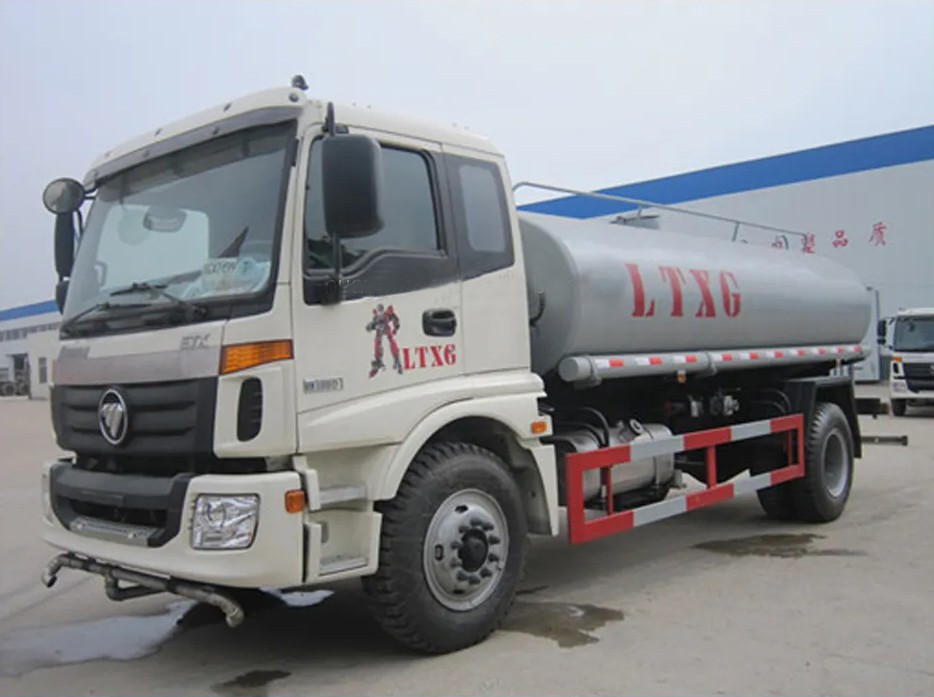

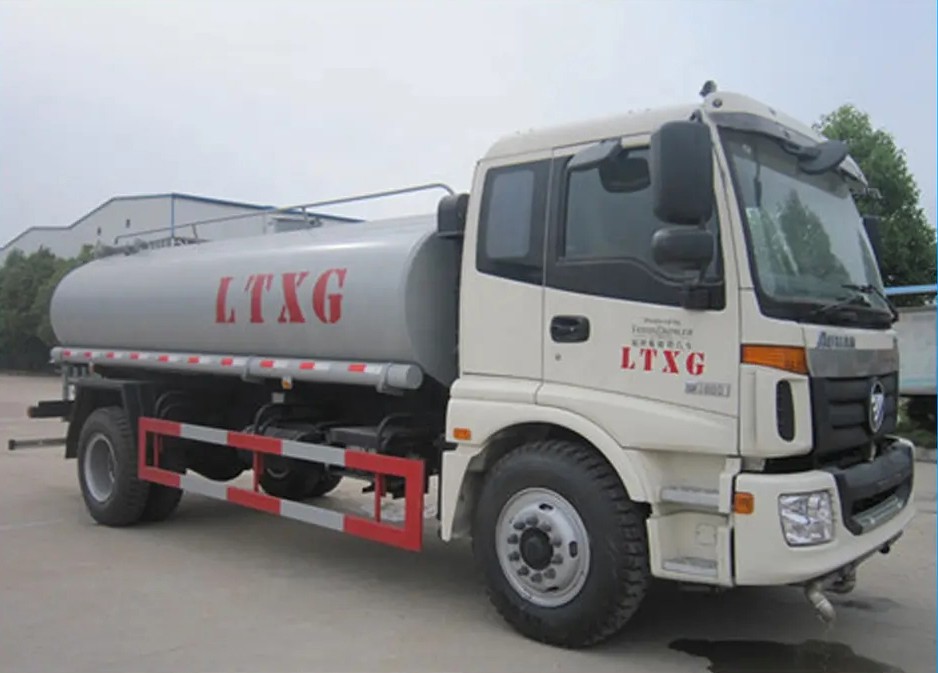

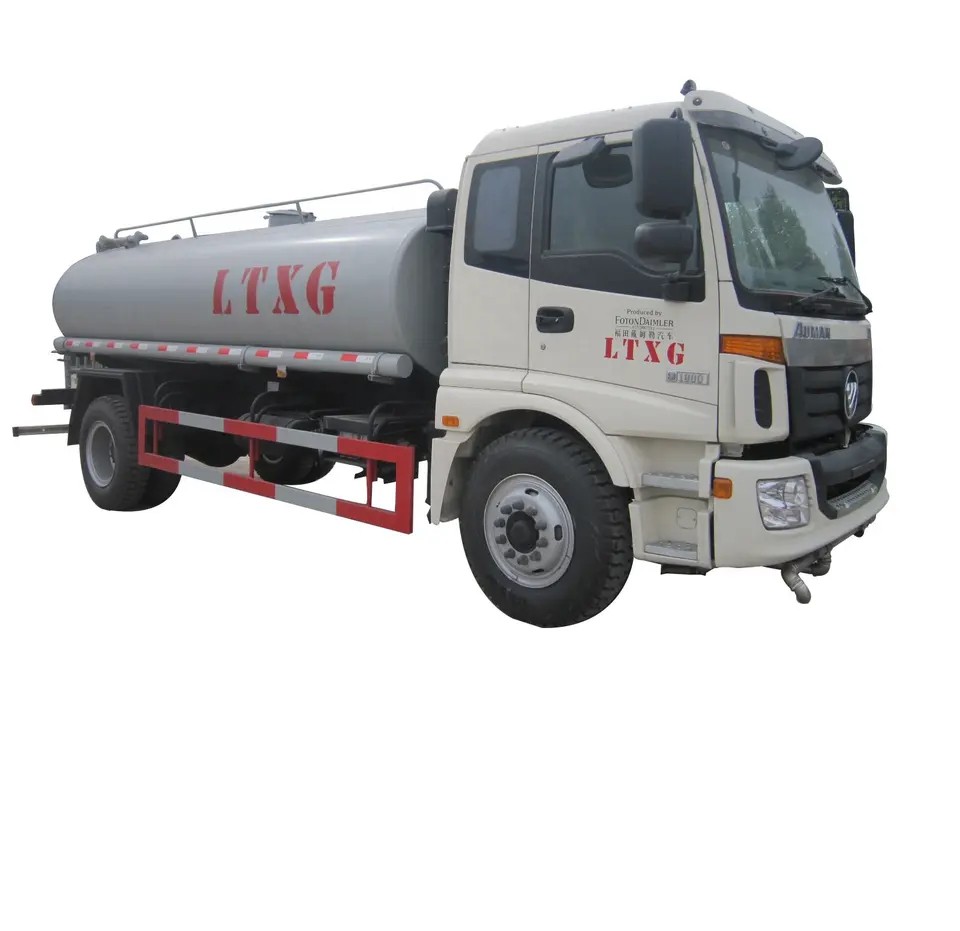

Foton High Quality 12000 Liters Water Sprinkler Truck 4x2 Mobile Watering Cart
Water bowser truck, is also called as the sprinkler, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
1. Optional chassis brand: Dongfeng, howo, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,aluminum，stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
5.2000–50,000 liters capacity
6.Tanks designed to carry potable and non-potable water
7. High quality, little maintenance, competitive price
8. Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
9. Numerous chassis available.
All of our tanks are fully customizable with an array of different component options available. Below are some of our standard customizations that are available. If you are looking for a more specific component for your tanker, please contact us to discuss your options. And get the details from Seller.
Detailed Specification for FOTON AUMAN TRUCK CHASSIS:
| Chassis 机壳 | Chassis Brand 底盘品牌 | FOTON |
| Drive Type 驱动类型 | 4×2 left/right hand drive
| |
| Wheelbase(mm) 轴距 | 4600 | |
| Tire Specifications 轮胎规格 | 11.00R20 | |
| The Number of Tires 轮胎数量 | 6pcs with one spare tire
| |
| Dimensions(mm) 尺寸 | 7500×2500×3250 | |
| Air Conditioner | A/C | |
| Brake System 制动系统 | Air break | |
| Steering Gear 转向装置 | Power steering, hydraulic steering with power assistance
| |
| Gear box 齿轮箱 | 9 Forwards & 1Reverse , manual operated
| |
| Max. driving speed(km/h) 最大速度 | 95 | |
| Engine 引擎 | Model型号 | Weichai |
| Horsepower(HP) 马力 | 270HP | |
| Emission standard 排放标准 | Euro 2/3/4/5 Optional | |
| Cylinder No. 气缸数 | 6 cylinders in-line, four strokes, water-cooled, turbo-charged intercooling, direct injection | |
| Fuel type 燃料类型 | Diesel | |
| Cabin 舱 | 1 Sleeper , 3 Passengers,single row
| |
Upper equipment for water fprinkler tanker with pump:
| Tank | Volume | 15m³ | |
| Dimensions | Sectional shape: oval | | |
| Tank material and thickness | The material and thickness of the tank body: Q235B carbon steel, 5mm; the material and thickness of the head: Q235B carbon steel, 5mm | | |
| Wave breaker | Quantity: 3 (no warehouse divided); material thickness: Q235B carbon steel, thickness 5mm | | |
| Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | | |
| Discharge port | One 2-inch self-draining port at the rear of the tank; one 2-inch pressure drain on the right side of the tank; one fire hydrant interface; | | |
| Climb the ladder | Welded independent climbing ladder at the tail of the tank | | |
| Top guard | Anti-skid walkways and aluminum alloy folding guardrails are installed on both sides of the top of the tank; anti-skid plates are installed on the top of the tank | | |
| Level gauge | The front part of the tank, plexiglass | | |
| Tube box | Pre-painting treatment: mechanical rust removal before painting | | |
| Water pump | model | Hangzhou Weilong self-priming sprinkler pump | |
| Limited Data | 50m³/h | | |
| Lift | 110m | | |
| Water absorption depth | 6.5m | | |
| PTO | High-speed power take-off | The modifier is responsible for the installation | |
| Spraying device | Spray type | Manual, with aluminum alloy high pressure spray gun | |
| Work platform | position | Tank tail, size: length 900mm, width 1500mm | |
| Toolbox | position | On the left side of the tank, there is a built-in roll of 20m fire belt with connecting shaft and spray gun | |
| Subframe | Material | Made of Q235 carbon steel plate | |
| Process requirements | Welding requirements | Adopt ternary gas shielded welding; ensure uniform and smooth welding seam, firm and reliable welding, no cracks, slag inclusion, welding penetration, welding leakage phenomenon, and prevent water leakage and water seepage | |
| | |||
| Painting requirements | Pre-painting treatment: mechanical rust removal before painting | |
FAQ
1. What is the term of delivery?
Answer: EXW, FOB, CIF.
2. What is the payment term?
Answer: FOB,CIF; T/T, 30% in advance and 70% balance before shipping.
3. How about the delivery time?
Answer: Commonly, it takes 15~35 days of production after the receipt of your advance down payment and 7 days for delivering after full payment.
4. What is the warranty time?
Answer: 12 month from the date of supply for vehicles; technical support and spare parts supply liftlong.
5. What is the packaging?
Answer: bulk ship, ro-ro ship, container ship, flat rack, etc.
Professional, economic and safe methods and measures to package trucks or equipments.
6. Can we supply samples if customers need sample in advance?
Answer: If we just right have the sample in stock, we can supply it for you. But the customer need pay for the cost.
7. How to establish a long term cooperation?
Answer: We try our best to guarantee great quality and good price policy for our old customers to ensure the benefits of our customers. Moreover, we respect every customer and sincerely do business, making friends with them, no matter who they are, wherer they are from.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
